1.Introduction

Industrial facilities today are increasingly located in some of the harshest environments on earth—from frozen warehouses in northern regions to scorching solar farms in deserts. In these settings, power interruptions are not just inconvenient; they are devastating. A brief grid failure can halt production lines, corrupt critical data, and even endanger human lives.

Standard commercial UPS units are typically rated for 0°C to 40°C and are not designed to survive extreme conditions.

Eaton, a global leader in power management, has developed industrial UPS solutions specifically for these demanding environments. Select Eaton models are rated to operate reliably from -40°C to +70°C. This article explains how Eaton industrial UPS systems work, what makes them suitable for extreme conditions, and why they are a trusted choice across industries.

2.What Is an Industrial UPS System and How Does It Work?

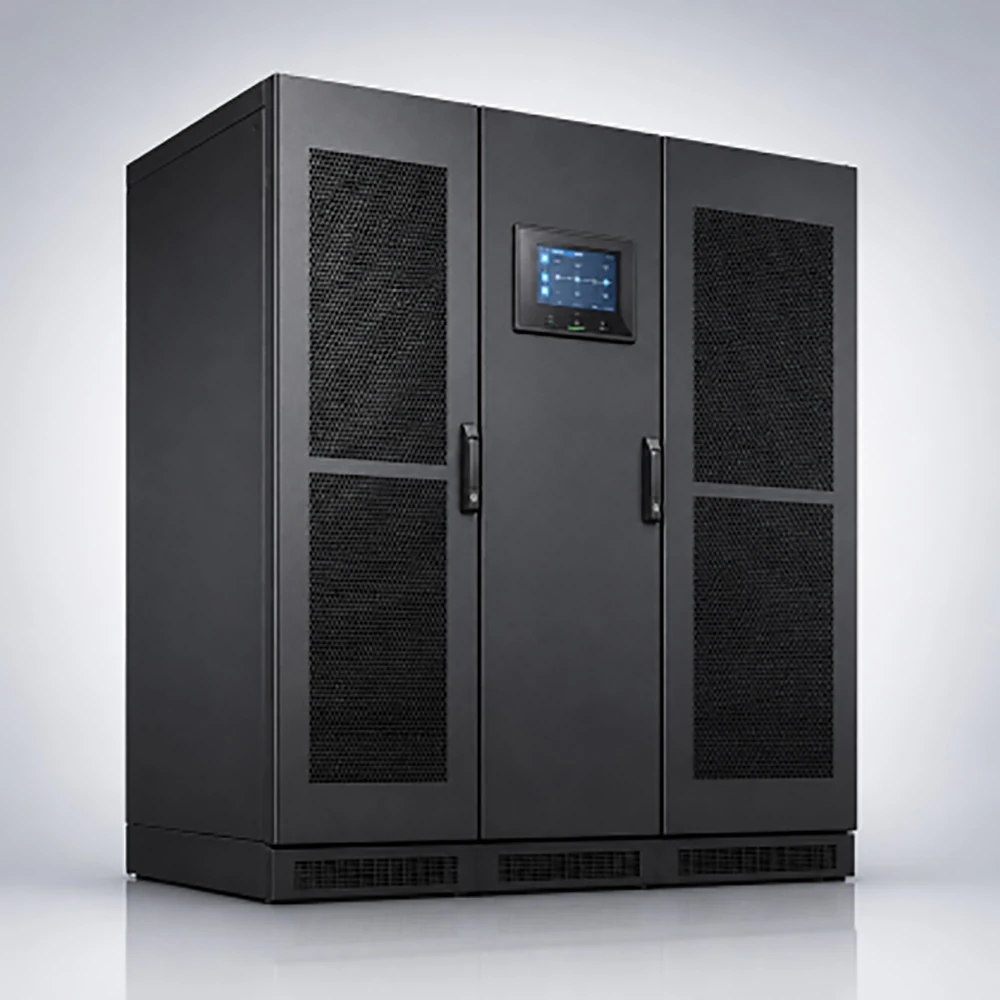

An industrial uninterruptible power supply (UPS) provides emergency backup power to critical loads when the primary power source fails. Unlike a standby generator that takes seconds to start, an industrial UPS responds in milliseconds—so sensitive equipment never experiences an interruption.

Eaton industrial UPS power supply operate primarily in online double-conversion mode. The process works as follows:

AC to DC conversion: Incoming utility AC power is converted to DC by a rectifier. This stage also charges the batteries.

DC to AC conversion: The DC power is then converted back to clean, stable AC by an inverter. This double-conversion process completely isolates connected loads from all input disturbances, including sags, surges, frequency shifts, and harmonics.

Battery backup: When utility power fails or falls outside acceptable parameters, the inverter immediately draws power from the batteries. Because the inverter is always running, there is zero transfer time—the load never sees any break.

Bypass protection: For maintenance or internal fault conditions, an automatic bypass safely transfers the load to utility power while the UPS is serviced.

The result is continuous, laboratory-grade power for sensitive industrial equipment. Eaton UPS systems achieve ±1% output voltage accuracy, ±0.1Hz frequency stability, and transfer times under 2 milliseconds.

Eaton differentiates itself through two key patented technologies:

• Three-level inverter topology – Reduces switching losses by 20% and achieves output total harmonic distortion (THD) below 3%.
• Hot Sync parallel technology – Allows multiple UPS units to operate in parallel without a separate parallel cabinet, simplifying installation and improving redundancy.

3.What Causes Power Instability in Extreme Industrial Environments?

Voltage fluctuations in industrial grids

Industrial power grids are rarely stable. Large machinery starting up causes sudden voltage sags. Welding equipment introduces harmonics. Remote sites often suffer from chronic brownouts. UPS Eaton systems are engineered to handle input voltage variations of ±25% as standard, with select models supporting up to ±30%. This wide input window allows the UPS to correct disturbances without unnecessarily draining the batteries.

Harsh environmental conditions (heat, cold, humidity, dust)

Extreme temperatures fundamentally change how electronic components behave. Below -20°C, electrolytic capacitors lose capacitance. Above 50°C, semiconductor leakage current doubles every 10°C. Humidity creates condensation that shorts circuit boards, while conductive dust can trigger electrical arcing. Standard UPS units rated for 0°C to 40°C simply cannot survive in these conditions. Eaton addresses these challenges with industrial-grade component selection, conformal coating on PCBs, and optional heating modules for sub-freezing operation.

Power interruptions in critical systems

A power interruption lasting just 20 milliseconds can crash a server or stop a precision CNC machine mid-cycle. In a hospital intensive care unit, a 10-second outage can endanger patient lives. Eaton UPS systems bridge these gaps with seamless battery backup, providing zero-transfer-time protection.

4.Why Industrial UPS Systems Are Essential for Mission-Critical Applications

Role of UPS in continuous power supply

An online double-conversion UPS continuously regenerates clean output power, isolating loads from all input anomalies. When utility power fails, the UPS instantly draws from its batteries. Eaton UPS systems deliver transfer times under 2 milliseconds—imperceptible to any industrial load.

Protection of sensitive industrial equipment

Voltage spikes and frequency drift damage power supplies, communication ports, and I/O modules. By delivering ±1% voltage accuracy and ±0.1Hz frequency stability, Eaton UPS systems transform dirty grid power into clean, reliable electricity.

Reducing downtime and operational losses

Downtime is extremely expensive. Two real-world Eaton case studies demonstrate this clearly:

Cross-border e-commerce data center: Before installing Eaton UPS, the facility experienced two server crashes per month due to grid fluctuations. Each outage cost over 500,000 RMB in lost business. After deploying an Eaton 93E modular UPS with N+1 redundancy, the results were: zero downtime, 30 minutes of backup power, 60% rack space savings, 180,000 RMB annual electricity savings, and 99.999% business continuity.

Large hospital ICU: By installing an Eaton 93PM UPS, the hospital eliminated grid-related disruptions to life-support equipment. The system has delivered three years of fault-free operation, directly protecting patient safety.

5.Key Technical Requirements for High-Performance Industrial UPS Systems

High conversion efficiency (up to 97%+)

Conversion efficiency directly impacts electricity bills and cooling costs. Eaton UPS systems achieve 96% or higher efficiency in double conversion mode, with select models reaching 97.5%. In Energy Saving System (ESS) mode, efficiency reaches 99%. For a 100kW load, this translates to approximately 15% annual electricity savings compared to less efficient alternatives.

Wide input voltage range (e.g., 120–275VAC)

Eaton UPS systems support an input voltage range of 120–275VAC as standard, adapting to ±25% grid fluctuations. Select Eaton models extend this to ±30%, making them ideal for sites with weak or unstable grid infrastructure.

Overload capacity and surge protection

Overload capacity: 125% load for 10 minutes, 150% load for 1 minute before transferring to bypass or shutting down.

Surge protection: Eaton’s patented AEGIS technology provides 100kA lightning strike protection at the input port—critical for outdoor telecom shelters and remote monitoring stations.

Intelligent battery management systems

Batteries are the most failure-prone component in any UPS. Eaton UPS systems feature intelligent charge and discharge management that extends battery life, monitors health, and prevents deep discharge damage. Eaton’s long-life battery options achieve 1,200 charge cycles, and core components are designed for a 10-year service life—two years longer than the industry average.

6.Wide Temperature Design: How Eaton UPS Systems Operate from -40°C to 70°C

Thermal design and heat dissipation systems

Eaton UPS systems employ advanced thermal design with intelligent fan control. For extreme environments, Eaton offers industrial-grade units with conformal coating on PCBs to prevent condensation damage. All Eaton industrial UPS systems use wide-temperature capacitors and industrial-grade IGBTs rated for harsh conditions.

Low-temperature start-up capability

Standard UPS batteries refuse to charge and may not deliver rated current below freezing. Eaton solves this with integrated heating modules and insulated battery enclosures on select models. At -30°C, Eaton UPS systems equipped with heating modules start up in under five seconds and maintain normal charge and discharge operation. This capability extends down to -40°C on specialized models.

Component-level industrial reinforcement

Ingress protection: IP21 standard with dust filters and anti-condensation coatings. Industrial-grade models offer optional IP31 upgrade.

Corrosion protection: Conformal coating on critical components and tin-plating on busbars for coastal or chemical facilities.

Outdoor and harsh environment adaptation

High-humidity sites can install optional dehumidification modules to prevent circuit board shorting. Eaton’s AEGIS surge protection, rated at 100kA, guards against lightning strikes—a critical feature for outdoor telecom shelters, wind turbines, and remote monitoring stations.

7.Energy Efficiency and Advanced Power Conversion Technology

Double conversion vs ECO mode efficiency

Double conversion mode: 96%+ efficiency, highest power quality, complete load isolation.

ESS (ECO) mode: Up to 99% efficiency. The UPS powers loads directly from utility when power is clean, switching to double conversion only when disturbances occur.

Energy-saving performance up to 99% in ECO mode

For facilities with reasonably stable grid power, Eaton’s ESS mode delivers dramatic savings. On a 100kW load, the difference between 96% and 99% efficiency saves approximately 26,000 kWh annually—reducing both electricity bills and carbon emissions.

Eaton’s performance benchmarks

Voltage accuracy: ±1%

Frequency stability: ±0.1Hz

Three-level inverter topology: 20% reduction in switching losses, THD below 3%

Hot Sync parallel technology: No separate parallel cabinet required

8.Industry Applications of Eaton Industrial UPS Systems

Data centers and server rooms

Data centers demand zero downtime and perfect power quality. Eaton UPS systems hold approximately 35% market share in the financial industry, primarily in bank data centers. Eaton rackmount UPS models in 1U, 2U, and 3U sizes fit standard 19-inch server cabinets, saving valuable floor space while delivering online double-conversion protection.

Telecommunications infrastructure

Telecom towers and switching centers often operate in remote, unconditioned environments. Eaton’s wide-temperature UPS systems with AEGIS surge protection keep cellular networks online during storms and grid failures.

Oil & gas and energy systems

Offshore platforms and pipeline monitoring stations face salt spray, vibration, and extreme temperatures. Eaton industrial UPS systems with conformal coating, corrosion-resistant busbars, and optional IP31 protection provide reliable backup power for safety systems and SCADA equipment.

Industrial automation and manufacturing plants

Automated production lines cannot tolerate power interruptions. Eaton UPS holds approximately 20% market share in manufacturing, particularly automotive assembly lines. The 10-year design life and 1,200-cycle batteries reduce maintenance frequency in high-throughput facilities.

Transportation and infrastructure systems

Railway signaling, airport navigation aids, and traffic management systems require UPS protection in exposed locations. Eaton’s wide-temperature operation and high ingress protection make these systems suitable for trackside cabinets and rooftop installations.

9.How Eaton Sets Industry Benchmarks

Eaton UPS systems feature several patented differentiators that set them apart:

• Three-level inverter topology (US8743521): Reduces switching losses by 20%, output THD below 3%
• AEGIS surge protection: 100kA lightning protection at input ports
• Hot Sync parallel technology: Multiple UPS units operate in parallel without a separate parallel cabinet, reducing installation complexity and cost

In terms of certifications, Eaton UPS systems hold UL 1778, CSA C22.2 No.107.1, CE, CB, TUV, and comply with IEC 62040 standards.

10.Choosing the Right Eaton Industrial UPS System for Your Project

Load capacity planning

Start by calculating the total load wattage of all connected devices. Divide that number by the UPS power factor (Eaton UPS supports 0.9 to 1.0 load power factor), then add 20-30% redundancy. For best battery life and efficiency, operate the UPS at 40-60% of its rated capacity. Eaton recommends selecting UPS capacity at 1.2 to 1.5 times total device power.

Environmental requirements

Conditioned server rooms: Standard 0-40°C rating is sufficient.

Warehouses, telecom huts, outdoor cabinets: Specify wide-temperature models with heating modules.

Coastal or chemical facilities: Request anti-corrosion coating and IP31 ingress protection.

Efficiency vs cost considerations

Eaton UPS systems have a higher initial purchase cost compared to some domestic brands. However, the total cost of ownership tells a different story:

25% lower total cost of ownership over the product lifetime (due to reduced maintenance and intelligent battery management)

10-year design life – two years longer than industry average

15% annual electricity savings compared to comparable online UPS units

Modular vs traditional UPS systems

Traditional monolithic UPS systems require full replacement when capacity upgrades are needed. Eaton modular UPS systems, such as the 93E and 93PM series, allow you to add power modules as loads grow. This approach reduces upfront investment, improves fault tolerance through N+1 redundancy, and simplifies maintenance—failed modules can be swapped without taking the entire UPS offline.

11.Conclusion: Ensuring Continuous Power in Extreme Conditions with Eaton

Extreme temperatures, voltage fluctuations, and environmental hazards are everyday realities for many industrial facilities. Standard commercial UPS systems are simply not designed to survive—let alone deliver reliable power—in these conditions.

Eaton industrial UPS systems provide proven, field-validated solutions:

• Wide input voltage range up to ±30%
• Double conversion efficiency above 96% (up to 99% in ESS mode)
• Overload capacity: 125% for 10 minutes, 150% for 1 minute
• Wide-temperature operation: -40°C to +70°C on select models

Real-world deployments tell the story best. In financial data centers (35% market share), hospital ICUs (three years of fault-free operation), and e-commerce server rooms (zero downtime after Eaton installation), properly specified Eaton UPS systems have eliminated downtime, protected sensitive equipment, and delivered rapid return on investment.

With a 10-year design life, 1,200-cycle batteries, and 25% lower total cost of ownership, Eaton is the right choice for projects where reliability cannot be compromised. Select an Eaton industrial UPS system that matches your environment, and keep your critical operations powered through any storm, heatwave, or freeze. If you are interested in our products, please feel free to contact us for a quote.

12.FAQ

Q1: How to install an Eaton rackmount UPS into a 19-inch cabinet?

A1: ① First, install the cabinet rails and adjust their position according to the depth of the UPS. ② Gently push the UPS into the rails and secure the front panel screws. ③ Connect the input power cable, output load cable, and battery cable. ④ Connect the ground wire, power on for testing, and confirm no alarms before putting the UPS into service.

Q2: What is the difference between an Online UPS and a rackmount UPS?

A2: An Online UPS is classified by its operating mode (double-conversion online type, which always provides pure power to the load). A rackmount UPS is classified by its installation form factor (designed to be installed in a standard equipment cabinet). Most rackmount UPS models are Online UPS units, offering both installation convenience and the high reliability of online double-conversion technology.

Q3: Can UPS units from different brands be used in parallel?

A3: Direct parallel operation is not recommended. Different brands use different parallel protocols and synchronization logic. Forcing different brands to run in parallel may cause uneven load sharing, excessive circulating current, and equipment damage. If redundancy is required, consider a dual-bus power supply solution or choose parallel-capable UPS units of the same brand and same model.

Q4: How to select the right UPS power rating for my application?

A4: First, calculate the total load wattage (W) of all connected equipment. Then divide that number by the UPS load power factor (typically 0.9 to 1.0) to obtain the required UPS power rating in VA. It is recommended to add 20-30% redundancy to avoid long-term full-load operation, which can shorten equipment life.
