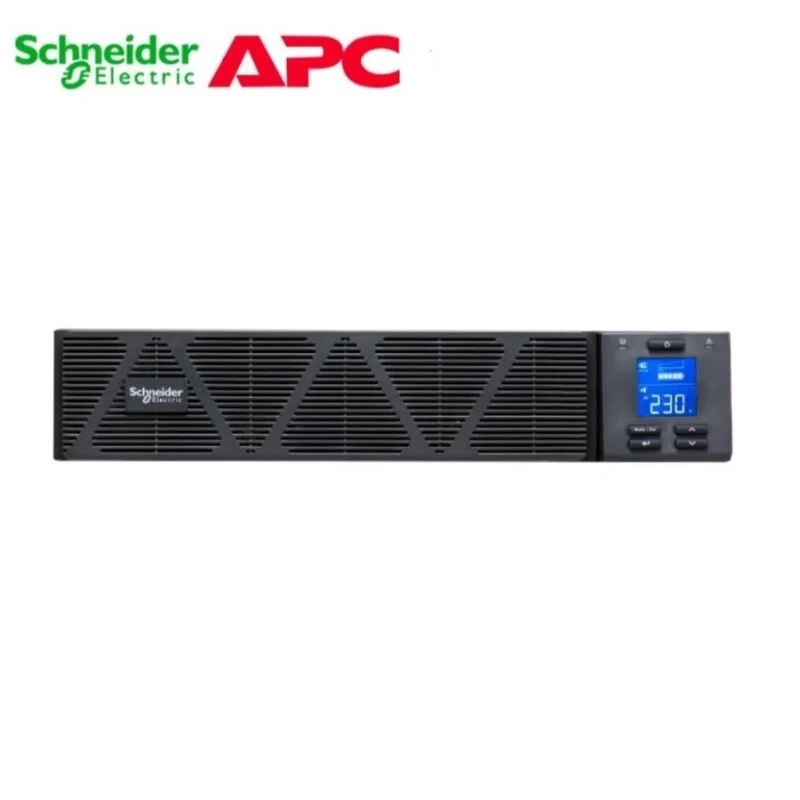

APC by Schneider Electric SP Series SPRM1K 1000VA/800W Online Rack UPS with Built-in Battery

The APC SP Series SPRM1K is a highly reliable 1kVA/800W Online Rackmount Uninterruptible Power Supply (UPS) engineered by Schneider Electric. Designed perfectly for standard 19-inch server racks (2U height), it utilizes advanced online double-conversion technology to deliver continuous, pure sine wave power to critical IT and communication equipment. Equipped with a built-in battery (9Ah × 2) and an ultra-wide input voltage range (110-300VAC), the SPRM1K ensures seamless backup power and professional-grade protection against all grid anomalies without unnecessarily draining battery life.

Key Functions and Features

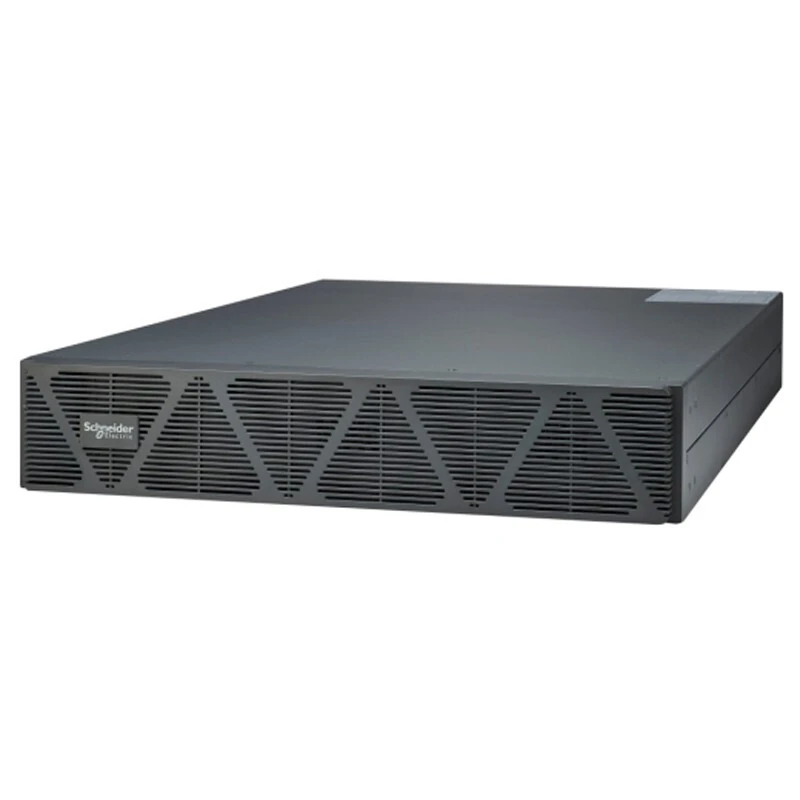

Space-Saving Rackmount Design

Standard Rack Form Factor: Features a compact 438 × 312 × 88 mm dimensions (2U height), easily integrating into standard server racks and IT network closets to save valuable floor space.

High Reliability & Power Protection

Online Double Conversion: Provides zero transfer time and pure sine wave output, thoroughly isolating your sensitive loads from power interruptions, surges, and distortions.

Wide Input Voltage: Supports a remarkable input voltage range of 110-300VAC, maintaining stable output in harsh power environments and extending overall battery life.

Excellent Energy Efficiency

High Performance: Delivers an output power factor of 0.8 and achieves an overall efficiency of 88%, reducing operational energy costs.

Input Optimization: Boasts an input power factor of ≥0.95, significantly reducing interference and pollution to the main power grid.

Intelligent Management & Display

LCD Interface: Comes with an intuitive LCD screen for quick status monitoring and easy parameter configuration.

Comprehensive Connectivity: Features standard RS232 and USB interfaces. A smart card slot is also available for optional SNMP cards, Modbus cards, and environmental monitoring cards for remote networking.

Technical Specifications

Specifications	SPRM1K (Main Model)	SPRM1KL (Long Backup)	SPRM2K (Reference)
Output Power	800 W / 1000 VA	800 W / 1000 VA	1600 W / 2000 VA
Input Voltage Range	110 - 300 VAC	110 - 300 VAC	110 - 300 VAC
Output Voltage	220(Default) / 230 / 240 VAC	220/230/240 VAC	220/230/240 VAC
Output Waveform	Online double conversion, Pure sine wave	Pure sine wave	Pure sine wave
Built-in Battery	9Ah × 2 (24V)	N/A (External)	9Ah × 4 (48V)
Charging Time	Charges to 90% in 4 hours	N/A	Charges to 90% in 4 hours
Backup Time (Full Load)	> 4 minutes	Depends on external battery	> 4 minutes

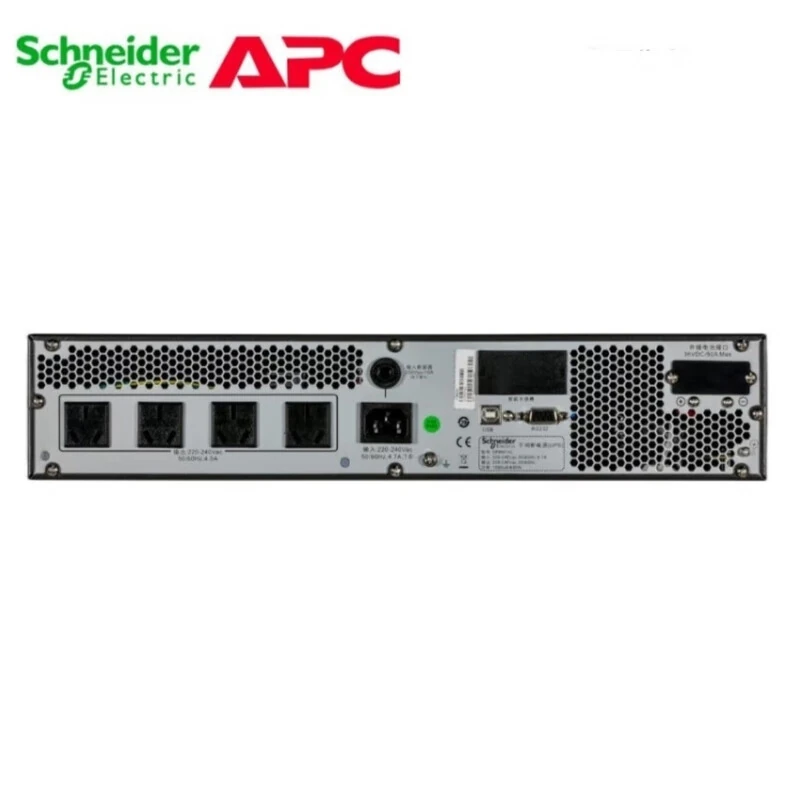

Output Terminals	National standard sockets × 4	National standard sockets × 4	National standard sockets × 4
Input Terminals / Protection	IEC C14 / 10A protector	IEC C14 / 10A protector	IEC C20 / 16A protector
Display & Interface	LCD / RS232 / USB / Smart Slot	LCD / RS232 / USB / Smart Slot	LCD / RS232 / USB / Smart Slot
Dimensions (W×D×H)	438 × 312 × 88 mm	438 × 332 × 88 mm	438 × 462 × 88 mm
Net Weight	11 kg	6.3 kg	18.2 kg

Wide Range of Applications

The APC SP Series SPRM1K provides robust, rack-optimized power protection, making it highly suitable for:

Data Centers & Server Rooms: Protecting critical 19-inch rack-mounted servers, storage arrays, and network switches.

Telecommunications: Providing clean, continuous power for communication base stations and routing equipment.

Industrial Automation: Safeguarding rack-mounted industrial control systems (PLCs) in harsh electrical environments.

Security & Lighting: Backing up essential security camera hubs and emergency classification lighting systems.

Our Factory

apc back ups family bk500m ch 500va/300w standby ups with built in battery

Our Certifcate

Exhibition

Packaging & Shipping

Frequently Asked Questions (FAQ)

Q1: What does “Rack Type” mean, and what are the dimensions of the SPRM1K?

A: “Rack Type” means the UPS is designed to be horizontally mounted inside standard 19-inch IT racks. The exact dimensions of the SPRM1K are 438 × 312 × 88 mm, which translates to a standard 2U rack height.

Q2: Does the SPRM1K model include a built-in battery?

A: Yes, the SPRM1K comes equipped with a built-in battery system (9Ah × 2, 24V), providing over 4 minutes of backup time under full load. It charges to 90% capacity in just 4 hours.

Q3: What kind of power output does this UPS provide?

A: It utilizes an online double-conversion topology to output a pure sine wave. This means it constantly filters the raw grid power, resulting in zero transfer time and ultimate protection for sensitive IT and medical equipment.

Q4: Can this UPS be monitored remotely?

A: Absolutely. It comes standard with an LCD interface, RS232, and USB communication ports. You can also insert optional SNMP, Modbus, or dry node cards into its Smart card slot for advanced network monitoring and automated shutdown.

Q5: What are the packaging weight and HS Code for export?

A: The UPS has a net weight of 11 kg and is packed securely in a carton box with a gross weight of 13.1 kg and package dimensions of 21.8 × 55 × 45.5 cm. The official HS Code is 8504402000.
