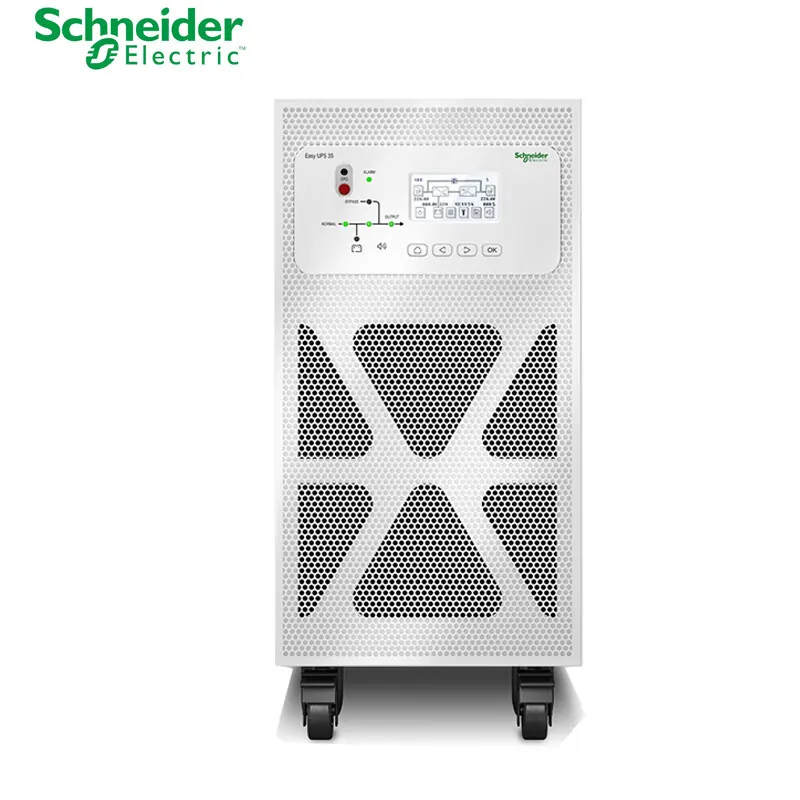

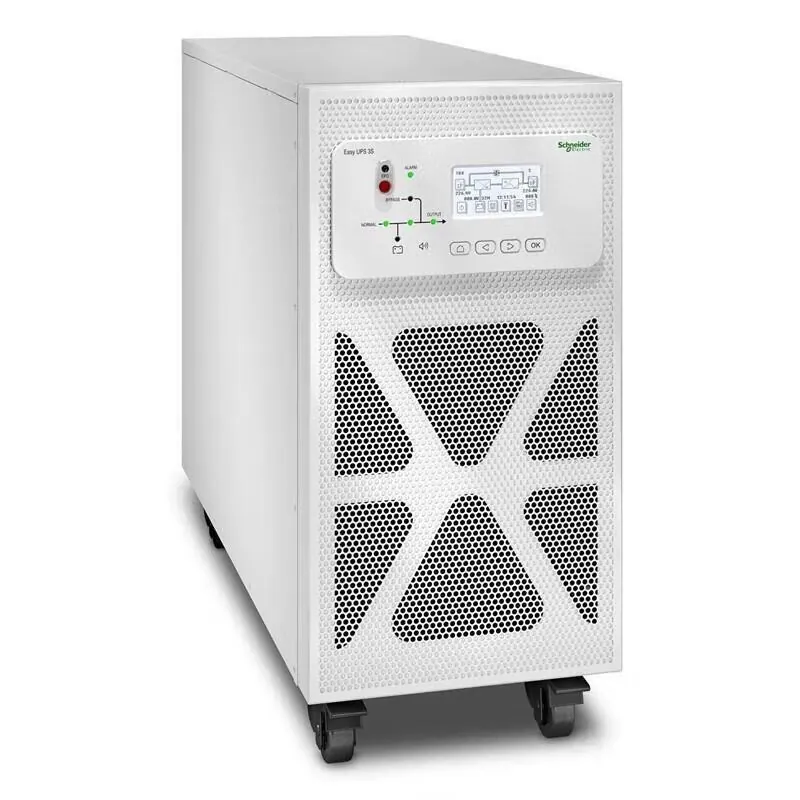

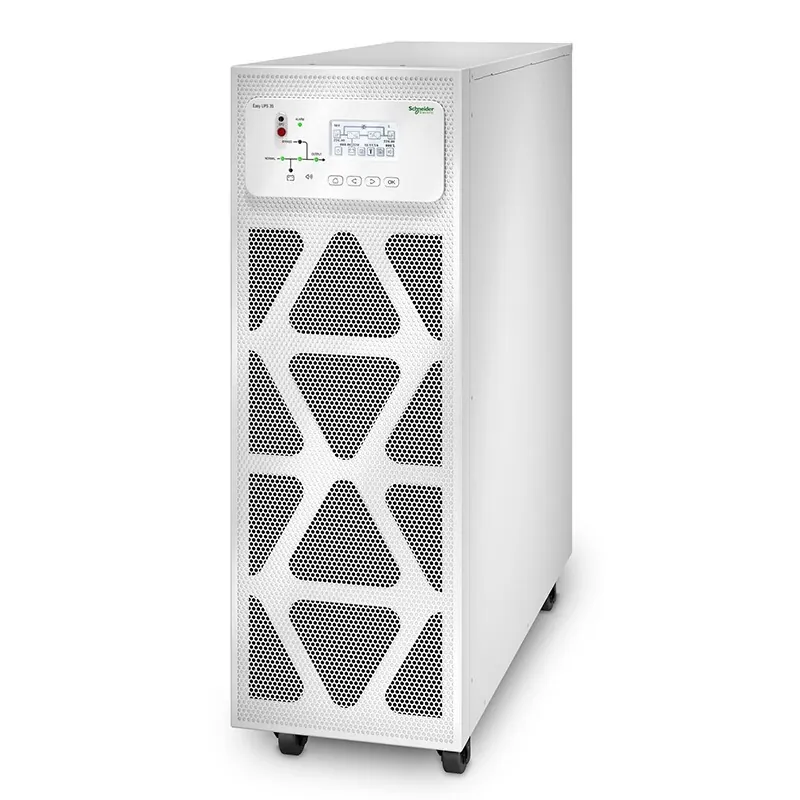

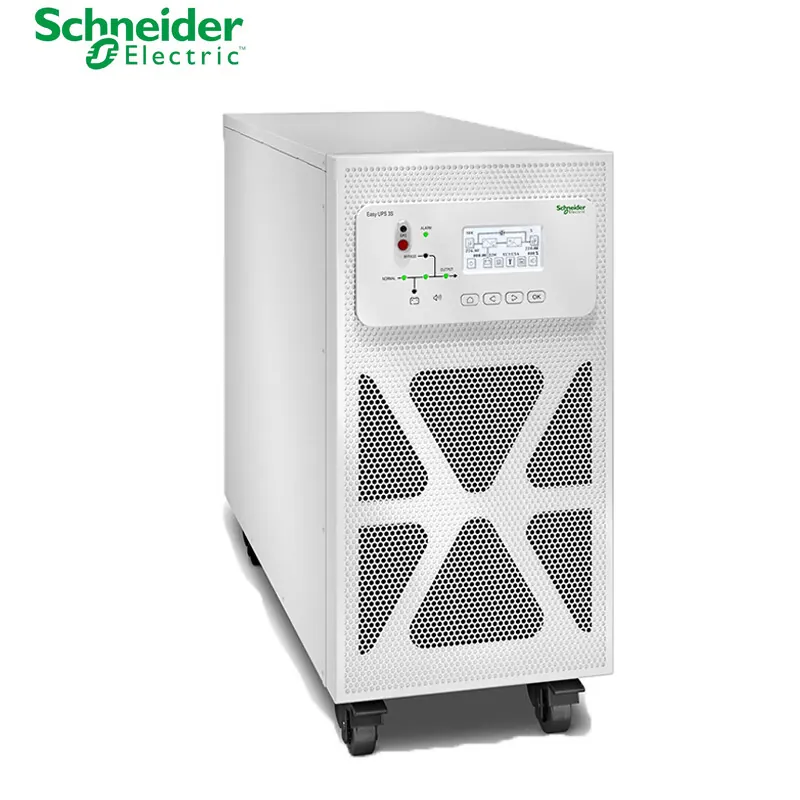

APC Easy UPS 3S 10kVA 10kW 400V 3:3 Online UPS (E3SUPS10KH) | Without Battery

The APC Easy UPS 3S E3SUPS10KH is a high-performance, 3-phase 10kVA/10kW Online Double Conversion UPS designed to deliver advanced power stability and business continuity for small to medium enterprises. As a “Without Battery” model within the Schneider Electric Galaxy family, it provides maximum flexibility for customized backup runtimes via external battery cabinets, while its unity power factor (PF=1.0) and compact footprint ensure industry-leading energy efficiency and space-saving installation in data centers, manufacturing facilities, and commercial environments.

Key Functions and Features

Unity Power Factor (PF=1.0): Delivers 10kW of real power for every 10kVA of capacity, allowing you to support more equipment than UPS systems with lower power factors.

High Energy Efficiency: Achieves up to 96% efficiency in double conversion mode and up to 99% in ECO mode, significantly reducing electricity costs and heat dissipation.

Compact & Lightweight Footprint: At only 250mm wide and weighing 36kg, it is engineered for rapid installation in tight spaces like edge computing hubs or small server rooms.

Robust Protection for Harsh Environments: Includes conformal coating on internal PCBA boards and a replaceable dust filter, ensuring reliability in industrial or dusty settings (IP20).

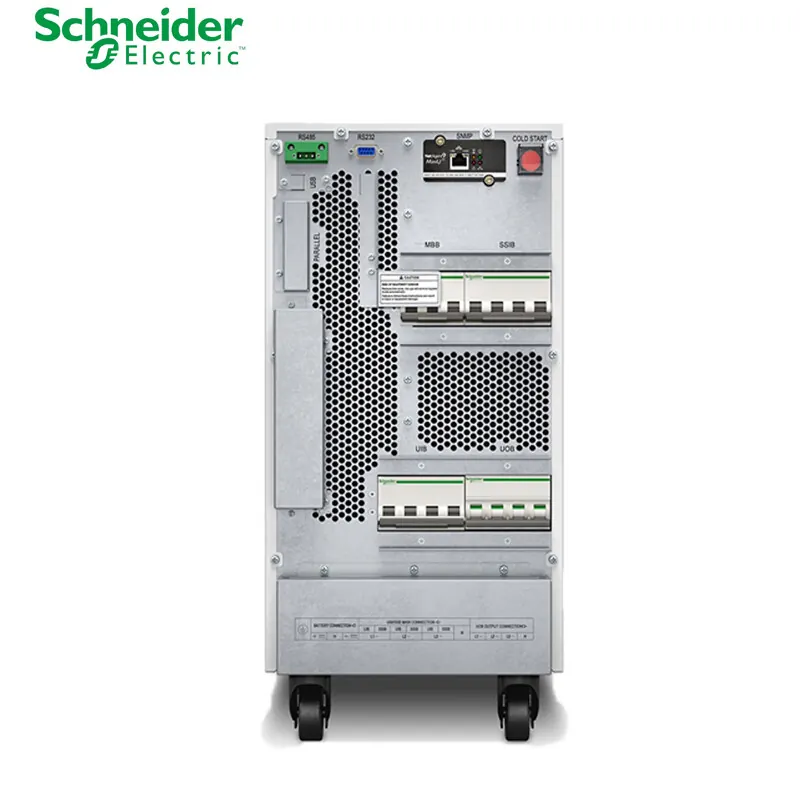

Smart Remote Management: Equipped with RS485 and USB ports, and supports an optional SNMP card for 24/7 remote monitoring and alerts via EcoStruxure IT software.

Parallel for Capacity & Redundancy: Supports parallel connection of up to 6 units, providing excellent scalability for growing power demands.

Technical Specifications

Specification Item	Technical Detail (E3SUPS10KH)
Brand	APC by Schneider Electric
Model Number	E3SUPS10KH
Power Capacity	10kVA / 10kW (PF 1.0)
UPS Topology	Online Double Conversion
Input Voltage	380V / 400V / 415V (3-Phase + Neutral)
Input Frequency Range	45Hz - 70Hz
Output Voltage	380V / 400V / 415V (3:3 Phase)
Maximum Efficiency	96% (Online Mode) / 99% (ECO Mode)
Overload Capacity	125% for 10 min / 150% for 1 min
Battery Configuration	External Battery System (Without Internal Battery)
Communication	RS485, USB, Dry Contact (SNMP Optional)
User Interface	Multifunctional LCD Status and Control Panel
Operating Temperature	0°C to 40°C
Dimensions (W x D x H)	250 x 700 x 530 mm
Net Weight / Gross Weight	36 kg / 50 kg
Ingress Protection	IP20
Compliance & Safety	CE, RCM, EAC, TUV, IEC 62040-1/2/3/4

Wide Range of Applications

The APC Easy UPS 3S is a versatile power protection solution suitable for:

Small & Medium Data Centers: Ensures 24/7 uptime for server racks and network storage.

Industrial Manufacturing: Protects automated production lines, CNC machines, and control systems.

Healthcare: Provides reliable backup for medical imaging (MRI/CT scans) and lab diagnostic equipment.

Telecommunications: Ideal for 5G base stations, communication hubs, and network switching centers.

Commercial Infrastructure: Powers life-safety systems, security cameras, and HVAC controls in offices or malls.

Our Factory

apc back ups family bk500m ch 500va/300w standby ups with built in battery

Our Certifcate

Exhibition

Packaging & Shipping

Frequently Asked Questions (FAQ)

Q1: Does the APC E3SUPS10KH include internal batteries?

A: No, the E3SUPS10KH is the “Without Battery” model. It is designed to work with external battery cabinets, giving you the freedom to choose the battery capacity for your required backup time.

Q2: What are the benefits of a 1.0 Power Factor (kVA=kW)?

A: It means this 10kVA UPS provides a full 10kW of power. Traditional UPS units with a 0.8 PF would only provide 8kW. You get more usable power for the same footprint.

Q3: Can this UPS be used in dusty factory environments?

A: Yes. It comes standard with a replaceable dust filter and conformal coating on its circuit boards to protect against contaminants and humidity.

Q4: How do I monitor the UPS status remotely?

A: You can install an optional SNMP card which allows you to monitor the UPS via a web browser or the EcoStruxure IT mobile app.

Q5: Is it possible to expand the power system later?

A: Yes, the Easy UPS 3S supports parallel redundancy, allowing you to connect up to 6 units together for increased capacity or N+1 redundancy.
