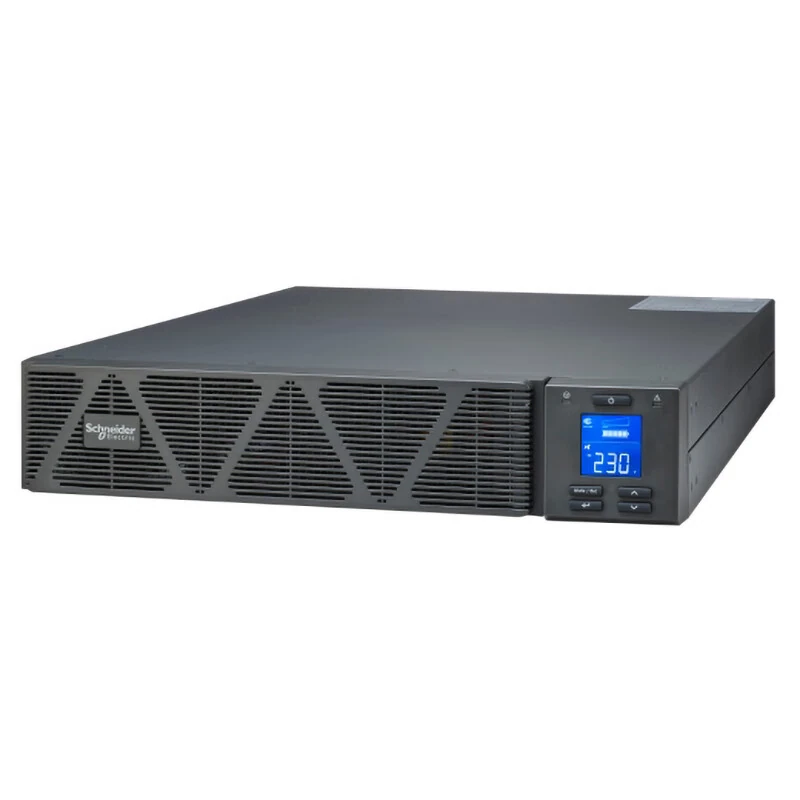

APC by Schneider Electric SP Series SPRM1KL 1000VA/800W Online Rack UPS (Long Backup / Without Battery)

The APC SP Series SPRM1KL is a professional-grade 1kVA/800W Online Rackmount Uninterruptible Power Supply (UPS) engineered by Schneider Electric. As a dedicated Long Backup model (Without Built-in Battery), it is designed to connect seamlessly to an external 36V battery bank, allowing enterprise users to scale their backup runtime from minutes to hours. Fitting perfectly into standard 19-inch IT server racks (2U height), it utilizes advanced online double-conversion technology to deliver continuous, pure sine wave power. With an ultra-wide input voltage range (110-300VAC), the SPRM1KL offers ultimate power protection and flexibility for communication networks, data centers, and critical lighting systems.

Key Functions and Features

Customizable Long-Duration Backup

External Battery Configuration: Designed specifically for extended runtime needs, this model connects to an external 36V battery system. The backup time depends entirely on the capacity of your external battery bank, offering limitless scalability for mission-critical operations.

Space-Saving Rackmount Design

Standard Rack Integration: Features a compact 438 × 332 × 88 mm chassis (2U height), ensuring it mounts effortlessly into standard server racks and IT network closets, optimizing valuable floor space.

High Reliability & Pure Power

Online Double Conversion: Provides zero transfer time and pure sine wave output, completely isolating sensitive servers and routers from power interruptions, voltage sags, and surges.

Wide Input Voltage: Supports an exceptional input range of 110-300VAC, maintaining stable operation in areas with highly unstable power grids.

Intelligent Management & Display

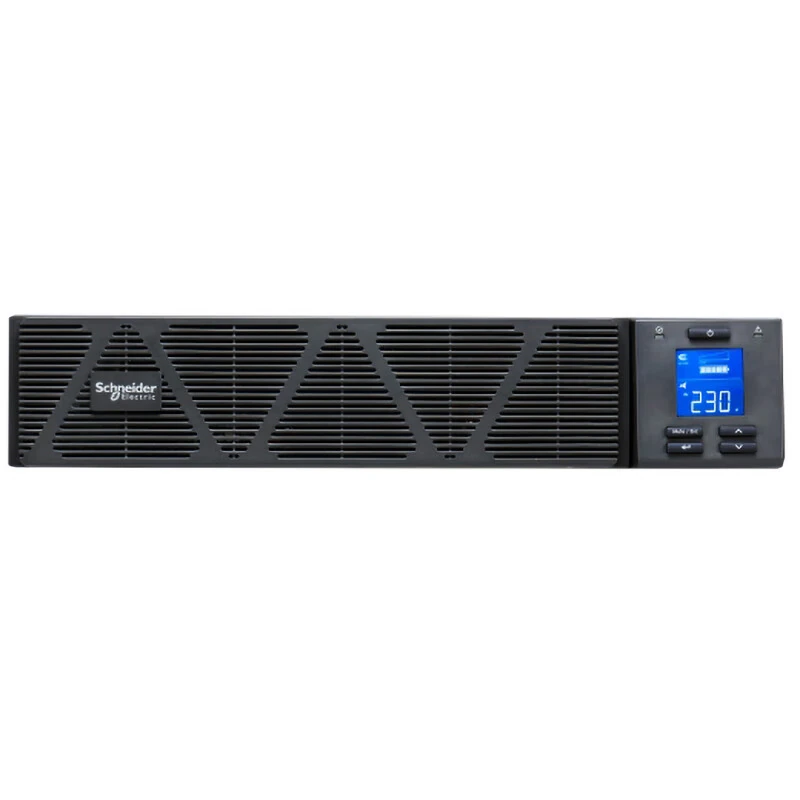

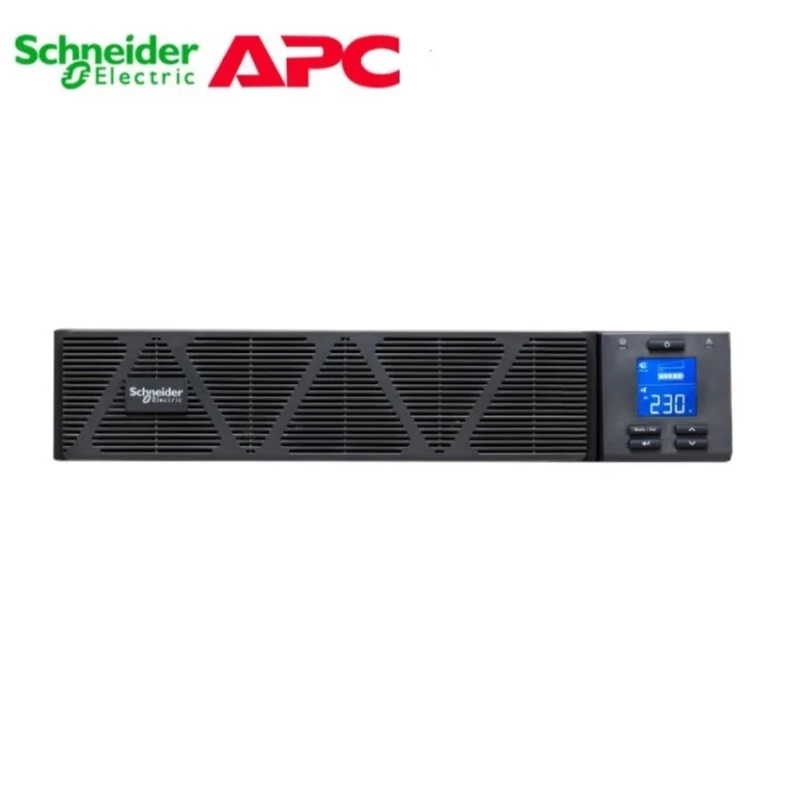

LCD Interface: An intuitive LCD screen allows for quick status monitoring and parameter configuration.

Advanced Networking: Comes standard with RS232 and USB communication ports. A smart card slot is also available for optional SNMP, Modbus, or environmental monitoring cards.

Technical Specifications

Specifications	SPRM1KL (Long Backup Model)	SPRM1K (Standard Model)	SPRM2KL (Reference)
Output Power	800 W / 1000 VA	800 W / 1000 VA	1600 W / 2000 VA
Input Voltage Range	110 - 300 VAC	110 - 300 VAC	110 - 300 VAC
Output Voltage	220(Default) / 230 / 240 VAC	220/230/240 VAC	220/230/240 VAC
Output Waveform	Online double conversion, Pure sine wave	Pure sine wave	Pure sine wave
Battery Inclusion	N/A (Without Battery)	9Ah × 2 (Built-in)	N/A (Without Battery)
Required Battery Voltage	36V (External)	24V (Internal)	72V (External)
Backup Time	Depends on external battery capacity	> 4 minutes (Full load)	Depends on external battery capacity
Output Terminals	National standard sockets × 4	National standard sockets × 4	National standard sockets × 4

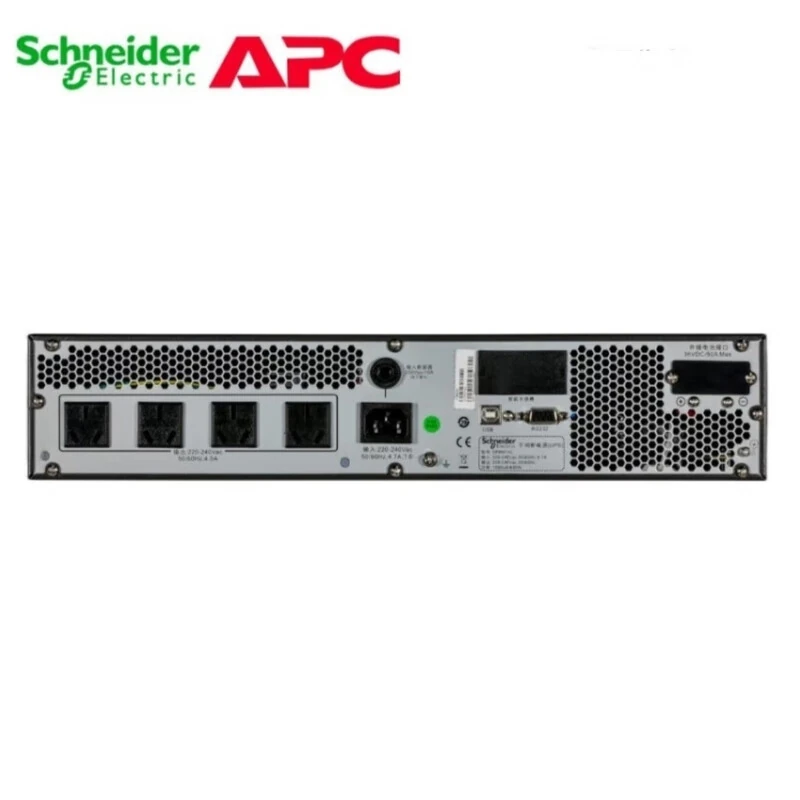

Input Terminals / Protection	IEC C14 / 10A protector	IEC C14 / 10A protector	IEC C20 / 16A protector
Display & Interface	LCD / RS232 / USB / Smart Slot	LCD / RS232 / USB / Smart Slot	LCD / RS232 / USB / Smart Slot
Dimensions (W×D×H)	438 × 332 × 88 mm (2U)	438 × 312 × 88 mm (2U)	438 × 462 × 88 mm (2U)
Net Weight	6.3 kg (Lightweight design)	11 kg	9 kg

Wide Range of Applications

The APC SP Series SPRM1KL offers customized, long-lasting rack power protection, making it highly suitable for:

Telecommunications: Providing hours of uninterrupted power for core routing equipment and communication base stations.

Data Centers & IT Closets: Protecting critical 19-inch rack-mounted servers and storage arrays during extended power outages.

Industrial Automation: Supplying continuous pure sine wave power for rack-mounted PLCs and control systems.

Security & Lighting: Ensuring essential emergency lighting and security camera hubs remain operational for extended periods.

Our Factory

apc back ups family bk500m ch 500va/300w standby ups with built in battery

Our Certifcate

Exhibition

Packaging & Shipping

Frequently Asked Questions (FAQ)

Q1: What is the main difference between the SPRM1KL and the SPRM1K models?

A: The SPRM1KL is a “Long Backup” model that comes without built-in batteries (making its net weight only 6.3kg). It is engineered to connect to an external battery bank to provide extended hours of backup time. The SPRM1K is the standard model with internal batteries.

Q2: What is the external battery voltage requirement for this UPS?

A: The SPRM1KL requires an external battery system configured to 36V. The total backup time will depend entirely on the Amp-hour (Ah) capacity of the external batteries you deploy.

Q3: Will this UPS fit in a standard server rack?

A: Yes, it features a standard “Rack Type” form factor. Its dimensions are 438 × 332 × 88 mm, which perfectly fits into a standard 19-inch IT rack, occupying only 2U of vertical space.

Q4: Can this UPS be monitored remotely?

A: Absolutely. It comes standard with an LCD interface, RS232, and USB communication ports. You can also insert optional SNMP or Modbus cards into its Smart card slot for advanced network monitoring and automated shutdown features.

Q5: What are the packaging weight and HS Code?

A: The UPS is packed securely in a carton box measuring 21.8 × 55 × 45.5 cm with a gross weight of 8.1 kg. The official export HS Code is 8504402000.
