APC Galaxy 3L 250kVA 250kW 400V 3-Phase UPS (G3LUPS250KHTS) | Robust Power Protection for Large Facilities

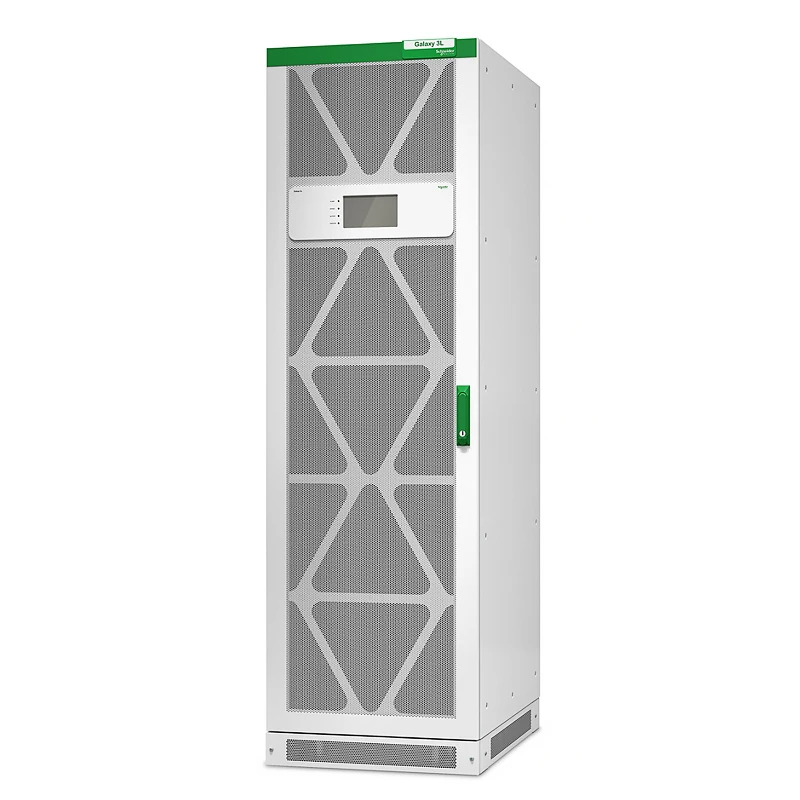

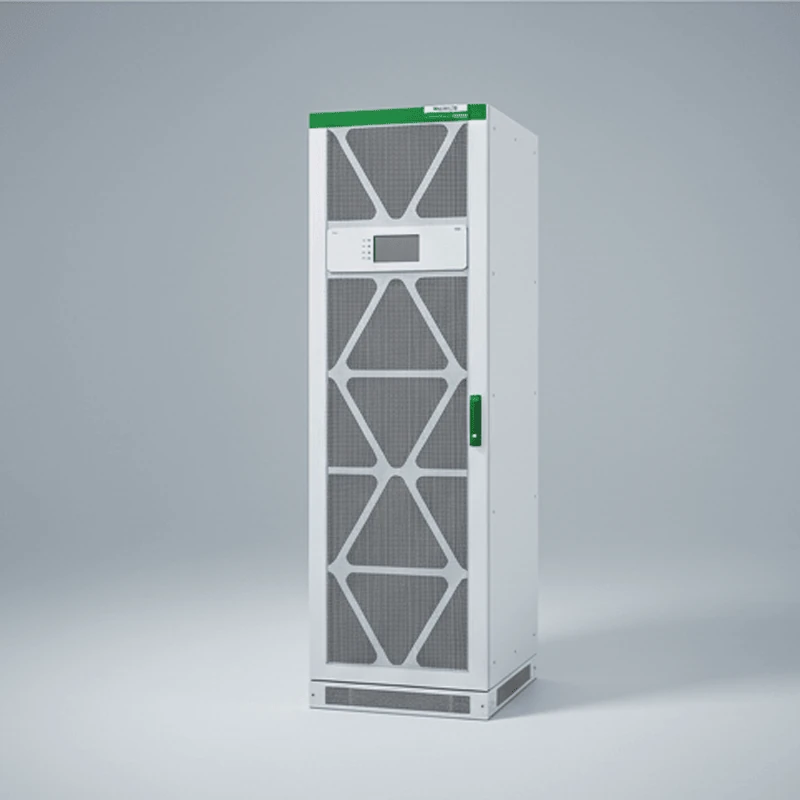

The APC Galaxy 3L 250kVA (G3LUPS250KHTS) is a high-performance, 3-phase uninterruptible power supply (UPS) that delivers a full 250kW of real power (PF=1.0). Designed for medium and large data centers, commercial buildings, and light industrial environments, the Galaxy 3L simplifies power protection while ensuring maximum business continuity. This specific model is a “Without Internal Battery” version, offering superior flexibility for integration with external battery banks (VRLA or Lithium-ion) to meet specific backup runtime requirements. Its compact design and high efficiency make it an ideal choice for facilities looking to optimize space and operational costs.

Key Functions and Features

Unity Power Factor (PF=1.0): Provides 250kW of active power, matching the requirements of modern IT and industrial loads without power derating.

Superior Energy Efficiency: Achieves up to 96% efficiency in online double conversion mode and up to 99% in ECO mode, significantly reducing electricity expenses and cooling requirements.

Compact Footprint & High Density: Optimized cabinet design minimizes floor space usage, making it easier to integrate into crowded electrical rooms or data centers.

Robust Fault-Tolerant Design: Engineered for challenging electrical environments, featuring a wide input voltage window and strong overload capabilities to protect critical equipment.

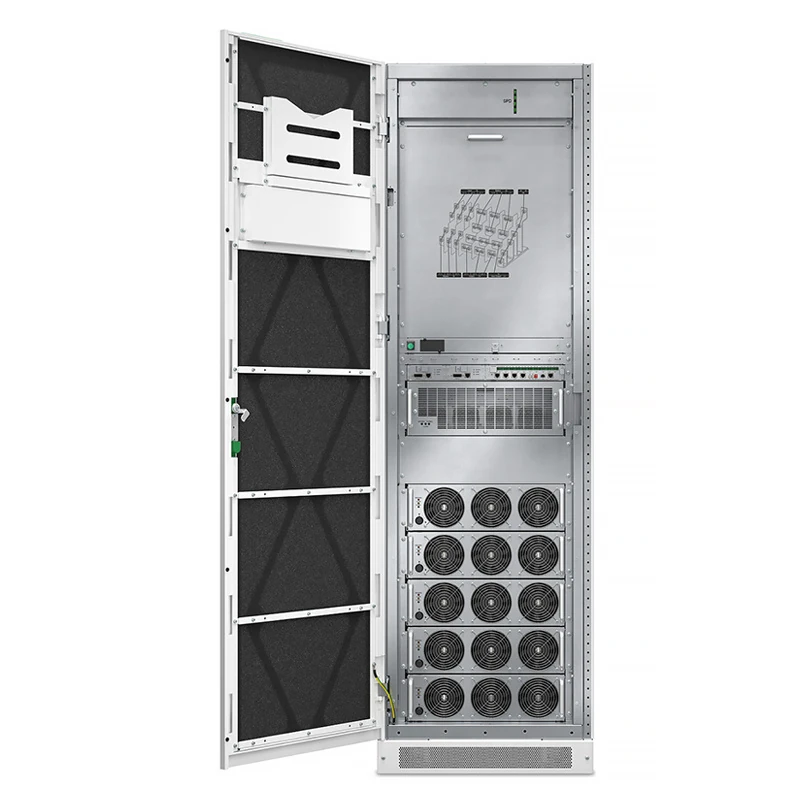

Simplified Installation & Maintenance: Includes built-in input, output, and bypass breakers, along with a front-access design for fast and safe servicing.

Parallel Capability for Scalability: Supports parallel connection of up to 5 units for capacity expansion or N+1 redundancy, allowing your power infrastructure to grow with your business.

EcoStruxure™ IT Ready: Remote monitoring and management are made easy through Schneider Electric’s cloud-based platform, providing 24/7 visibility into system health.

Technical Specifications

Specification Item	Technical Detail (G3LUPS250KHTS)
Model Number	G3LUPS250KHTS
Power Capacity	250 kVA / 250 kW
Output Power Factor	1.0 (kVA = kW)
UPS Topology	Online Double Conversion
Nominal Input/Output Voltage	380V / 400V / 415V (3-Phase)
Input Voltage Range	323V - 477V (at full load)
Output Efficiency	Up to 96% (Online) / 99% (ECO Mode)
Overload Capacity	125% for 10 min / 150% for 1 min
Battery Configuration	External Battery System (Standard)
Total Harmonic Distortion (THDI)	< 3% (at full load)
Dimensions (W x D x H)	Approx. 600 x 850 x 1970 mm
Net Weight	Approx. 415 kg
Noise Level (at 1 meter)	≤ 70 dB
Ingress Protection	IP20
Compliance	IEC 62040-1, IEC 62040-2, CE, RCM

Wide Range of Applications

The APC Galaxy 3L 250kVA G3LUPS250KHTS is a versatile powerhouse for large-scale operations:

Medium & Large Data Centers: Reliable core power for server farms, cloud storage, and enterprise IT hubs.

Commercial Buildings: Protects centralized HVAC systems, security infrastructure, and high-speed elevator systems in office towers and malls.

Manufacturing & Industrial Facilities: Ideal for protecting automated production lines, CNC machinery, and control rooms in light industrial sectors.

Healthcare Systems: Ensures zero-downtime protection for hospital wings, diagnostic labs, and critical life-support systems.

Educational Institutions: Reliable backup for university research labs and campus-wide IT networks.

Our Factory

apc back ups family bk500m ch 500va/300w standby ups with built in battery

Our Certifcate

Exhibition

Packaging & Shipping

Frequently Asked Questions (FAQ)

Q1: Does the G3LUPS250KHTS include internal batteries?

A: No, this model is the “Without Internal Battery” version. It is designed to be connected to external battery cabinets, allowing for customized and extended backup runtimes based on your facility’s needs.

Q2: What is the main advantage of the Galaxy 3L over the Galaxy VS?

A: While both are highly reliable, the Galaxy 3L is specifically designed to be simpler to install and operate in medium to large buildings, offering a highly competitive price-to-performance ratio for general-purpose high-power applications.

Q3: Can I parallel multiple units of the 250kVA model?

A: Yes, you can parallel up to 5 units for a total capacity of 1250kVA or to create an N+1 redundant configuration for enhanced reliability.

Q4: How does the PF=1.0 benefit my operation?

A: A Power Factor of 1.0 (Unity) means you get 250kW of real, usable power. Traditional 0.8 or 0.9 PF UPS systems would provide less wattage for the same kVA rating, potentially requiring a larger, more expensive UPS for the same load.

Q5: Is this UPS compatible with Lithium-ion batteries?

A: Yes, the Galaxy 3L supports modern Lithium-ion battery cabinets in addition to traditional VRLA batteries, allowing for a longer service life and a smaller battery footprint.
