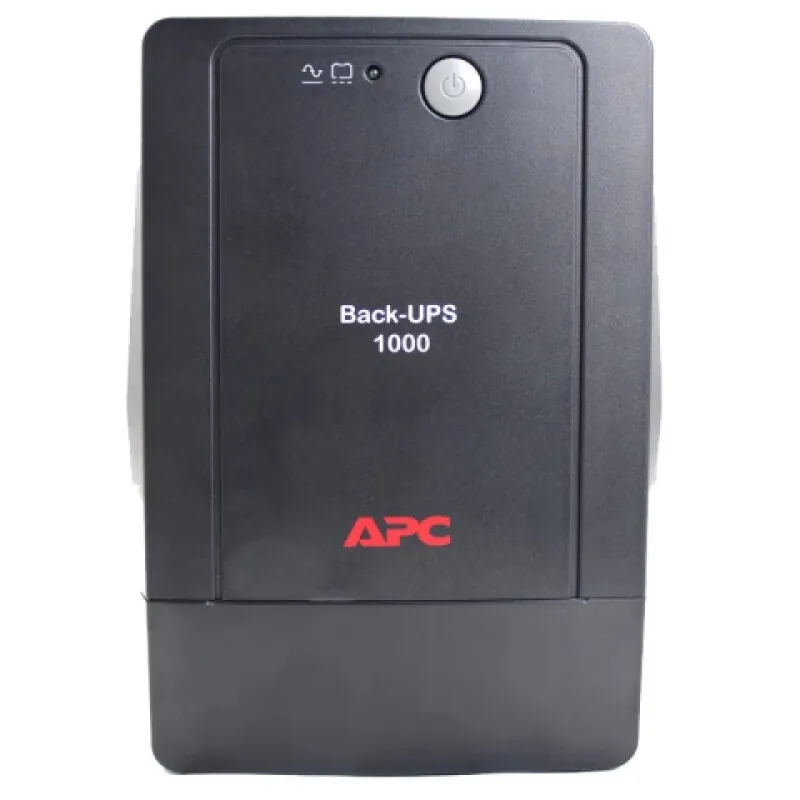

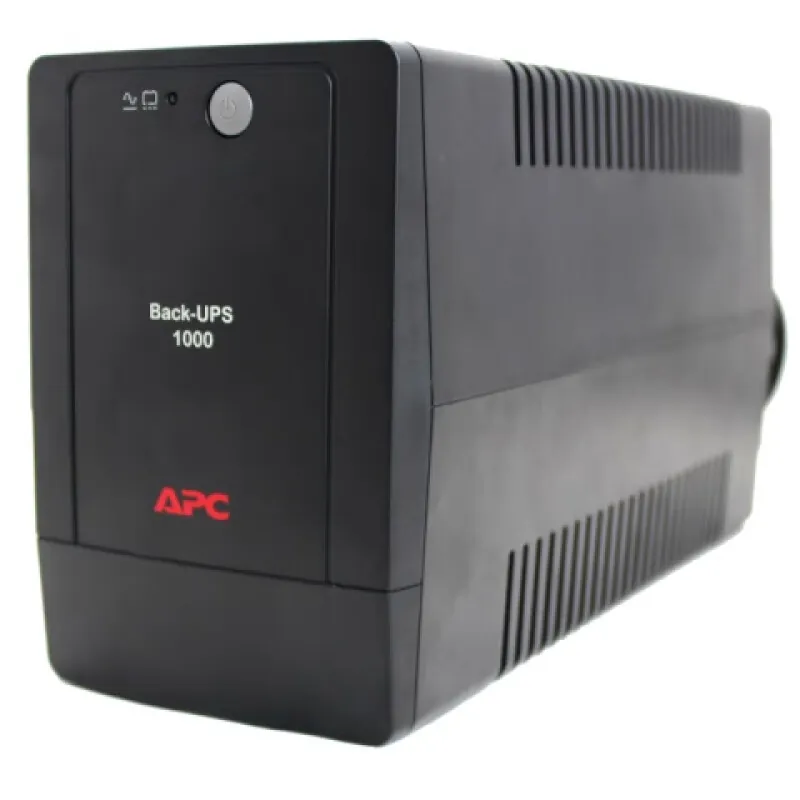

APC Back-UPS BP1000-CH 1000VA/600W Standby UPS with Built-in Battery

The APC Back-UPS BP1000-CH is a high-performance 1kVA/600W Standby UPS designed to provide reliable power protection for critical equipment. Featuring advanced Automatic Voltage Regulation (AVR) and a highly efficient natural cooling fanless design, it ensures your devices remain safe under unstable grid conditions. With a built-in heavy-duty battery (12V/27Ah), high operating efficiency exceeding 98%, and RS232 communication capabilities, the BP1000-CH is an ideal uninterruptible power supply solution for communication hubs, lighting systems, and essential office electronics.

Key Functions and Features

High Efficiency & Robust Performance

High Efficiency: Reaches an impressive operating efficiency of over 98%.

Clean Operation: The UPS generates no additional input power factor or harmonic current distortion, ensuring zero interference to the main power grid.

Strong Output Capability: Features no strict limitations on load current crest factor, surge current factor, or moderate overloads.

Comprehensive System Protection

Surge & Lightning Protection: Equipped with 156 Joules of input surge protection against dangerous spikes and lightning.

Over-temperature Protection: Includes an LED warning and continuous beep if temperatures rise. It will automatically safely shut down if the temperature remains critical.

Resettable Circuit Breaker: Easily restore the circuit from overload or short-circuit conditions with a simple push-button, eliminating the need to search for replacement fuses.

Advanced AVR & Intelligent Management

Automatic Voltage Regulation (AVR): Automatically increases output voltage when mains drop below a safe level, allowing equipment to operate safely during low-voltage conditions without draining the battery.

Sensitivity Settings: Adjustable sensitivity for devices with varying tolerances to mains voltage fluctuations.

Personal Software Management: Supports power storage configuration, alarm settings, and monitoring of UPS power events via RS232 interface.

Easy to Use & Maintain

Automatic Self-Test: Regularly self-tests the battery to detect any required replacements early.

Audible Alarms: Proactive alerts for battery status and power conditions.

Safe Connection Mechanism: Features a convenient battery connector handle for safe transportation and easy initial setup.

Technical Specifications (BP650-CH vs BP1000-CH)

Specifications	BP1000-CH (Main Model)	BP650-CH
Output Capacity	1000VA / 600W (Power Factor 0.6)	650VA / 360W (Power Factor 0.6)
Input Voltage Range	162 - 270V (220/230V Nominal)	162 - 270V (220/230V Nominal)
Frequency Range	50/60Hz Adaptive	50/60Hz Adaptive
Output Waveform	Approaching a sine wave (Stepped)	Approaching a sine wave (Stepped)

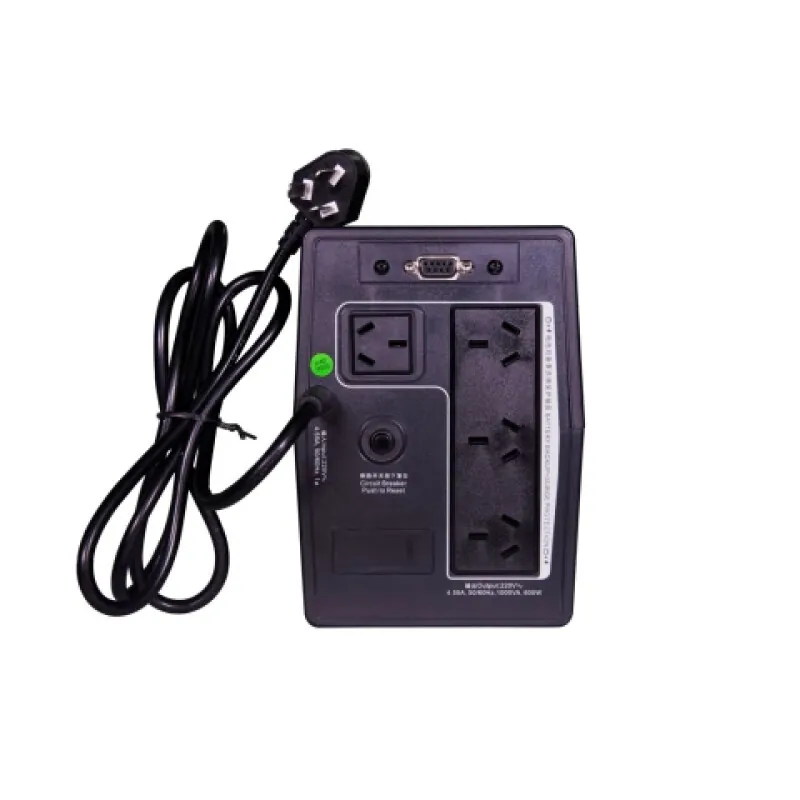

Output Interfaces	National Standard 10A × 4	National Standard 10A × 3
Switching Time	4 - 8ms	4 - 8ms
AVR Function	Yes (Built-in)	Yes (Built-in)
Input Surge Protection	156 Joules	156 Joules
Battery Capacity	12V / 27Ah × 1 (Built-in)	12V / 17Ah × 1 (Built-in)
Backup Time (100% Load)	1 minute (at full 600W)	1 minute (at full 360W)
Typical Charging Time	4 - 6 hours to 90%	4 - 6 hours to 90%
Communication Interface	RS232	RS232
Cooling & Noise	Natural cooling, fanless / <40dB	Natural cooling, fanless / <40dB
Net Weight	7.8 kg	4.4 kg
Dimensions (D×W×H)	320 × 130 × 182 mm	300 × 101 × 142 mm

Wide Range of Applications

Designed as a small-type reliable power backbone, the BP1000-CH is perfectly suited for:

Communication Facilities: Keeping essential network switches, routers, and modems active during blackouts.

Lighting Systems: Providing seamless transition power for emergency and classification lighting.

Business & Office Equipment: Protecting PCs, monitors, and point-of-sale (POS) systems from data loss and hardware damage.

Our Factory

apc back ups family bk500m ch 500va/300w standby ups with built in battery

Our Certifcate

Exhibition

Packaging & Shipping

Frequently Asked Questions (FAQ)

Q1: Does the BP1000-CH feature an Automatic Voltage Regulation (AVR) function?

A: Yes, it comes with a built-in AVR function that automatically stabilizes the output voltage when the input drops (between 162-270V), ensuring connected equipment runs safely without unnecessarily draining battery power.

Q2: What is the battery capacity and how long does it take to charge?

A: The BP1000-CH is equipped with a robust built-in 12V/27Ah battery. The typical charging time to reach 90% capacity is approximately 4 to 6 hours.

Q3: Is this UPS suitable for quiet office environments?

A: Absolutely. It features a natural cooling, fanless design, resulting in an operating noise level of less than 40dB, making it whisper-quiet for any indoor environment.

Q4: What kind of after-sales warranty is provided?

A: This product is covered by APC’s standard 2-year warranty from the date of purchase. For battery replacements or deep technical support, professional authorized service centers are available.

Q5: What are the shipping dimensions and the exact HS Code?

A: The UPS has a gross weight of 9.2 kg. The transport package dimensions are 27.5 × 39 × 19.2 cm. The official HS Code for customs clearance is 8504402000.
