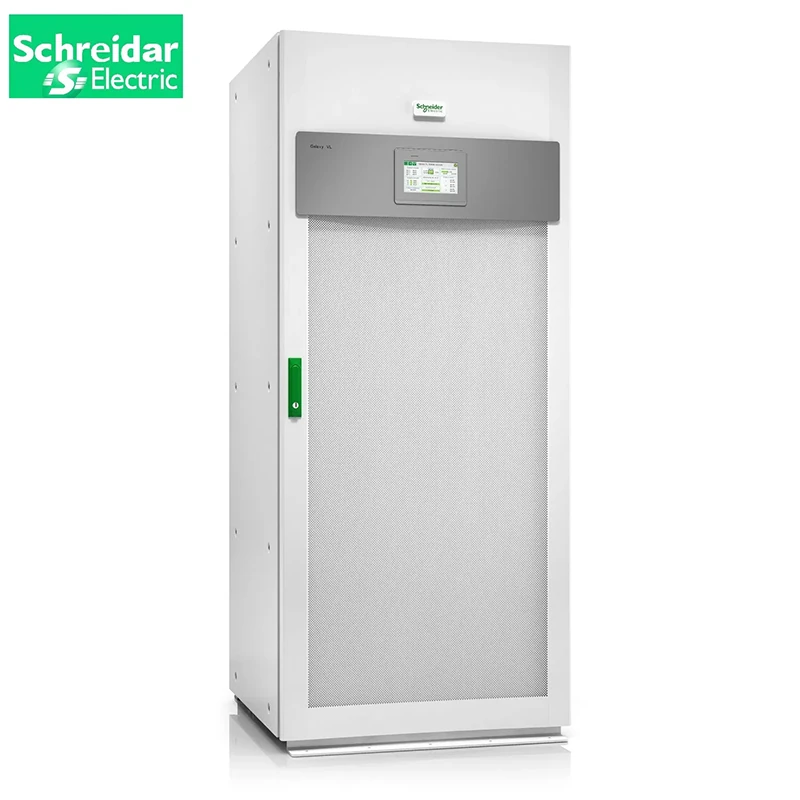

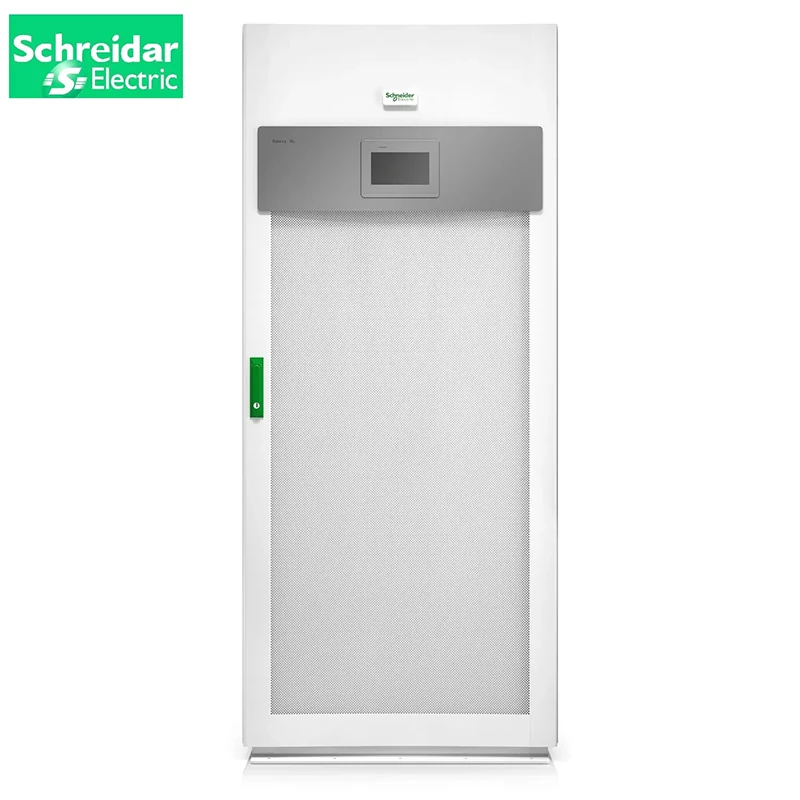

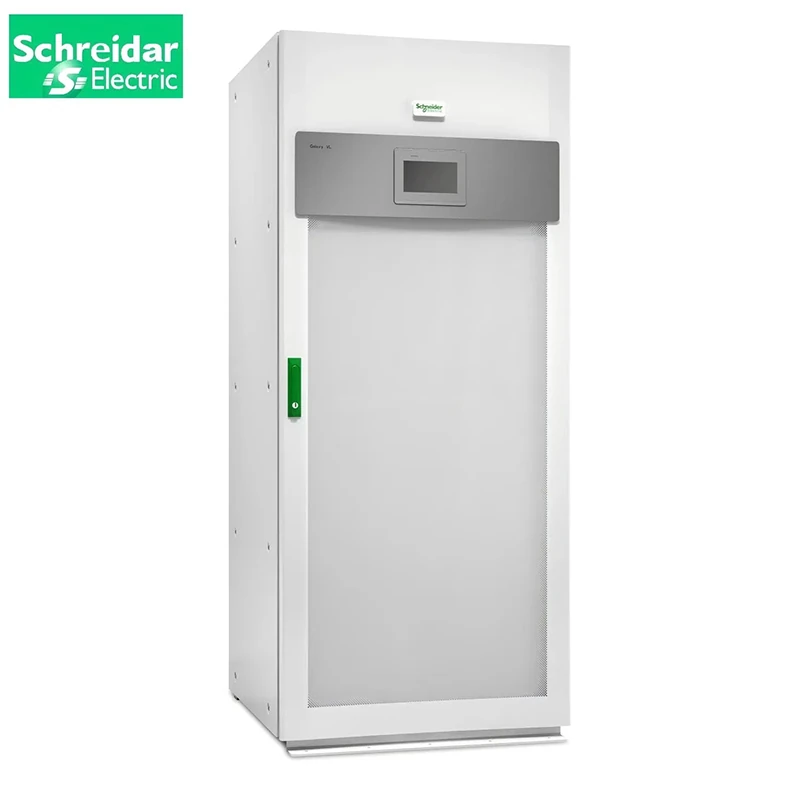

Schneider Galaxy VL 200kW Modular UPS (380V/400V/415V/480V) | Scalable 3-Phase Power Solution

The Schneider Galaxy VL 200kW is a high-efficiency, modular, and scalable 3-phase uninterruptible power supply (UPS) designed for medium to large data centers and mission-critical facilities. Featuring a 50kW modular parallel architecture, the Galaxy VL allows for seamless power expansion from 200kW up to 500kW without increasing its industry-leading 0.8m² footprint. Engineered with patented ECOnversion™ technology, it delivers up to 99% efficiency, significantly reducing total cost of ownership (TCO) while ensuring maximum availability through its Live Swap™ (online plug-and-play) capability.

Key Functions and Features

Ultra-High Efficiency (ECOnversion™): Provides up to 99% efficiency in ECOnversion™ mode and 97% in double-conversion mode, providing perfect power quality while slashing annual electricity costs.

Live Swap™ Technology: The revolutionary online plug-and-play design allows for adding or replacing 50kW power modules safely without downtime, ensuring 24/7 business continuity.

Maximum Space Optimization: With a floor area of only 0.8 m², it reduces the footprint by more than 50% compared to the industry average, freeing up valuable space for production equipment.

Flexible Battery Compatibility: Fully compatible with Galaxy Lithium-ion battery systems, VRLA, and Ni-Cd, offering faster charging (2-3x) and a longer cycle life to improve system availability.

Unity Power Factor (PF=1): Matches modern IT load requirements (kVA=kW) to ensure the highest power density and efficiency at 40°C full load operation.

EcoStruxure™ IT Integration: Enables remote monitoring and management via smartphone apps, providing 24/7 visibility into equipment health and predictive maintenance.

Technical Specifications

Feature Category	Technical Specifications (Galaxy VL 200kW)
Model	Schneider Galaxy VL 200kW
Rated Power	200kW (Scalable up to 500kW via 50kW modules)
Output Power Factor	PF = 1.0 (kVA = kW)
Input/Output Voltage	380V / 400V / 415V / 440V / 480V VAC
Input Voltage Range	331 - 552 VAC
Topology	Online Double Conversion / ECOnversion™
Efficiency (Online Mode)	Up to 97%
Efficiency (ECOnversion™)	Up to 99%
Overload Capacity	125% for 10 min; 150% for 1 min
Maximum Short Circuit Current	65 kA Icw
Operating Temperature	0°C to 50°C (Full load at 40°C without derating)
Dimensions (W x D x H)	850 x 925 x 1970 mm
Footprint Area	0.8 m²
Noise Level	65 dB
Protection Class	IP20

Wide Range of Applications

The Galaxy VL 200kW is the ideal choice for environments requiring high density and zero downtime:

Medium & Large Data Centers: Supports massive IT workloads with N+1 module-level redundancy.

Edge Computing: Compact design fits perfectly into decentralized edge infrastructures.

Cloud Computing & IDC: Scalable architecture allows “pay-as-you-grow” investment as demand increases.

Healthcare & Labs: Provides stable sine wave output for sensitive diagnostic and medical equipment.

Light Industry & Transportation: Robust design handles harsh environments and humid conditions with conformal coating.

Our Factory

apc back ups family bk500m ch 500va/300w standby ups with built in battery

Our Certifcate

Exhibition

Packaging & Shipping

Frequently Asked Questions (FAQ)

Q1: What is the main advantage of Live Swap™ technology?

A: Live Swap™ allows maintenance personnel to add or replace 50kW power modules while the UPS is running in double-conversion mode. This eliminates the need to switch to bypass, significantly enhancing safety and ensuring the load is always protected.

Q2: How does the Galaxy VL achieve 99% efficiency?

A: Through Schneider’s patented ECOnversion™ mode, which combines the high efficiency of ECO mode with the power quality of double-conversion, effectively filtering harmonics while minimizing energy loss.

Q3: Is the Galaxy VL compatible with Lithium-ion batteries?

A: Yes. It is optimized for Galaxy Lithium-ion systems, which can save up to 70% of floor space compared to traditional lead-acid solutions and offer a much longer service life.

Q4: Can I expand the system from 200kW to 500kW?

A: Absolutely. The modular design allows you to start with 200kW and add 50kW power modules as your load grows, protecting your initial investment.

Q5: What is the footprint of the Galaxy VL 200kW?

A: The unit occupies only 0.8 m², which is roughly half the space required by traditional modular UPS systems of similar capacity.
