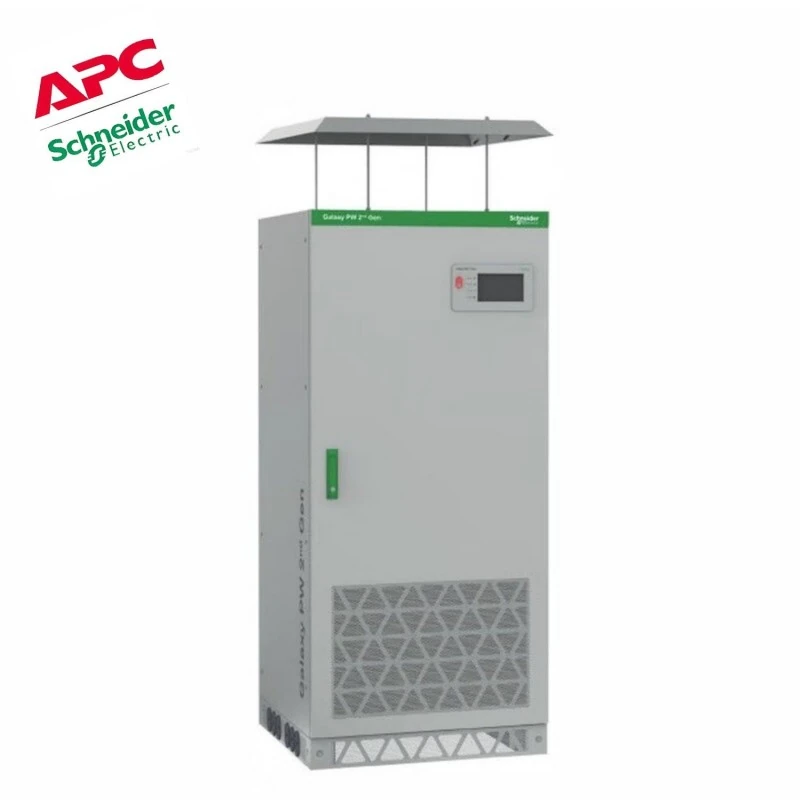

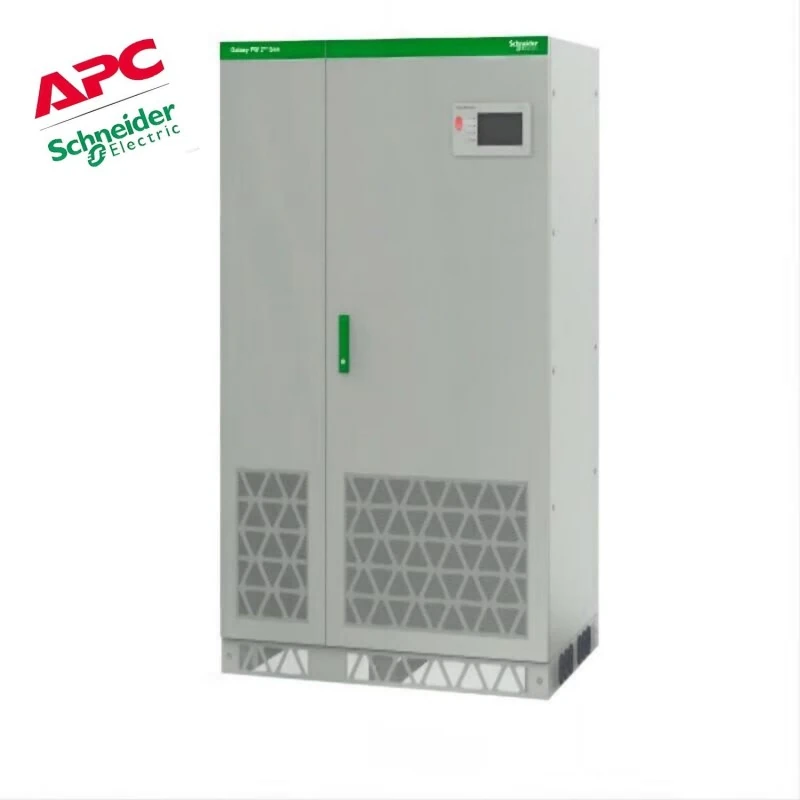

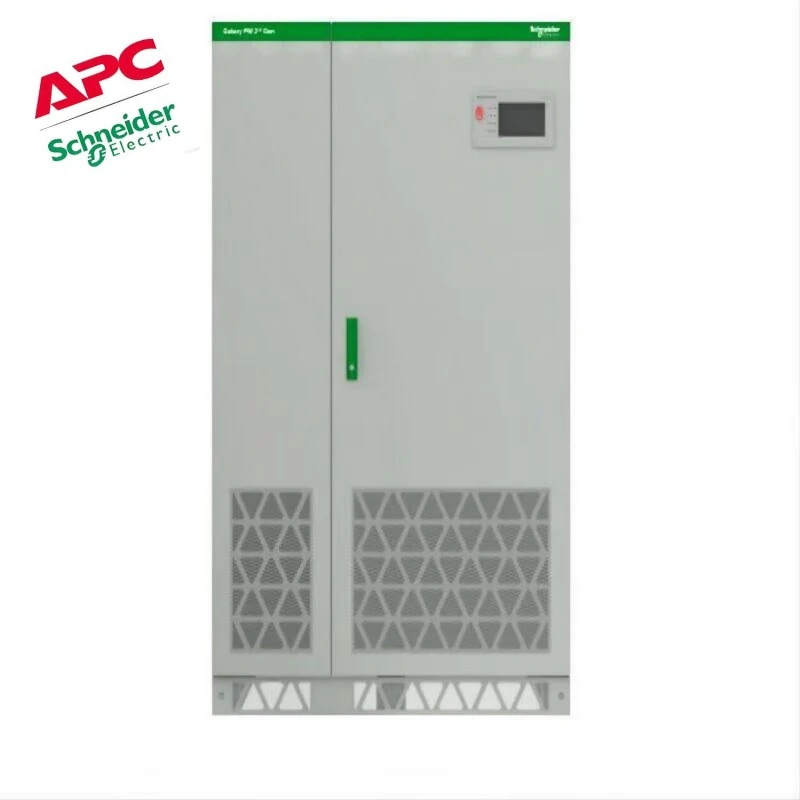

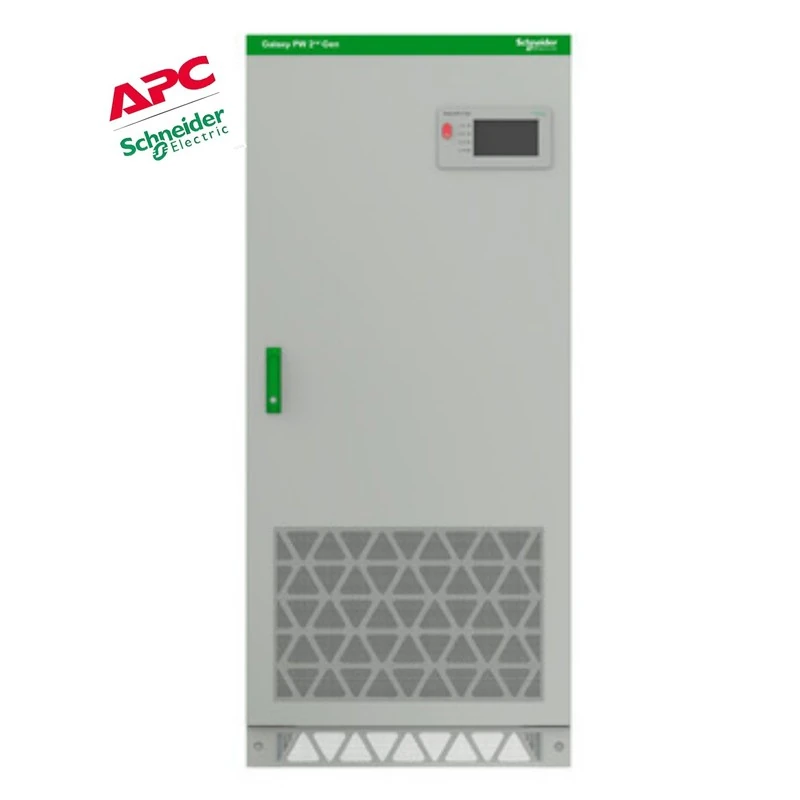

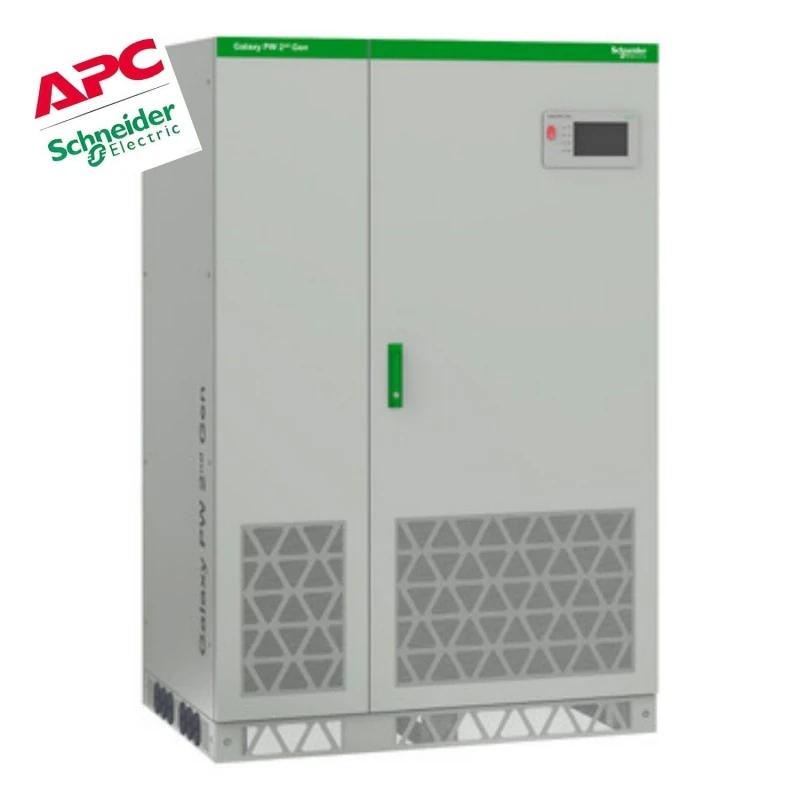

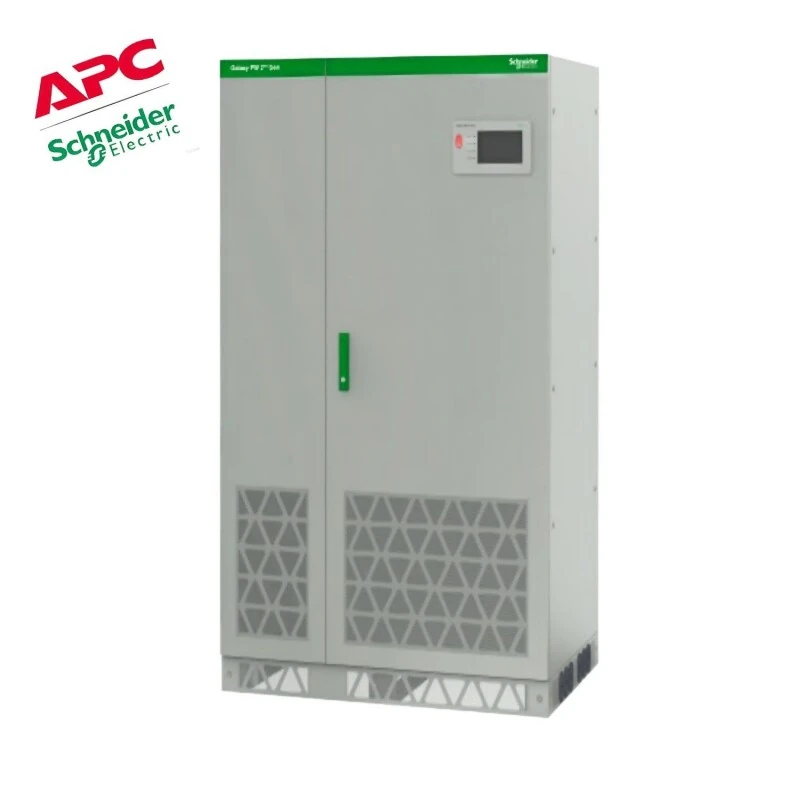

APC Galaxy PW33 20kVA Industrial 3-Phase UPS (EPWUPS20KH6PS) | IP31 Rated 384V Power Solution

The APC Galaxy PW33 20kVA (EPWUPS20KH6PS) is a robust, industrial-grade 3-phase uninterruptible power supply designed specifically for harsh environments where standard IT UPS units fail. Unlike conventional systems, the PW33 is engineered with an IP31 protection level, shielding internal components from vertical water drops and solid particles. Operating on a 384V DC bus, this 20kVA unit features PCB boards treated with a “Three-Proof Coating” (anti-moisture, anti-dust, and anti-corrosion). It is the premier choice for providing stable, sine-wave power to critical infrastructure in metallurgy, power plants, and semiconductor manufacturing.

Key Functions and Features

Industrial-Grade IP31 Protection: Provides superior protection against dripping water and solid objects larger than 2.5mm, making it suitable for industrial workshops rather than just clean data centers.

Advanced Three-Proof Coated PCBs: All internal circuit boards feature a professional conformal coating that protects against moisture, salt spray, and dust-induced corrosion, significantly extending the equipment life in humid or chemical-heavy sites.

384V DC Architecture: Optimized for high-efficiency energy storage and discharge, providing a reliable 3-phase sine wave output for sensitive industrial control systems.

High Environmental Adaptability: Designed to operate reliably in wider temperature ranges and fluctuating grid conditions common in heavy industrial sectors.

Robust Fault Tolerance: Features a high-strength chassis and industrial-grade components that withstand vibration and electrical noise typical in power plants and metallurgical facilities.

Enhanced Serviceability: Front-access design facilitates quick inspection and maintenance, minimizing MTTR (Mean Time to Repair) in 24/7 production environments.

Technical Specifications

Specification Item	Technical Detail (EPWUPS20KH6PS)
Model Number	EPWUPS20KH6PS (Galaxy PW33)
Power Capacity	20 kVA / 18 kW
Nominal DC Voltage	384 VDC
Input/Output Phase	3:3 Phase (3-Phase In / 3-Phase Out)
Nominal Voltage	380V / 400V / 415V VAC
Protection Level	IP31 (Drip-proof & Dust-protected)
PCB Board Treatment	Three-Proof Coating (Moisture, Salt, Dust)
Output Waveform	Pure Sine Wave
Topology	Online Double Conversion
Operating Temperature	0°C to 40°C (Optimized for Industrial use)
Dimensions (Standard)	Approx. 600 x 800 x 1400 mm (Varies by cabinet)
Communication Interface	RS485, Dry Contacts, Optional SNMP
Compliance	IEC 62040-1, IEC 62040-2, CE

Wide Range of Applications

The Galaxy PW33 20kVA is specifically tailored for industries with demanding operational conditions:

Metallurgy & Mining: Withstands the fine dust and high-temperature fluctuations of metal processing plants.

Power Plants & Utilities: Provides uninterruptible backup for critical control logic (DCS) and monitoring systems.

Semiconductor Manufacturing: Ensures the ultra-stable power quality required for sensitive lithography and fab equipment.

Medical Care & Laboratories: Reliable protection for high-end imaging systems (MRI/CT) and life-support infrastructure in hospitals.

Petrochemical & Chemical Plants: Conformal-coated boards resist chemical vapors and humid environments.

Our Factory

apc back ups family bk500m ch 500va/300w standby ups with built in battery

Our Certifcate

Exhibition

Packaging & Shipping

Frequently Asked Questions (FAQ)

Q1: What is the difference between IP20 and the IP31 rating on this UPS?

A: Most standard UPS units are IP20, which offers no protection against water. The IP31 rating on the EPWUPS20KH6PS means it is protected against solid objects larger than 2.5mm and, more importantly, against vertically falling water drops (condensation or leaks), which is vital in industrial settings.

Q2: Why is the “Three-Proof Coating” important?

A: In industrial environments, air often contains moisture, salt, or conductive dust. The three-proof coating is a protective film applied to the PCB to prevent leakage, short circuits, and corrosion, ensuring the UPS doesn’t fail prematurely due to environmental factors.

Q3: Can this UPS handle the high inrush currents of industrial motors?

A: While primarily designed for control systems, the industrial-grade components of the PW33 offer better transient response and overload handling compared to standard office UPS models.

Q4: Is the 384V battery system standard?

A: Yes, the 384V DC bus is a high-performance configuration for this 20kVA unit, allowing for efficient integration with industrial battery banks for long-duration backup.

Q5: Is remote monitoring possible in a power plant environment?

A: Yes, the system supports RS485 and Modbus protocols, which are the standard for industrial control systems, and can be equipped with an SNMP card for network-based management.
