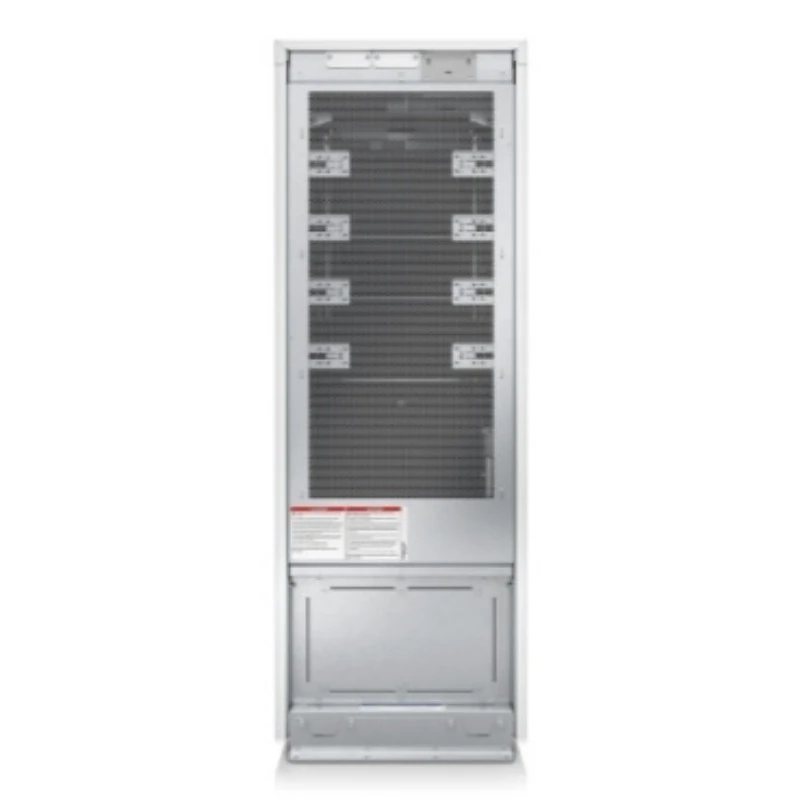

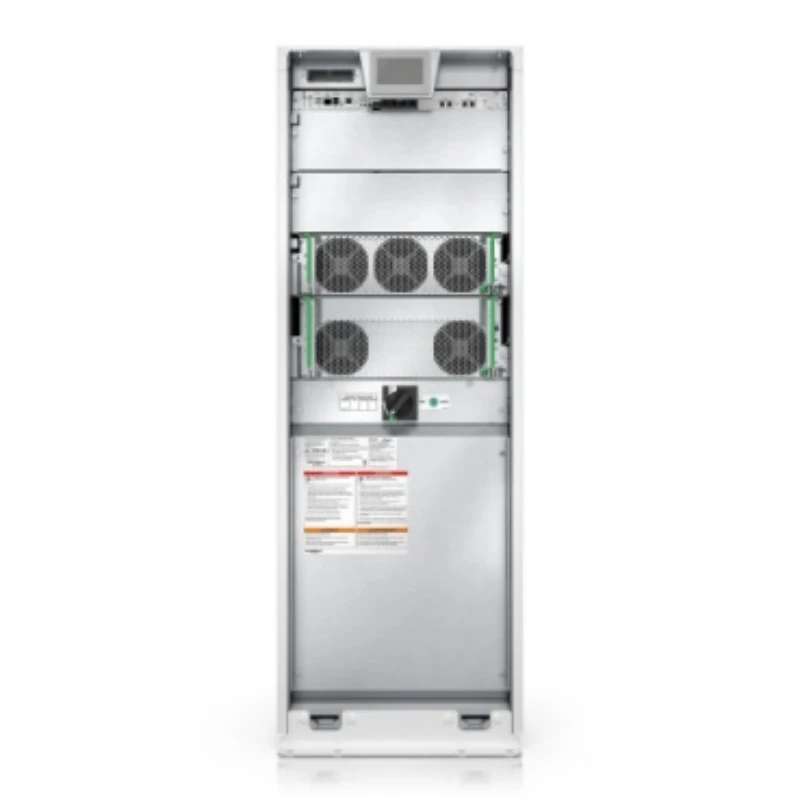

APC Galaxy VS 30kVA 30kW 400V 3:3 Phase UPS (GVSUPS30KHS) | High-Density Power Protection

The APC Galaxy VS 30kVA (GVSUPS30KHS) is a state-of-the-art, 3-phase uninterruptible power supply (UPS) that delivers a full 30kW of real power (PF=1.0). Part of the award-winning Galaxy family by Schneider Electric, this model is engineered for edge, small, and medium data centers where space and efficiency are critical. As a “Without Internal Battery” (External Battery) version, the GVSUPS30KHS provides the ultimate flexibility to configure customized backup runtimes using external battery cabinets or high-performance Lithium-ion solutions. With its patented ECOnversion™ technology, it achieves industry-leading 99% efficiency, drastically lowering your operational energy costs.

Key Functions and Features

99% Efficiency with ECOnversion™: Achieves a remarkable 99% efficiency in ECOnversion mode, providing Class 1 compliant power protection while reducing energy losses and heat dissipation.

Unity Power Factor (PF=1.0): Delivers 30kW of active power, matching the needs of modern IT loads without the need for power derating at higher temperatures.

Ultra-Compact Footprint: Its high-density design makes it one of the narrowest 30kVA UPS systems on the market, saving valuable floor space in constrained equipment rooms.

Flexible Battery Storage: Fully compatible with traditional VRLA batteries as well as advanced Lithium-ion battery cabinets, which offer 2-3x longer service life and reduced weight.

EcoStruxure™ Connected: Seamlessly integrates with Schneider Electric’s cloud-based management platform for 24/7 remote monitoring, smart alerts, and maintenance optimization.

Modular & Easy to Service: Designed for fast serviceability with full front access, reducing the Mean Time to Repair (MTTR) and ensuring high system availability.

Technical Specifications

Specification Item	Technical Detail (GVSUPS30KHS)
Model Number	GVSUPS30KHS
Rated Power (kVA/kW)	30kVA / 30kW
Output Power Factor	1.0 (kVA = kW)
UPS Topology	Online Double Conversion / ECOnversion™
Input/Output Phase	3:3 Phase
Nominal Input Voltage	380V / 400V / 415V
Input Frequency	40 - 70 Hz
Efficiency (Online Mode)	Up to 97%
Efficiency (ECOnversion™ Mode)	Up to 99%
Battery Configuration	External Battery System (Standard Machine)
Total Harmonic Distortion (THDI)	< 3% at full load
Output Voltage Distortion (THDU)	< 1% (Linear Load)
Operating Temperature	0°C to 40°C
Dimensions (W x D x H)	333 x 847 x 1485 mm
Protection Class	IP20
Compliance	IEC 62040-1, IEC 62040-2, CE, TUV, RCM

Wide Range of Applications

The APC Galaxy VS 30kVA GVSUPS30KHS is a versatile solution for diverse mission-critical environments:

Edge Data Centers: High power density and compact size make it perfect for decentralized edge computing nodes.

Healthcare Facilities: Provides clean, stable power for diagnostic imaging, MRI suites, and laboratory IT systems.

Telecommunications: Ideal for 5G base stations, switching centers, and high-capacity network hubs.

Commercial Buildings: Protects centralized building management systems (BMS), security, and fire safety systems.

Industrial Automation: Ensures continuous operation for smart factory control systems and high-precision production lines.

Our Factory

apc back ups family bk500m ch 500va/300w standby ups with built in battery

Our Certifcate

Exhibition

Packaging & Shipping

Frequently Asked Questions (FAQ)

Q1: Why choose the GVSUPS30KHS “Without Battery” model?

A: This model allows you to tailor your energy storage strategy. By using external battery cabinets, you can achieve much longer backup times or utilize Lithium-ion batteries to reduce the system’s weight and footprint.

Q2: How does ECOnversion™ differ from standard ECO mode?

A: Unlike traditional ECO mode which offers low protection, ECOnversion™ provides Class 1 power protection (per IEC 62040-3). It filters harmonics and keeps the inverter running in sync to provide a seamless transition to battery if power fails, all while maintaining 99% efficiency.

Q3: What is the benefit of a 1.0 Power Factor in a 30kVA UPS?

A: It means you get the full 30kW of real power. In traditional 0.8 PF UPS systems, a 30kVA unit would only provide 24kW. GVSUPS30KHS provides 25% more usable power in the same capacity.

Q4: Can I monitor this 30kVA UPS from my smartphone?

A: Yes. Through the EcoStruxure™ IT app, you can monitor real-time status, receive alerts, and track battery health 24/7 from anywhere in the world.

Q5: Does the GVSUPS30KHS support parallel operation?

A: Yes, Galaxy VS series supports parallel redundancy or capacity expansion (depending on configuration), allowing your power infrastructure to scale with your business.
