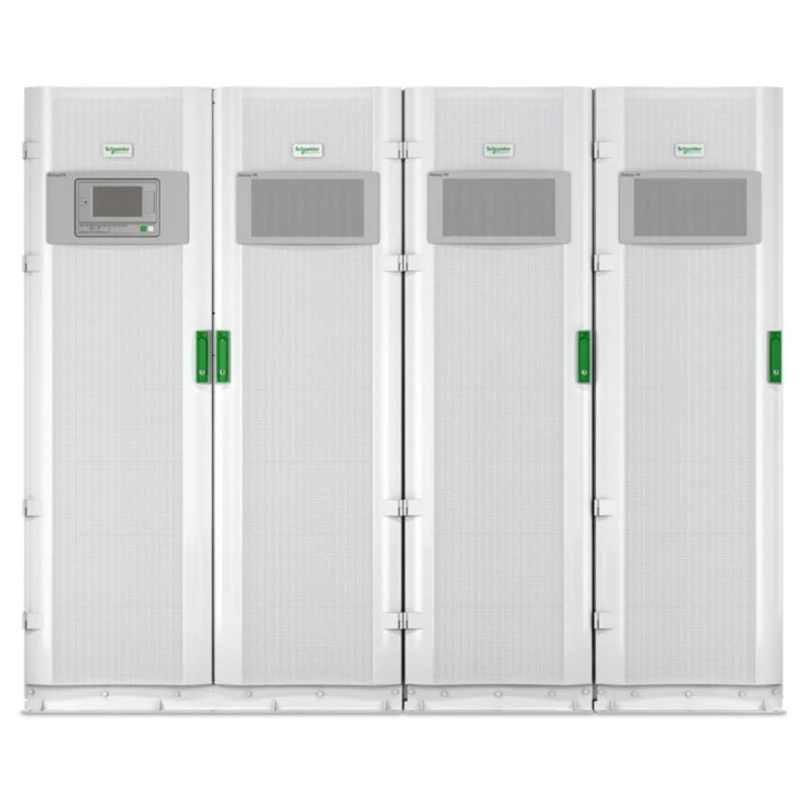

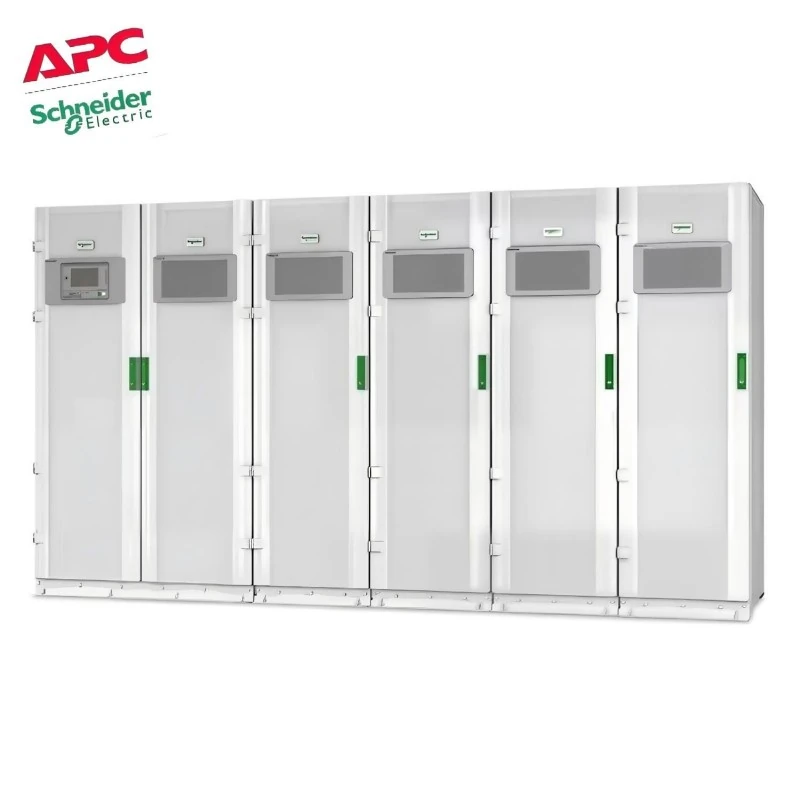

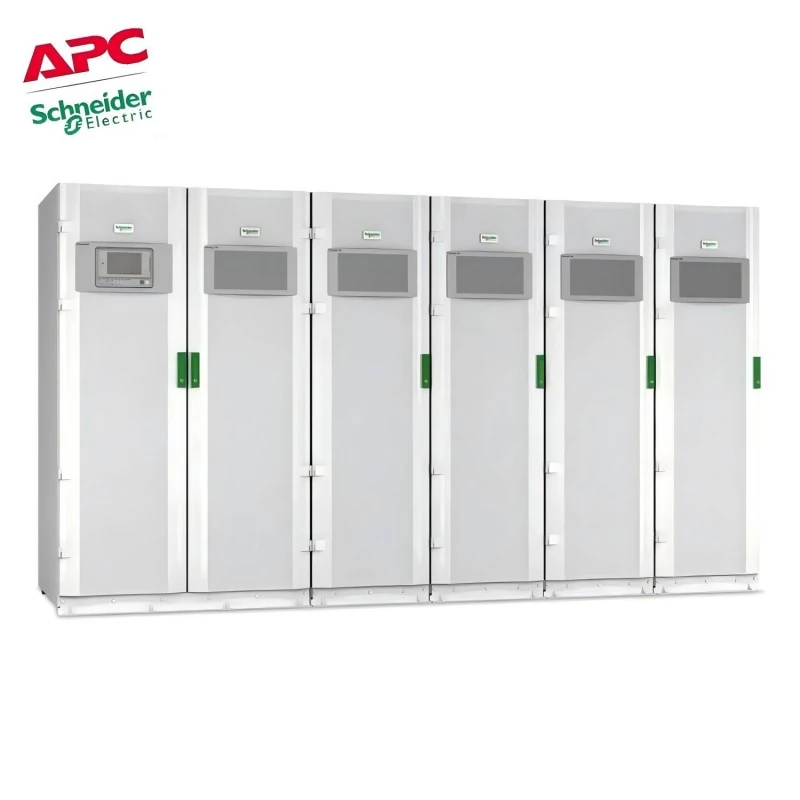

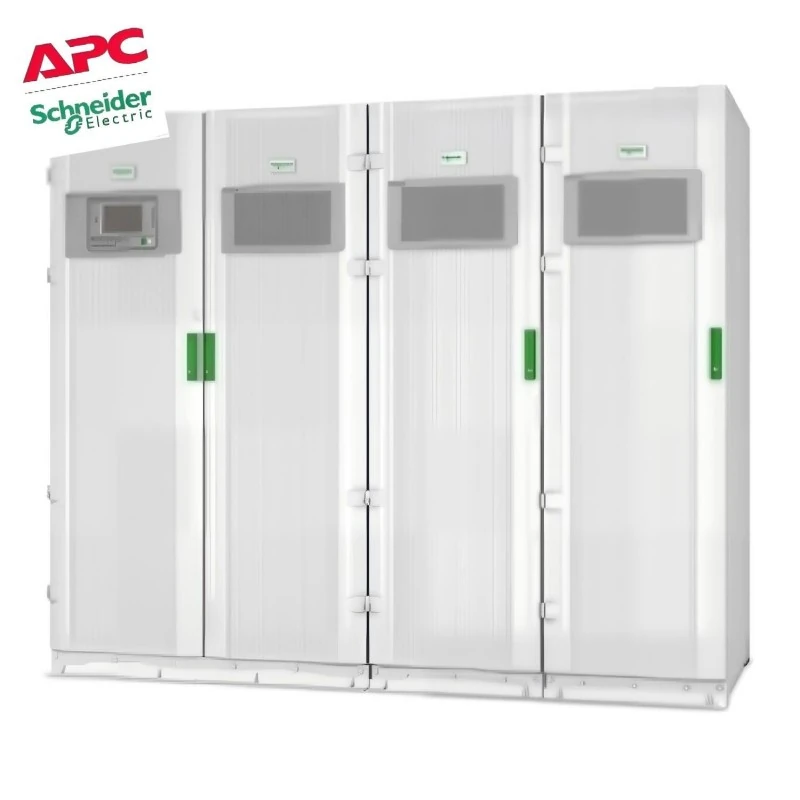

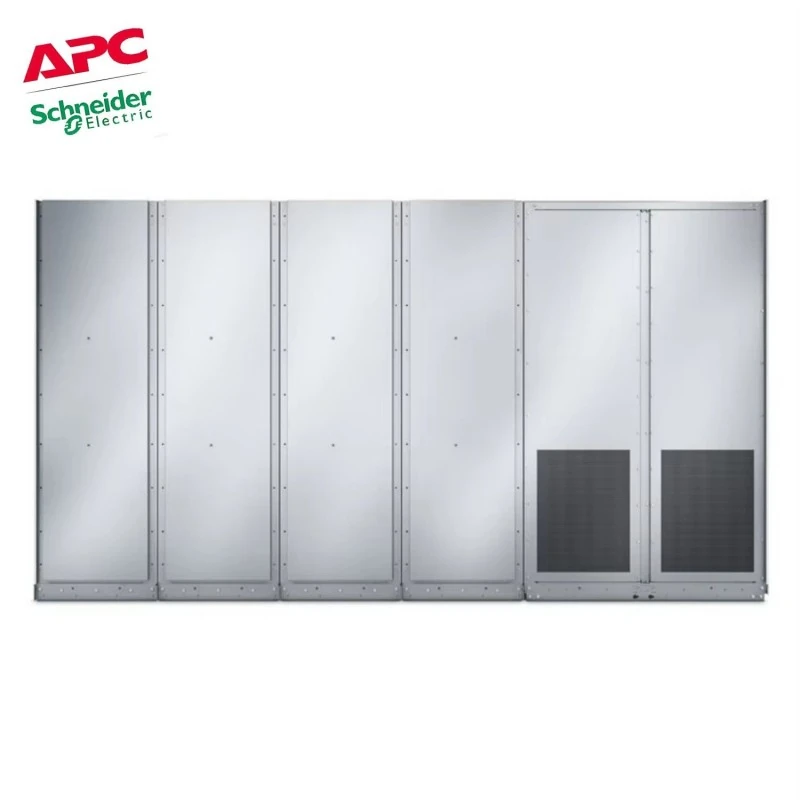

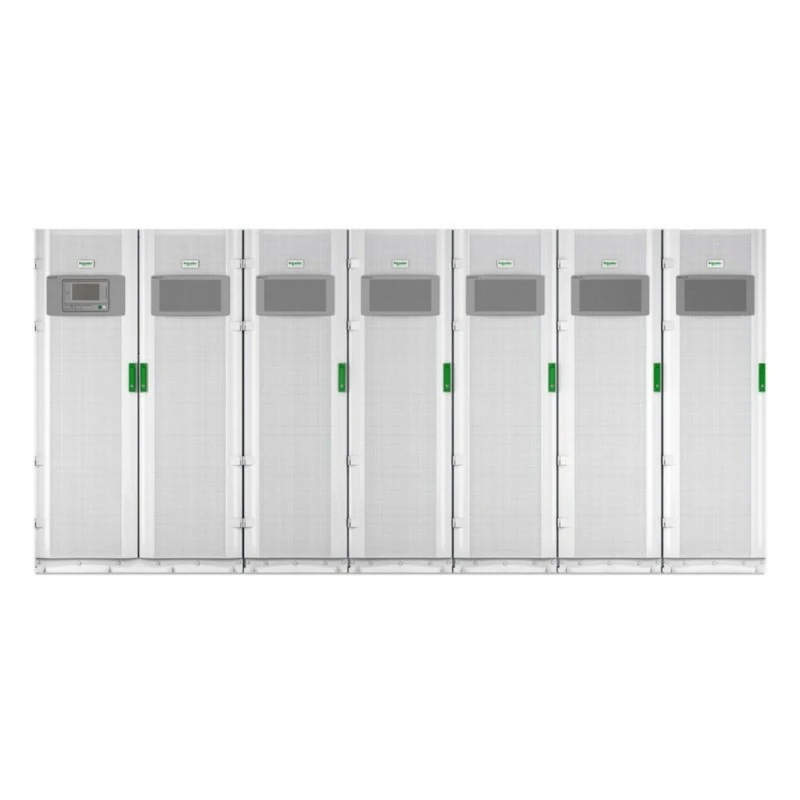

Schneider Galaxy VX UPS 1000kW 1250kW 1500kW | Scalable High-Efficiency 3-Phase Power

The Schneider Galaxy VX UPS is a highly efficient, modular 3-phase power protection solution designed for hyperscale data centers, large colocation facilities, and mission-critical industrial enterprises. Leveraging a unique 250kW power cabinet architecture, the Galaxy VX provides seamless scalability from 1000kW up to 1500kW (including 1500kW N+1 redundancy). Featuring Schneider’s patented ECOnversion™ technology, it delivers an industry-leading 99% efficiency, significantly lowering the total cost of ownership (TCO) while ensuring maximum availability through its robust, redundant N+X configuration.

Key Functions and Features

Unrivaled ECOnversion™ Efficiency: Achieves up to 99% efficiency without compromising power quality. It provides Class 1 power protection (per IEC 62040-3), effectively filtering harmonics while slashing energy waste and cooling costs.

Flexible 250kW Modular Design: Built with high-density 250kW power cabinets, allowing for granular scalability and simplified maintenance for mega-scale power requirements.

Double Conversion Mode (97% Efficiency): Utilizes a 4-level inverter technology to provide 97% efficiency in standard online double conversion mode, ensuring pure sine wave output even in harsh electrical environments.

N+X Redundant Configuration: Supports internal and system-level N+1 or N+X redundancy, ensuring that the critical load remains protected even during component service or failure.

Advanced Battery Management: Fully compatible with high-performance Lithium-ion battery solutions, VRLA, and Ni-Cd batteries, offering flexible energy storage and rapid charging capabilities.

EcoStruxure™ IT Integration: Enables 24/7 cloud-based monitoring and predictive maintenance, providing data-driven insights to prevent downtime across large-scale infrastructure.

Technical Specifications

Specification Item	Technical Detail (Galaxy VX Series)
Power Capacity Options	1000kW / 1250kW / 1500kW
Modularity Architecture	250kW Power Cabinets
Output Power Factor	1.0 (Unity: kVA = kW)
UPS Topology	Online Double Conversion / ECOnversion™
Nominal Input/Output Voltage	380V / 400V / 415V / 440V / 480V
Efficiency (ECOnversion™ Mode)	Up to 99%
Efficiency (Online Mode)	Up to 97% (4-Level Inverter Tech)
Redundancy Support	N+1 / N+X Redundant Configuration
Total Harmonic Distortion (THDI)	< 3% at Full Load
Operating Temperature	0°C to 40°C
Parallel Capability	Up to 4000kW (Multiple Systems in Parallel)
Dimensions (Single Cabinet)	Approx. 1000 x 900 x 1970 mm (per 250kW unit)
Standard Compliance	IEC 62040-1, IEC 62040-2, CE, TUV, RCM

Wide Range of Applications

The Galaxy VX series is engineered for the world’s most demanding large-scale power environments:

Hyperscale & Cloud Data Centers: Provides high-density, high-efficiency power for massive server farms and cloud infrastructure.

Large Industrial Enterprises: Ideal for semiconductor plants, automotive manufacturing, and heavy chemical industries.

Colocation Facilities: Scalable 250kW building blocks allow providers to expand power capacity in line with customer demand.

Critical Infrastructure: Ensures power reliability for large-scale transportation hubs (airports, metros) and utility control centers.

Financial Services: Protects core banking systems and global stock exchange data centers from any power disruption.

Our Factory

apc back ups family bk500m ch 500va/300w standby ups with built in battery

Our Certifcate

Exhibition

Packaging & Shipping

Frequently Asked Questions (FAQ)

Q1: How does ECOnversion™ benefit large-scale TCO?

A: In a 1500kW system, moving from 94% efficiency to 99% ECOnversion™ efficiency can save hundreds of thousands of dollars in annual electricity and cooling costs, effectively paying for the UPS system within a few years.

Q2: What is the benefit of the 250kW power cabinet design?

A: The modular 250kW cabinets allow for easier installation, faster serviceability, and granular scalability. You can expand the system capacity or add redundancy (N+1) without replacing the entire infrastructure.

Q3: Can Galaxy VX operate with Lithium-ion batteries?

A: Yes. Galaxy VX is fully optimized for Lithium-ion batteries, which offer a 10-15 year service life, reduced weight by 60%, and much smaller footprint compared to traditional VRLA batteries.

Q4: Does it support N+X redundancy at the system level?

A: Absolutely. Galaxy VX can be configured for N+1 or N+X redundancy, allowing the system to continue supporting the full load even if one power module or an entire cabinet is offline for maintenance.

Q5: Is the system compatible with different global voltages?

A: Yes, Galaxy VX supports a wide range of input and output voltages (380V to 480V), making it a global solution for international data centers and industrial projects.
