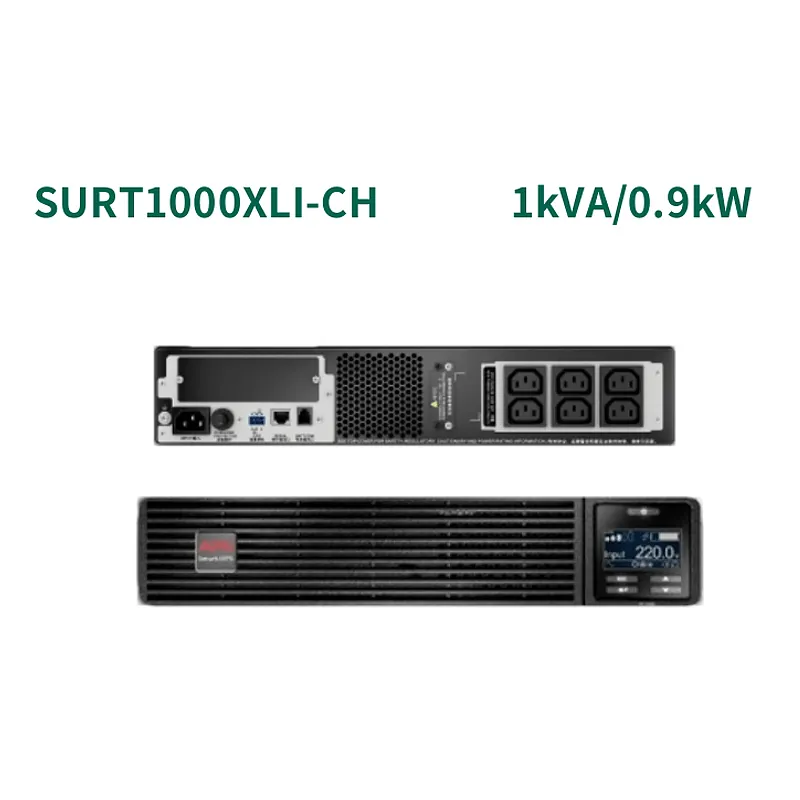

APC Smart-UPS SURT1000XLI-CH 1000VA/900W Online Double Conversion UPS with Built-in Battery

The APC Smart-UPS SURT1000XLI-CH is a high-performance 1kVA/900W Online Double Conversion Uninterruptible Power Supply. Engineered to deliver ultimate power protection, it features a highly flexible Rack/Tower convertible design (2U). This UPS continuously regulates voltage and frequency, providing a calibrated pure sine wave output with zero transfer time—ensuring no interruption from mains to battery power. Equipped with a built-in maintenance-free VRLA battery, an Emergency Power Off (EPO) function, and a high power factor of 0.9, it is the ideal choice for safeguarding highly sensitive communication equipment, servers, and industrial controls.

Key Functions and Features

High Availability & Pure Power

Zero Transfer Time: True online double conversion topology guarantees zero milliseconds of interruption when switching to battery power, ensuring seamless operation for critical loads.

Wide Input Voltage Range: Supports 160275 VAC at full load (and 100275 VAC with derating), effectively reducing unnecessary battery usage and extending battery lifespan.

Generator Compatible: Provides a calibrated pure sine wave output and actively corrects frequency variations, making it perfectly compatible with backup power generators.

Smart Battery Management

Hot-Swappable Batteries: The load can work continuously without interruption while the user safely replaces the internal batteries.

Fast Charging System: The robust 1.8A charging current recovers power supply capabilities quickly, charging the battery to 90% in less than 3 hours.

Microprocessor Control: Uses advanced test diagnostic systems to control charging and maximize battery life. It also supports a “Cold Start” to activate the system even without mains power.

Flexible Design & Intelligent Management

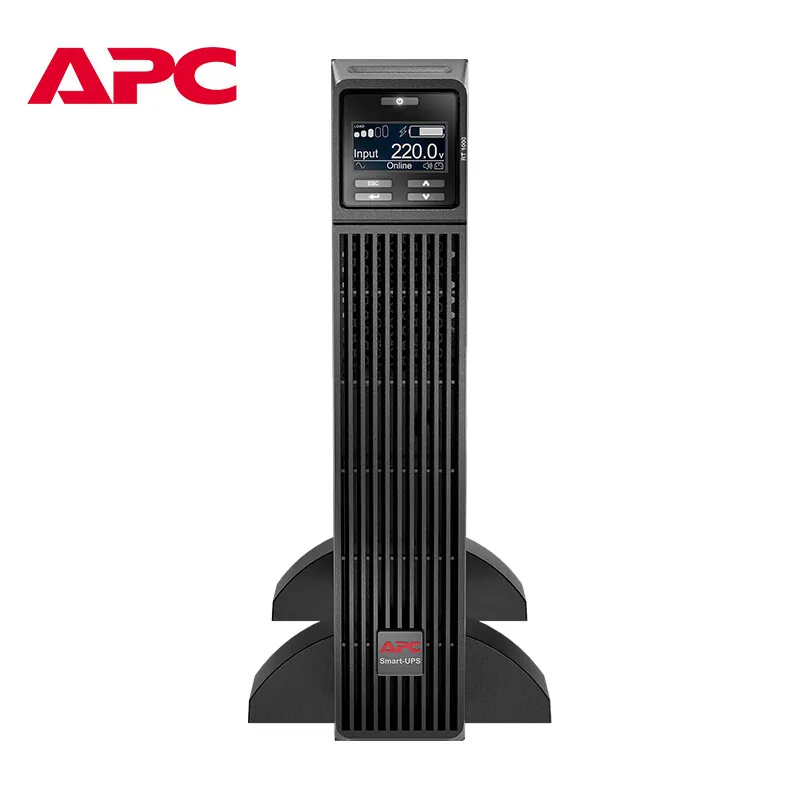

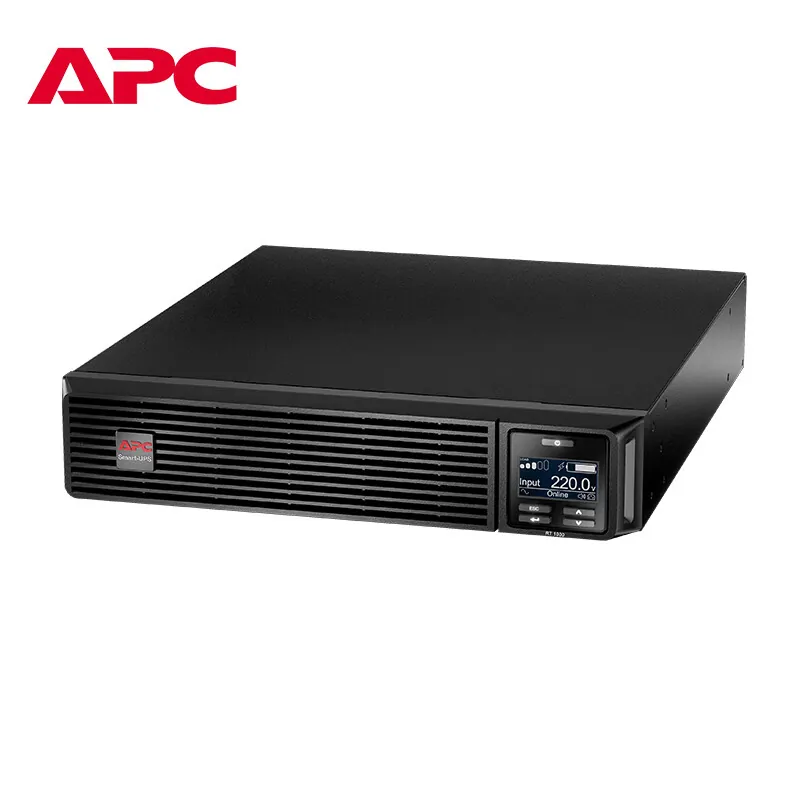

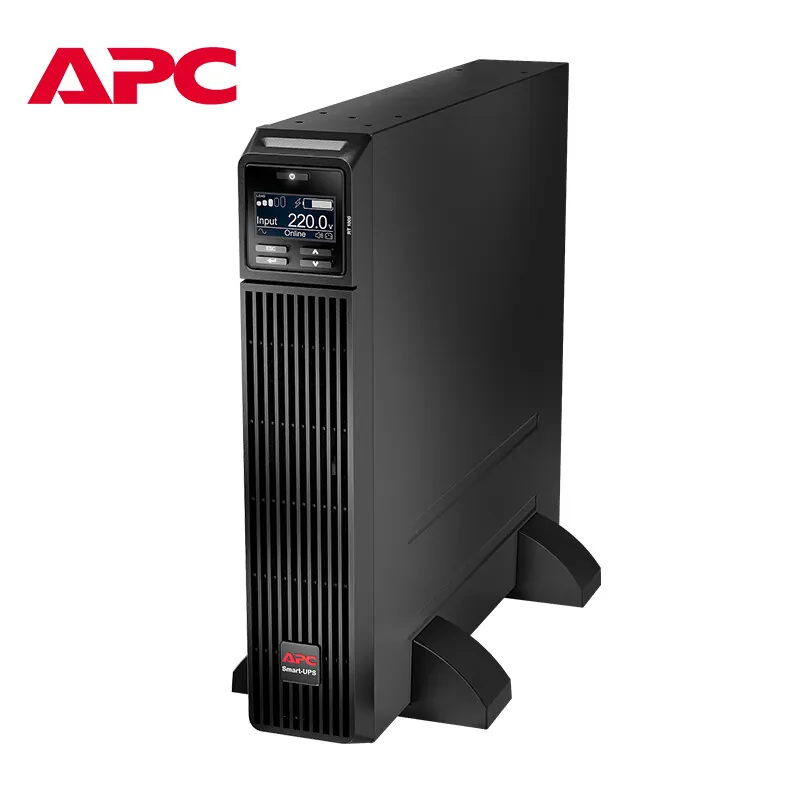

Rack/Tower Convertible: Fits into a standard 19-inch rack occupying only 2U of space (using the optional SURTRK-CH rail kit), or stands vertically as a tower.

Multifunctional LCD: An intuitive control panel provides real-time status updates.

Advanced Networking: Includes a SmartSlot for optional Web/SNMP management cards and supports PowerChute network shutdown software.

Technical Specifications

Specifications	SURT1000XLI-CH (Main Model)	SURT2000XLI-CH	SURT3000XLI-CH
Rated Capacity	1KVA / 0.9KW (900W)	2KVA / 1.8kW	3KVA / 2.7KW
Topology	Online Double Conversion	Online Double Conversion	Online Double Conversion
Input Voltage Range	160~275 VAC (Full load)	160~275 VAC (Full load)	160~275 VAC (Full load)
Output Waveform	Pure Sine Wave	Pure Sine Wave	Pure Sine Wave

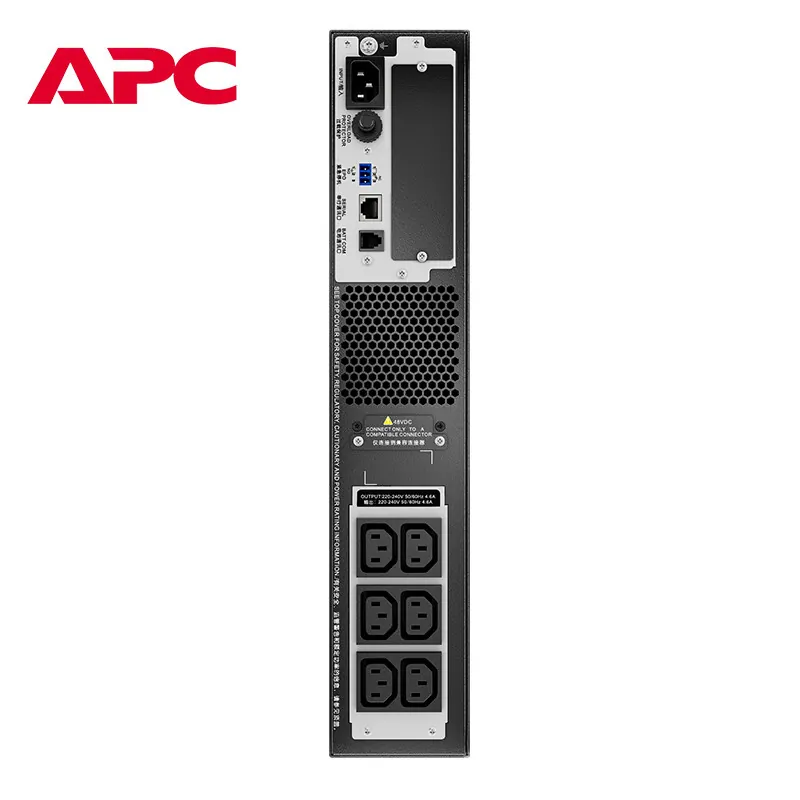

Output Interfaces	(6) IEC C13	(6) IEC C13	(8) IEC C13, (2) IEC C19
Input Interface	IEC C14	IEC C14	IEC C20
Full-Load Efficiency	90% (Online) / 96% (High-Efficiency)	91% (Online)	92% (Online)
Battery Type	VRLA built-in (Hot-swappable)	VRLA built-in	VRLA built-in
Typical Runtime (Half/Full)	28.3 minutes / 10.8 minutes	11.7 mins / 3.4 mins	10.9 mins / 3.4 mins
Charging Time to 90%	< 3 hours (1.8A charging current)	< 3 hours	< 3 hours
Emergency Power Off (EPO)	Yes	Yes	Yes
Communication Interface	SmartSlot, Serial port	SmartSlot, Serial port	SmartSlot, Serial port

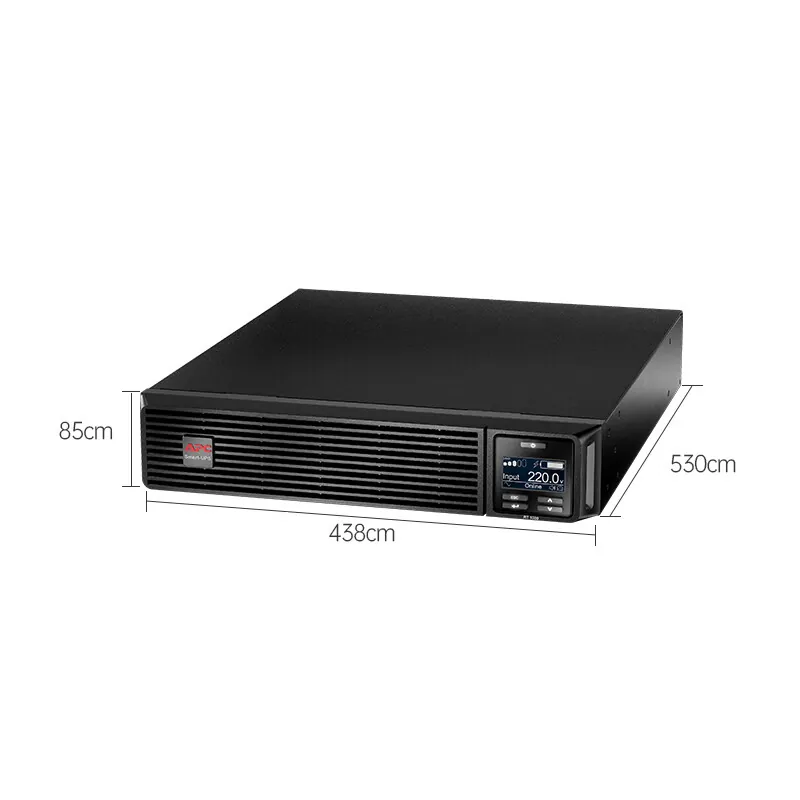

Dimensions (W×H×D)	438 × 85 × 530 mm (2U)	438 × 85 × 530 mm (2U)	438 × 130 × 557 mm (3U)
Net Weight	22.25 kg	22.50 kg	29.90 kg

Wide Range of Applications

Because of its zero transfer time and strict voltage regulation, the SURT1000XLI-CH is the ultimate power protection solution for:

Telecommunications: Ensuring no dropped connections for communication hubs and sensitive routing equipment.

Data Centers & IT Racks: Its 2U convertible design is perfect for protecting high-density servers and storage networks.

Medical & Lab Equipment: Delivering pure sine wave power free of harmonic distortion for sensitive diagnostic machines.

Industrial Control Systems: The EPO feature and wide input voltage range make it safe and reliable for manufacturing floors and automation controls.

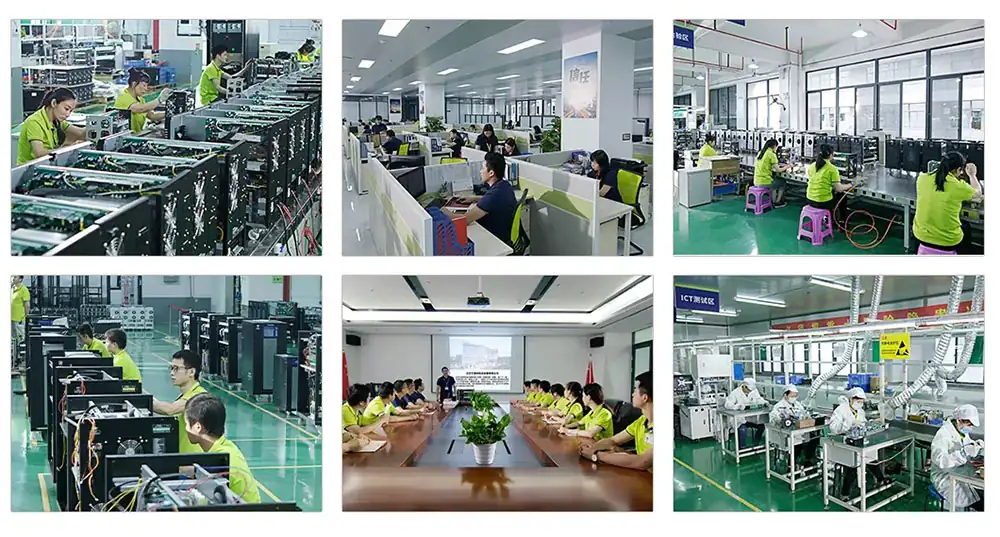

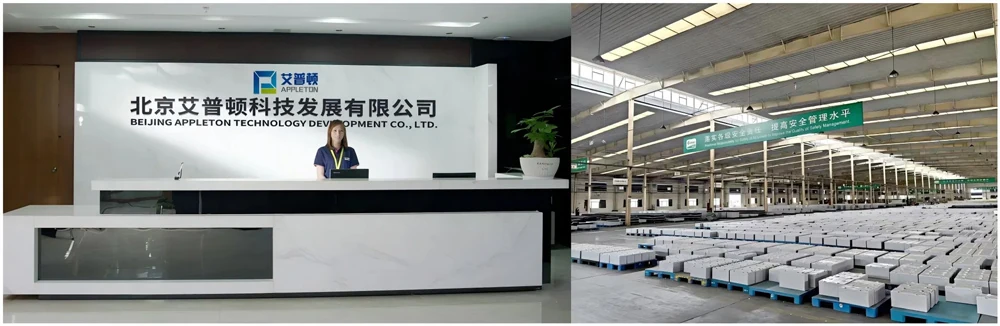

Our Factory

apc back ups family bk500m ch 500va/300w standby ups with built in battery

Our Certifcate

Exhibition

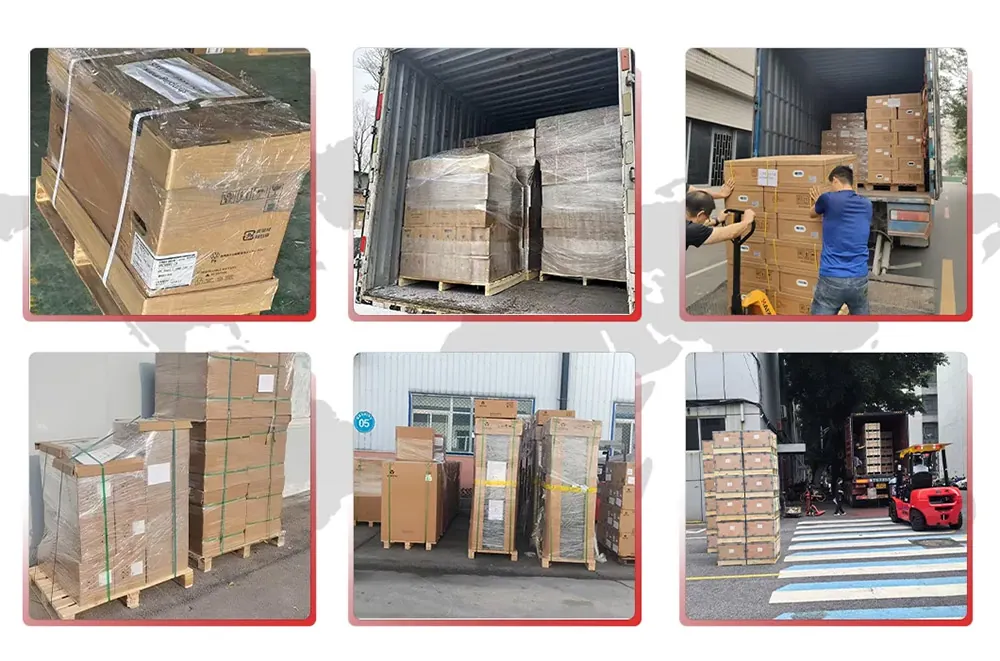

Packaging & Shipping

Frequently Asked Questions (FAQ)

Q1: What does “Online Double Conversion” mean for the SURT1000XLI-CH?

A: It means the UPS continuously converts AC power to DC and then back to highly regulated AC power. This provides a zero transfer time to the battery during a blackout, ensuring your critical equipment experiences absolutely no power interruption.

Q2: Is this a Rack-mounted or Tower UPS?

A: The SURT1000XLI-CH features a Rack/Tower convertible design. You can stand it vertically as a tower or mount it in a standard 19-inch IT rack where it occupies only 2U of space (requires the SURTRK-CH guide rail).

Q3: Can I replace the battery without turning off the connected equipment?

A: Yes! This UPS features hot-swappable batteries. The load can work continuously while the user safely replaces the APCRBC48BP-CH internal battery pack.

Q4: How long will the battery last during an outage?

A: With the built-in VRLA battery, it provides an impressive typical runtime of 28.3 minutes at half load and 10.8 minutes at full load (900W).

Q5: Does this model support Emergency Power Off (EPO)?

A: Yes, it is equipped with an EPO connector, allowing the UPS to be immediately shut down from a central fire alarm or emergency switch system, meeting strict data center safety regulations.
