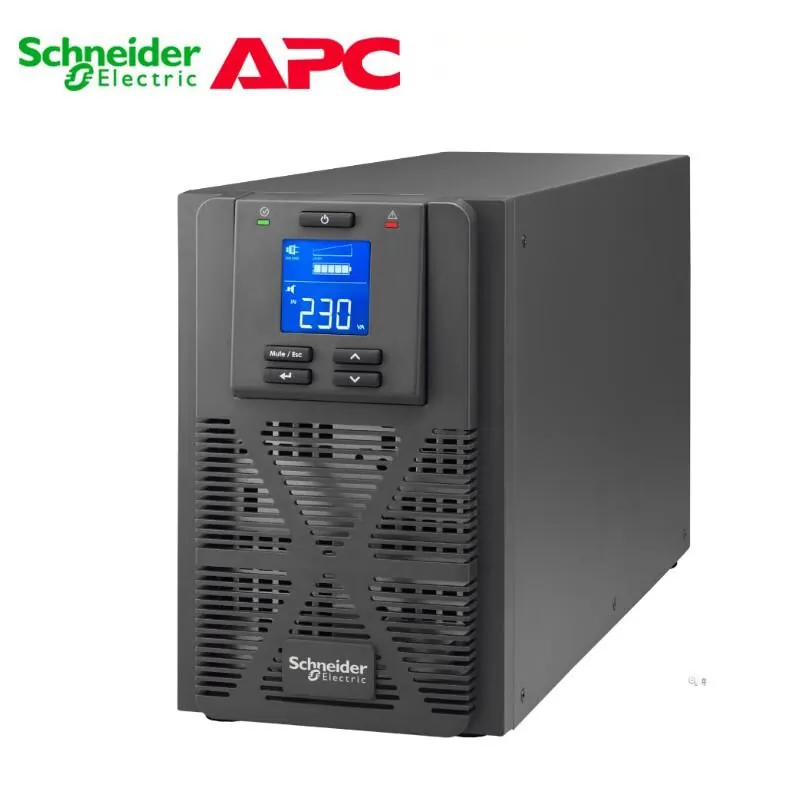

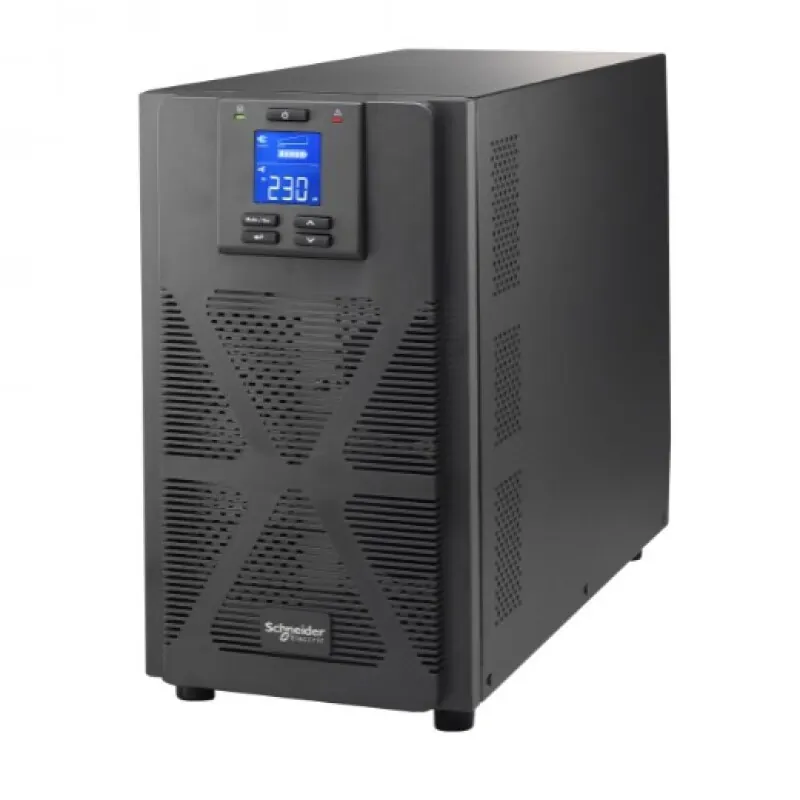

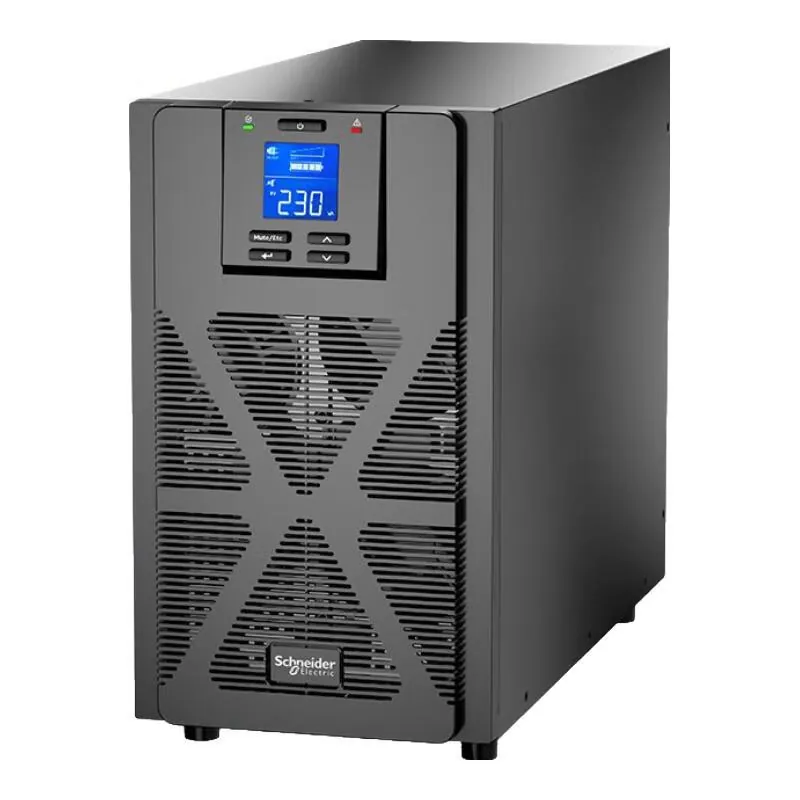

APC by Schneider Electric SP Series SPM1KL 1000VA/800W Online Tower UPS (Long Backup / Without Battery)

The APC SP Series SPM1KL is a professional-grade 1kVA/800W Online Tower Type Uninterruptible Power Supply (UPS) designed by Schneider Electric. As a Long Backup model (Without Built-in Battery), it is engineered to connect to an external 36V battery bank, allowing users to fully customize the discharge time based on their specific backup requirements. Adopting a true online double-conversion structure, it delivers pure sine wave power to critical loads. Featuring conformal-coated circuit boards for harsh environments and an ultra-wide input voltage range, the SPM1KL ensures exceptional operational reliability for communication systems, lighting, and industrial controls.

Key Functions and Features

Customizable Long-Duration Backup

External Battery Configuration: Designed without internal batteries (Equipment Mode: External Battery), it connects to a 36V external battery system, breaking the limitations of standard backup times and fulfilling extended duration needs for mission-critical operations.

Online Double Conversion: Provides zero transfer time and pure sine wave output, isolating equipment from power grid anomalies.

High Reliability in Harsh Environments

Conformal Coating: The internal circuit boards are protected with conformal coating, significantly improving the UPS’s reliability in dusty, humid, or harsh industrial environments.

Wide Input Voltage: Supports an exceptional input range of 110-300VAC, reducing unnecessary battery usage cycles and extending battery life.

Generator Compatible: Supports stable operation within a frequency range of 40~70Hz in generator mode.

High Ease of Use & Intelligent Management

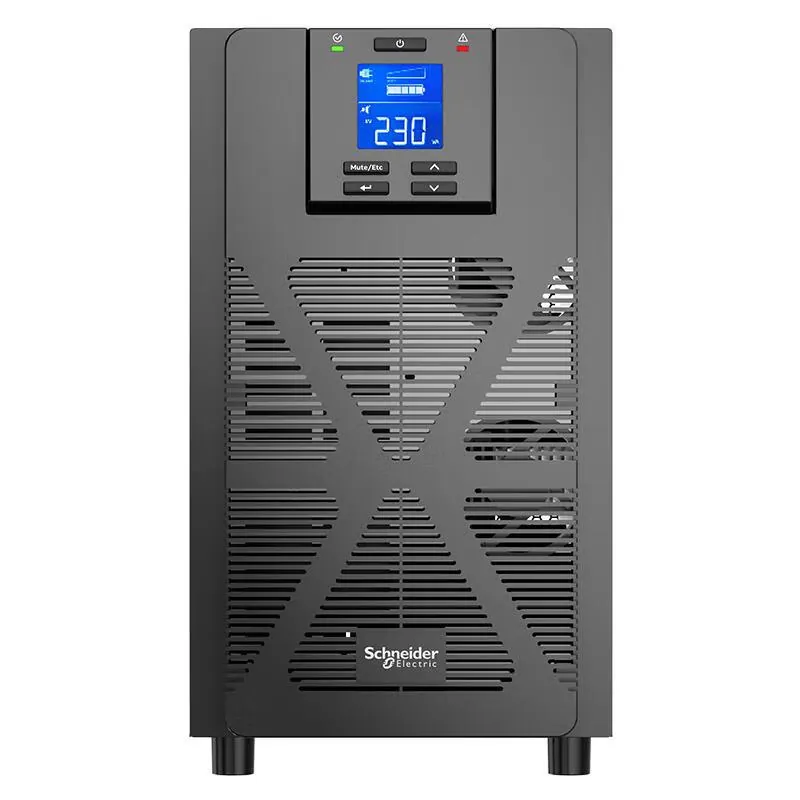

LCD Display: Features a clear LCD interface for quick and convenient parameter settings and monitoring.

Standard Communication: Equipped with RS232 and USB interfaces.

Smart Expansion: Includes a smart card slot that supports optional SNMP cards, Modbus cards, dry contact cards, and environmental monitoring cards for advanced network management.

Technical Specifications

Specifications	SPM1KL (Long Backup / Main Model)	SPM1K (Standard Model)	SPM2KL (Reference)
Output Power	800 W / 1000 VA	800 W / 1000 VA	1600 W / 2000 VA
Input Voltage Range	110 - 300 VAC	110 - 300 VAC	110 - 300 VAC
Output Voltage	220(Default) / 230 / 240 VAC	220/230/240 VAC	220/230/240 VAC
Output Waveform	Online double conversion, Pure sine wave	Pure sine wave	Pure sine wave
Battery Inclusion	N/A (Without Battery)	9Ah × 2 (Built-in)	N/A (Without Battery)
Required Battery Voltage	36V (External)	24V (Internal)	72V (External)
Backup Time	Depends on external battery capacity	> 4 minutes (Full load)	Depends on external battery capacity

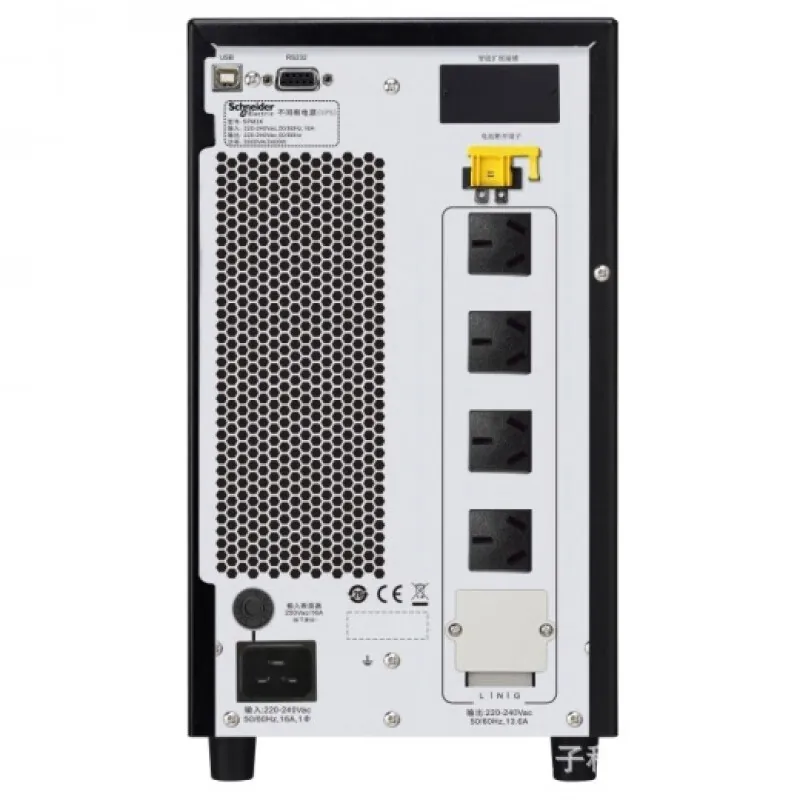

Output Terminals	National standard sockets × 4	National standard sockets × 4	National standard sockets × 4
Input Terminals / Protection	IEC C14 / 10A protector	IEC C14 / 10A protector	IEC C20 / 16A protector
Display & Interface	LCD / RS232 / USB / Smart Slot	LCD / RS232 / USB / Smart Slot	LCD / RS232 / USB / Smart Slot
Dimensions (W×D×H)	145 × 288 × 223 mm	145 × 288 × 223 mm	145 × 400 × 238 mm
Net Weight	4.4 kg (Lightweight due to no internal battery)	9.3 kg	7.4 kg

Wide Range of Applications

Schneider Electric’s SP series SPM1KL UPS provides professional, long-lasting power protection for users’ critical loads. It is highly suitable for:

Telecommunications: Ensuring uninterrupted power for base stations, communication networks, and long-duration routing equipment.

Government & Finance: Protecting critical servers and ATM networks during prolonged power outages.

Manufacturing & Industrial Control: Providing stable, pure sine wave power for PLCs and industrial PCs in harsh, dusty environments.

Healthcare & Transportation: Safeguarding continuous operation for diagnostic equipment and traffic control systems.

Our Factory

apc back ups family bk500m ch 500va/300w standby ups with built in battery

Our Certifcate

Exhibition

Packaging & Shipping

Frequently Asked Questions (FAQ)

Q1: What is the main difference between the SPM1KL and the SPM1K models?

A: The SPM1KL is a “Long Backup” model that comes without built-in batteries (net weight only 4.4kg). It is designed to connect to an external 36V battery bank to provide hours of customized backup time. The SPM1K is the standard model with built-in batteries (providing ~4 mins at full load).

Q2: What is the external battery voltage requirement for the SPM1KL?

A: The SPM1KL requires an external battery system configured to 36V. The total backup time will depend entirely on the Amp-hour (Ah) capacity of the external batteries you choose to connect.

Q3: Can this UPS operate reliably in harsh or dusty environments?

A: Yes, the SPM1KL features circuit boards protected with conformal coating, significantly improving its operational reliability and lifespan in harsh industrial or humid environments.

Q4: Does the SPM1KL support remote network monitoring?

A: Absolutely. It comes standard with an LCD display, RS232, and USB interfaces. Additionally, it features a smart card slot that supports optional SNMP cards, Modbus cards, and dry contact cards for comprehensive remote management.

Q5: What are the packaging dimensions and gross weight?

A: The SPM1KL is packaged in a sturdy carton measuring 33 × 36.5 × 23.5 cm, with a gross transport package weight of 5.9 kg. The official HS Code is 8504402000.
