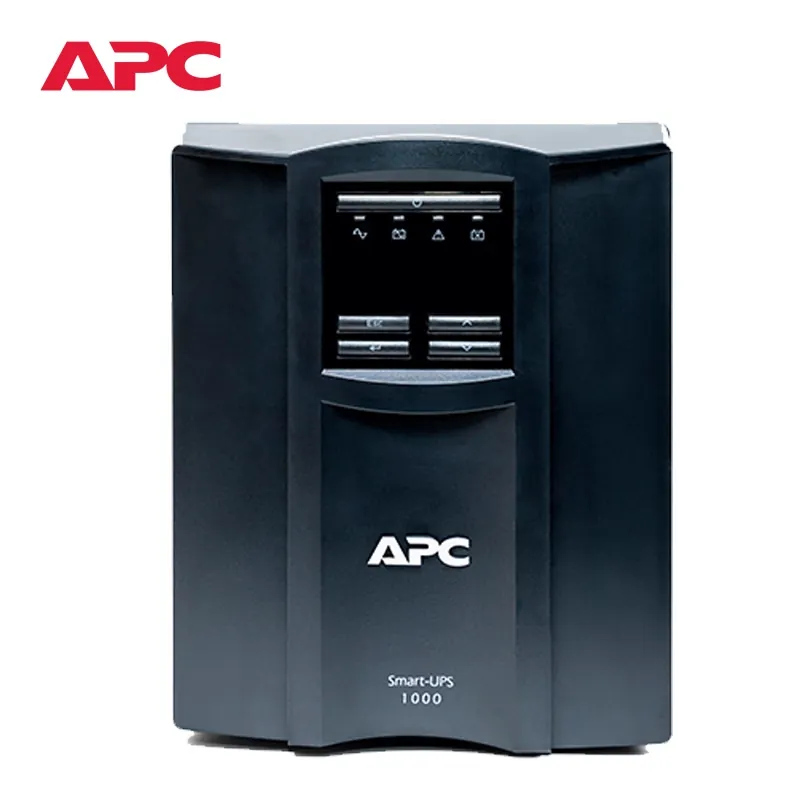

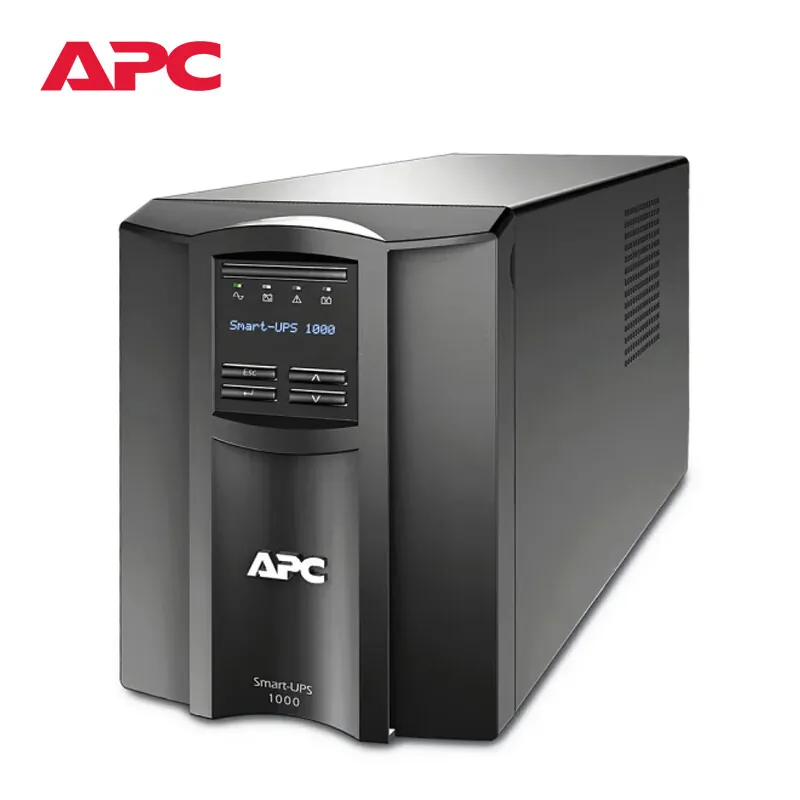

APC Smart-UPS SMT Series SMT1000I-CH 1000VA/700W Online Interactive Tower UPS with Built-in Battery

The globally renowned APC Smart-UPS™ has been widely used in server, storage, and network power protection for more than 30 years. The SMT1000I-CH is a premium 1000VA/700W Online Interactive (Line-Interactive) Tower Type Uninterruptible Power Supply. It provides excellent availability and manageability for your network, protecting key data and sensitive devices from power problems and grid interference. Delivering clean, reliable network-grade pure sine wave power, this UPS is trusted by IT administrators worldwide to ensure continuous, trouble-free operation for communication systems, business servers, and critical lighting.

Key Functions and Features

Network-Grade Pure Power

Pure Sine Wave Output: Ensures absolute compatibility for active PFC (power factor corrected) servers and sensitive electronics, providing less than 5% output voltage distortion at full load.

Robust Surge Protection: Equipped with a 459 Joules surge energy rating to actively defend your hardware against dangerous voltage spikes and lightning.

Advanced Output Control

Controllable Output Socket Group: Unlike entry-level models, the SMT1000I-CH features 1 controllable output socket group. This allows IT admins to reboot hung devices remotely, shed non-critical loads to extend runtime, and sequence start-ups/shut-downs.

High Efficiency & Wide Input Range

96% Full Load Efficiency: Optimizes power usage to significantly reduce utility power costs and minimize heat generation, extending component lifespan.

Wide Input Voltage: Supports a broad input voltage range of 160V to 287V, effectively correcting low and high voltage conditions without unnecessarily draining the internal battery.

Intelligent Communications and Management

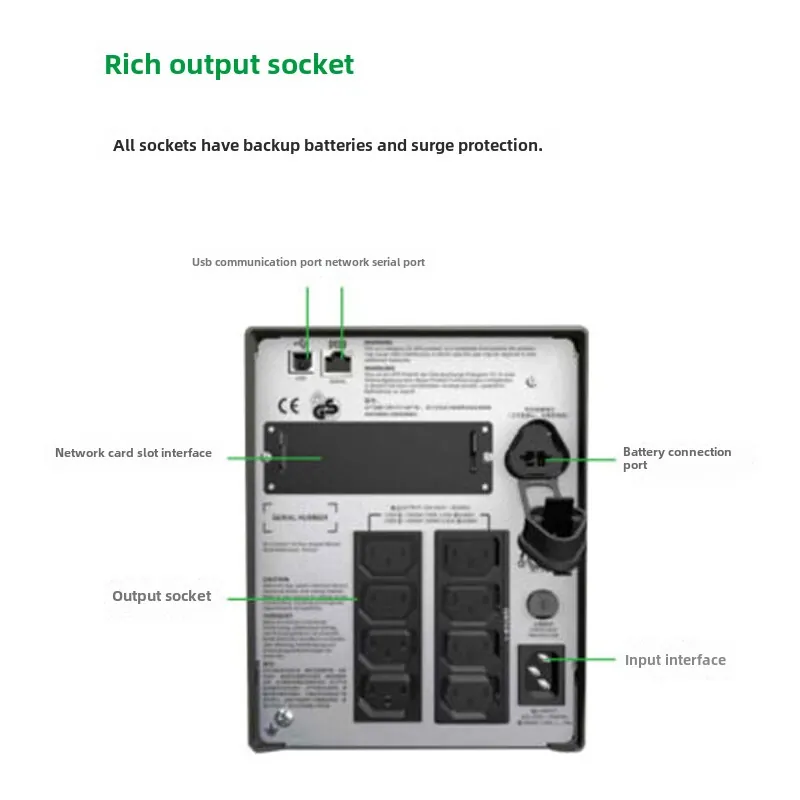

SmartSlot™ Ready: Features an APC SmartSlot™ communication card slot, allowing users to install network management cards for advanced remote monitoring.

Comprehensive Interfaces: Includes standard USB and Serial (RJ-45 10-pin) communication ports.

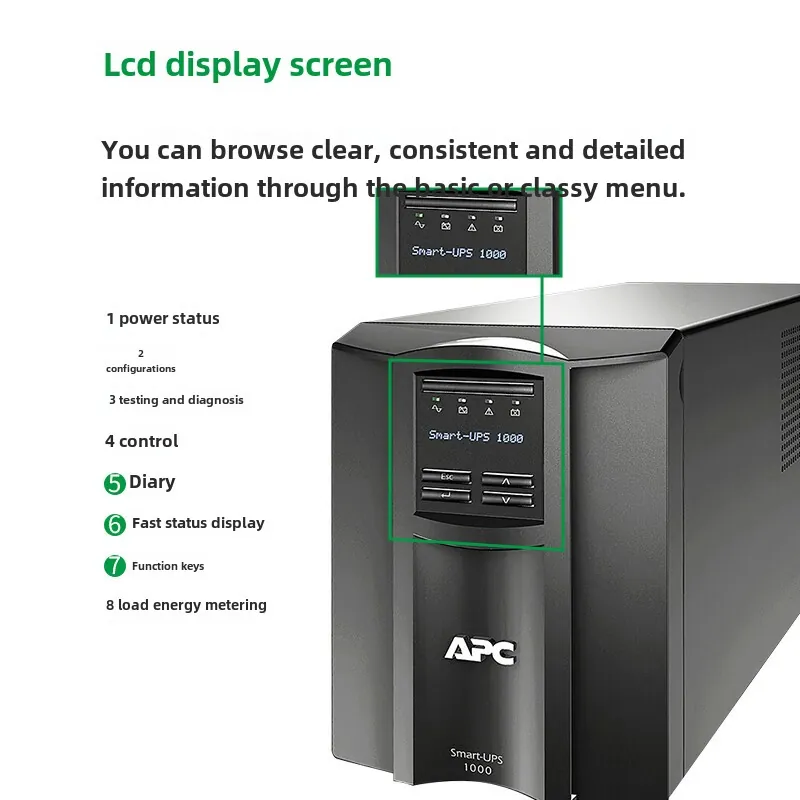

Intuitive Control Panel: An easy-to-read LCD display and LED status indicators provide real-time updates on power conditions.

Technical Specifications

Specifications	SMT750I-CH	SMT1000I-CH (Main Model)	SMT1500I-CH
Output Power Capacity	500W / 750VA	700W / 1000VA	1000W / 1500VA
Topology	Online Interactive	Online Interactive	Online Interactive
Rated Output Voltage	230V	230V	230V
Output Waveform	Sine Wave	Sine Wave	Sine Wave
Input Voltage Range	160V - 287V	160V - 287V	160V - 287V

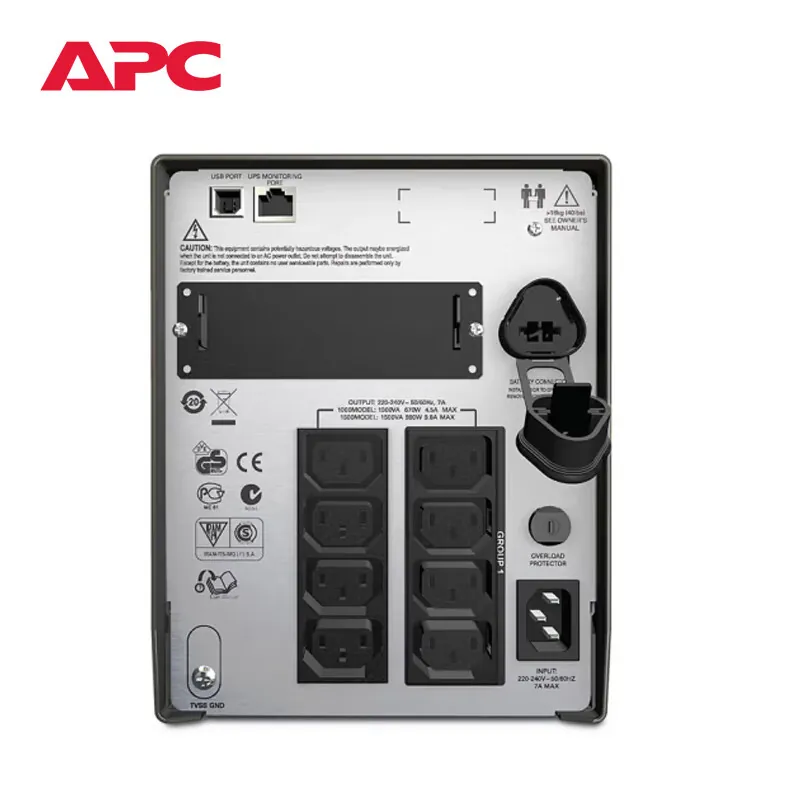

Output Interfaces	(6) IEC 320 C13	(8) IEC 320 C13	(8) IEC 320 C13
Controllable Socket Group	None	Yes (1 Group)	Yes (1 Group)
Input Interface	IEC 320 C14	IEC 320 C14	IEC 320 C14
Full Load Efficiency	96%	96%	96%
Battery Type	Sealed, maintenance-free	Sealed, maintenance-free (VRLA)	Sealed, maintenance-free
Typical Runtime (Half/Full)	16 mins / 4.6 mins	20 mins / 5.8 mins	23 mins / 6.5 mins
Surge Protection Rating	540 Joules	459 Joules	365 Joules
Communication Interface	RJ-45, USB, SmartSlot™	RJ-45, USB, SmartSlot™	RJ-45, USB, SmartSlot™
Dimensions (H×W×D)	157 × 138 × 358 mm	219 × 171 × 439 mm	219 × 171 × 439 mm
Net Weight	13.15 kg	18.82 kg	24.04 kg

Wide Range of Applications

The APC Smart-UPS SMT1000I-CH provides highly manageable, network-grade power protection for:

Business Servers & Storage: Safeguarding essential data servers, Network Attached Storage (NAS), and avoiding data corruption during sudden blackouts.

Networking Equipment: Protecting core network switches, routers, and PBX systems to maintain enterprise connectivity.

Retail & POS Systems: Ensuring uninterrupted operation for Point of Sale terminals and transaction processing hardware.

Remote IT Environments: Utilizing the controllable socket group to manage devices remotely in unmanned edge computing locations.

Our Factory

apc back ups family bk500m ch 500va/300w standby ups with built in battery

Our Certifcate

Exhibition

Packaging & Shipping

Frequently Asked Questions (FAQ)

Q1: What type of output waveform does the SMT1000I-CH produce?

A: It utilizes an Online Interactive (Line-Interactive) topology to output a pure sine wave. This provides the highest level of compatibility and protection for sensitive IT equipment and active PFC power supplies.

Q2: What is the “Controllable output socket group” feature?

A: The SMT1000I-CH features one independently controllable socket group. This advanced feature allows administrators to remotely reboot specific hung devices, sequence start-ups/shut-downs, or shed non-critical loads to preserve battery runtime for vital equipment.

Q3: How much backup runtime does this 1000VA UPS provide?

A: With its built-in maintenance-free lead-acid battery, it delivers approximately 20 minutes of runtime at half load, and 5.8 minutes at a full load of 700W.

Q4: Can I add a network management card for remote monitoring?

A: Yes! The SMT1000I-CH features an APC SmartSlot™ communication card slot, allowing you to easily install a network management card for comprehensive remote monitoring and control.

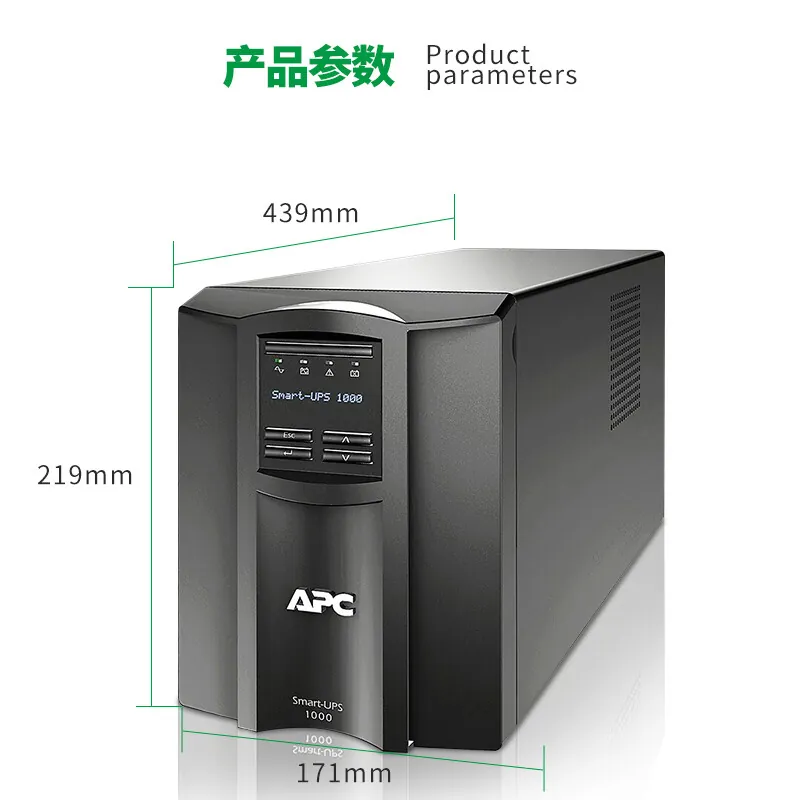

Q5: What are the dimensions and weight of this UPS?

A: It features a sleek tower design measuring 219 × 171 × 439 mm (H×W×D) with a net weight of 18.82 kg. The shipping package weighs 22.77 kg.
