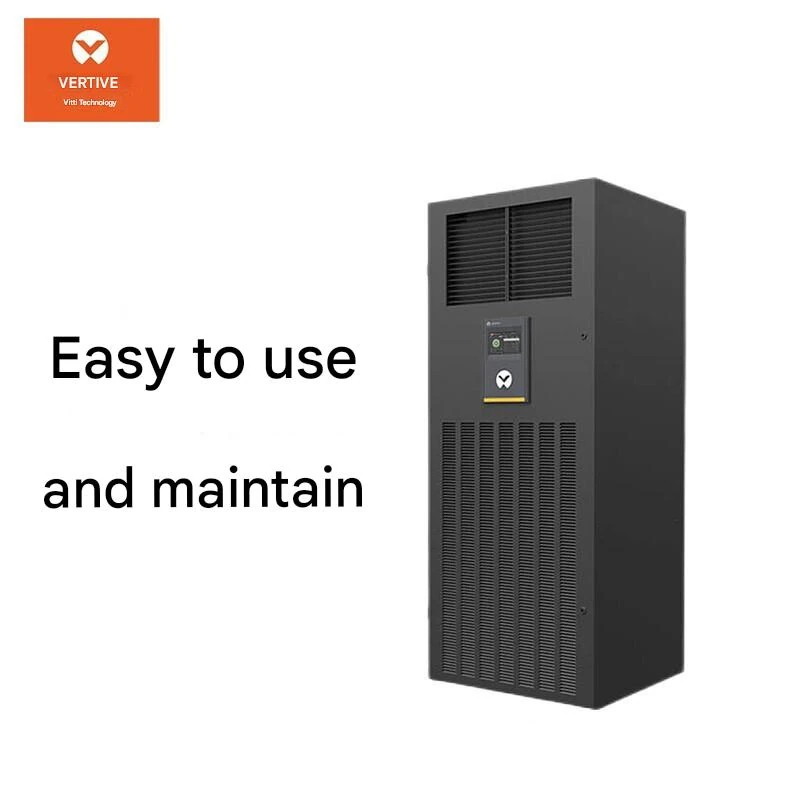

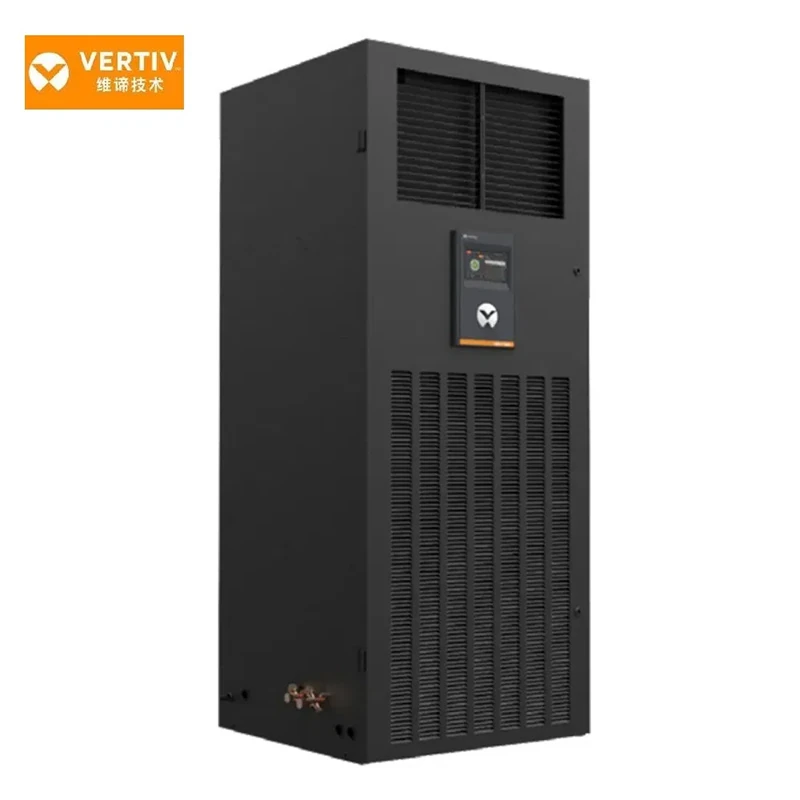

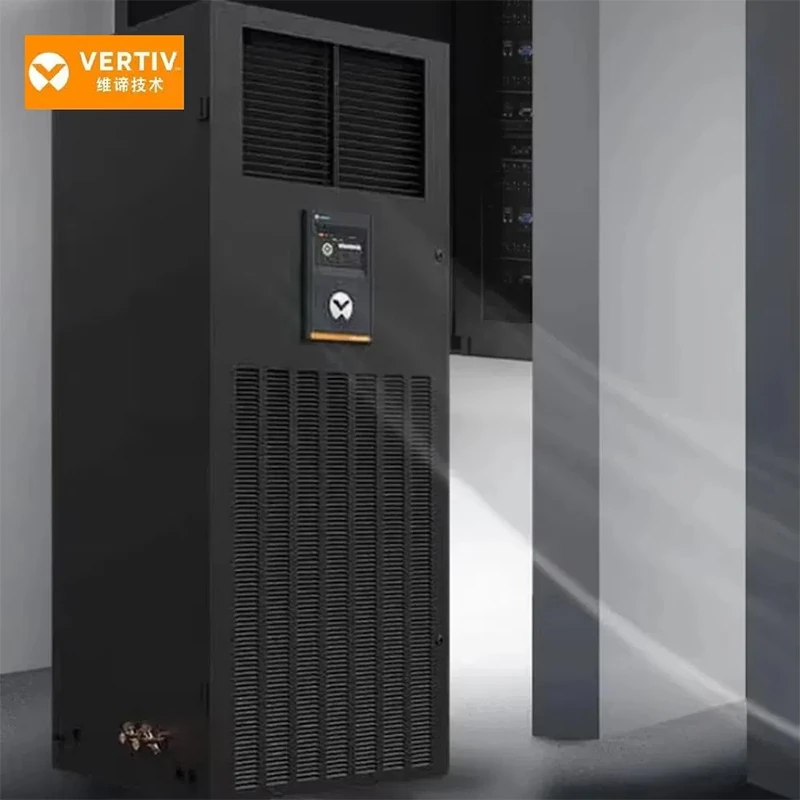

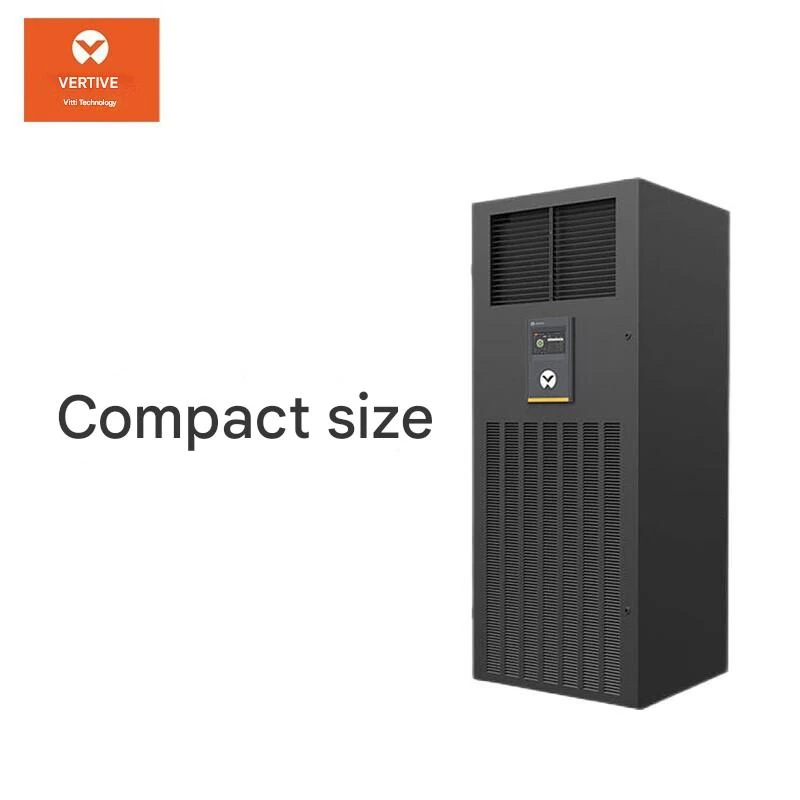

Vertiv DME Series DME05MHSUP1 5.5kW Precision Air Conditioner for Computer Rooms

The Vertiv DME05MHSUP1 is a high-performance, floor-standing precision air conditioner engineered specifically for data centers and critical computer rooms. Operating on a robust three-phase 380/400 VAC power supply, it delivers a precise 5.5kW cooling capacity (5.0kW sensible cooling). Designed with a highly efficient top air supply mechanism and built from ultrahigh corrosion durability galvanized sheet metal, this CRAC (Computer Room Air Conditioning) unit maintains constant temperature and humidity. With an ultra-low noise design and a proven lifespan of 10 to 15 years, the Vertiv DME series ensures maximum reliability for your mission-critical IT environments.

Key Functions and Features

Precise Constant Temperature & Humidity

Delivers 5.5kW of total cooling capacity and 5.0kW of sensible cooling capacity (at 24ºC, 50% RH).

Supports optional 3kW electric heating and a 1.5kg/h infrared humidifier, ensuring absolute environmental control to protect sensitive servers from overheating or static electricity.

Efficient Top Air Supply & Ultra-Low Noise

Utilizes a reliable Top Air Supply method with a powerful fan delivering a standard air volume of 2000 m³/h.

Engineered for Ultra-Low Noise operation, making it ideal for manned computer rooms and quiet data center environments.

Industrial-Grade Durability & Safety

Constructed with premium Galvanized Sheet air tubes, offering ultrahigh corrosion durability for long-term continuous operation.

Designed for a remarkable lifetime of 10 to 15 years.

Fully certified to meet international electrical and safety standards, including RoHS, ISO, CE, CCC, and CQC.

Robust Electrical Configuration

Floor-standing mounting ensures stability and ease of maintenance in server room aisles.

Technical Specifications (Vertiv DME Series)

Specifications	DME05 (Main Model)	DME07	DME12
Model NO.	DME05MHSUP1	DME07 Series	DME12 Series
Cooling Capacity	5.5 kW	7.5 kW	12.5 kW
Sensible Cooling (24ºC, 50%RH)	5.0 kW	7.0 kW	11.3 kW
Operating Voltage	380/400 VAC (3-Phase)	380/400 VAC	380/400 VAC
Air Supply Method	Top Air Supply	Top Air Supply	Top Air Supply
Standard Air Volume	2000 m³/h	2000 m³/h	3100 m³/h
External Static Pressure	20 ~ 50 Pa	20 ~ 50 Pa	20 ~ 50 Pa
Electric Heating (Optional)	3 kW	3 kW	3 kW
Infrared Humidifier (Optional)	1.5 kg/h	1.5 kg/h	1.5 kg/h
Max. Current / Circuit Breaker	20 A / 32 A	20 A / 32 A	20 A / 32 A
Unit Dimensions (W×D×H)	510 × 385 × 1850 mm	600 × 500 × 1975 mm	750 × 650 × 1975 mm
Unit Net Weight	85 kg	85 kg	125 kg

Matched Outdoor Condenser Specifications (Standard Air-Cooled):

Matched Indoor Model	Condenser Model	Dimensions (W×D×H)	Weight
For DME05	DMC05WP1	787 × 352 × 829 mm	40 kg
For DME07	DMC07WP1	787 × 352 × 829 mm	40 kg
For DME12	DMC12WP1	787 × 352 × 1240 mm	61 kg

Wide Range of Applications

The Vertiv DME05MHSUP1 Precision Air Conditioner is specifically engineered for critical application fields that cannot tolerate temperature fluctuations, including:

Data Centers & Server Rooms: Maintaining optimal operating temperatures for high-density IT equipment.

Telecommunication Rooms: Protecting critical switches, routers, and broadcast hardware.

Laboratories & Medical Facilities: Ensuring strict constant temperature and humidity for testing and precision instruments.

Industrial Control Centers: Safeguarding sensitive electronic control panels from heat and moisture damage.

Our Factory

apc back ups family bk500m ch 500va/300w standby ups with built in battery

Our Certifcate

Exhibition

Packaging & Shipping

Frequently Asked Questions (FAQ)

Q1: What is the power supply requirement for the DME05MHSUP1?

A: This precision air conditioner requires a three-phase power supply operating at 380/400 VAC, with a maximum current of 20A (a 32A circuit breaker is recommended).

Q2: Does this unit provide both cooling and heating?

A: The standard unit provides a robust 5.5kW cooling capacity. However, it can be equipped with an optional 3kW electric heater and a 1.5kg/h infrared humidifier to maintain strict constant temperature and humidity.

Q3: Which outdoor condenser is paired with the DME05 model?

A: The standard air-cooled outdoor condenser matched for the DME05 is the DMC05WP1, which weighs 40 kg and measures 787 × 352 × 829 mm.

Q4: What is the installation method and air supply direction?

A: The DME05MHSUP1 is a floor-standing unit that utilizes a Top Air Supply method, outputting a standard air volume of 2000 m³/h.

Q5: What are the packaging details, lead time, and HS Code?

A: The indoor unit has a gross packaging weight of 135 kg and carton dimensions of 185.0 × 51.0 × 38.5 cm. The lead time is typically 3 days for 1-5 pieces. The official HS Code is 8415102200.
