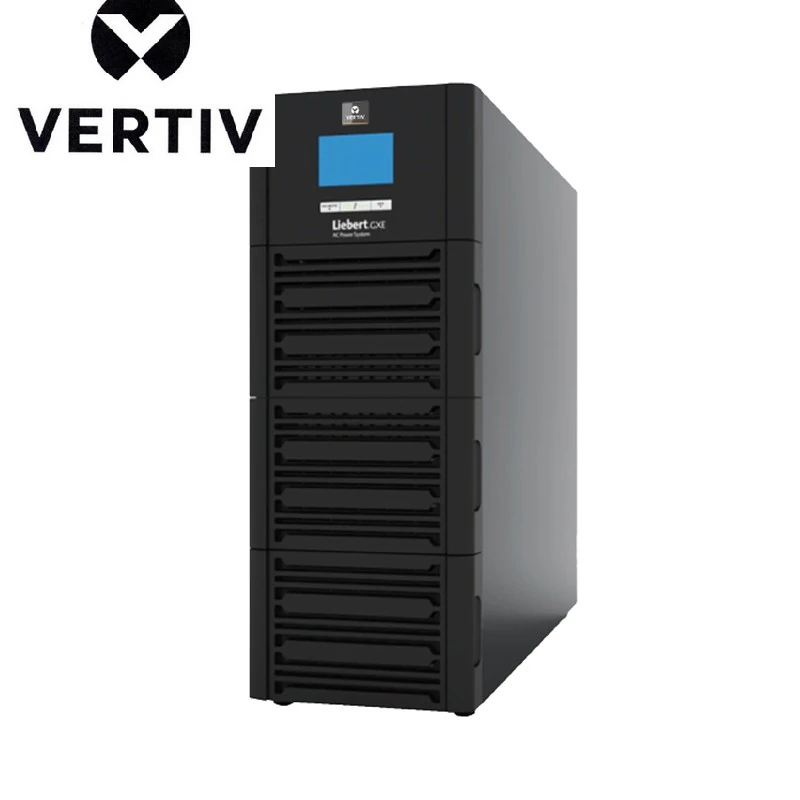

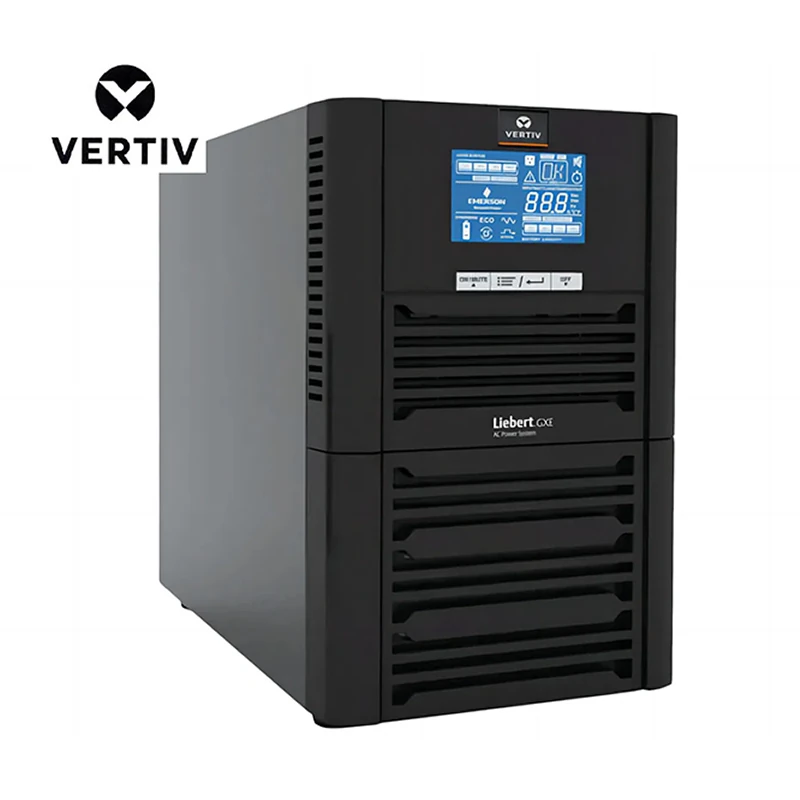

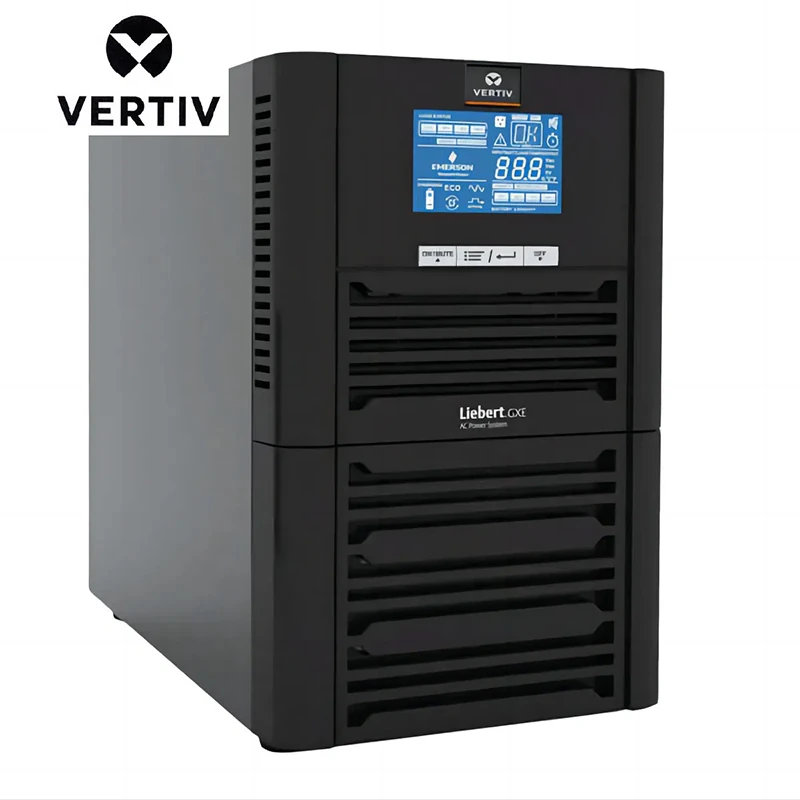

Vertiv GXE 1kVA/800W Tower UPS (GXE01k00TS1101C00) with Built-in Battery

The Vertiv GXE01k00TS1101C00 is a highly efficient 1kVA/800W pure sine wave Standby UPS designed for critical industry applications. Featuring a breakthrough ultra-compact tower design, it delivers robust power protection with an instantaneous 0ms switching time. Equipped with a built-in valve-regulated sealed lead-acid battery (3×12V×7Ah) and an exceptionally wide input voltage range (120VAC~288VAC), this Vertiv GXE series UPS ensures continuous, clean power for servers, network equipment, and precision instruments, effectively saving space while maximizing energy efficiency.

Key Functions and Features

Space-Saving Ultra-Compact Design

Utilizing advanced topology design, the product’s power density is significantly increased while its size is reduced by 30%-70% compared to similar products.

The standard 1KVA unit measures only 156 × 255 × 295 mm, making it ideal for deployments in small computer rooms or environments with strict spatial requirements.

Green, Energy-Saving & High Efficiency

Features an input power factor of up to 0.99 and an output power factor of 0.8, improving overall energy efficiency to ≥91%.

Includes an ECO mode for significant energy savings (saving nearly one kilowatt-hour per day under full load compared to standard models).

An intelligent cooling fan automatically adjusts its speed according to the load, reducing power consumption and maintaining a noise level below 45 dB.

Super Strong Overload Capacity & Wide Input

Wide Input Voltage Range: Operates at full load without derating within 120VAC~288VAC, significantly reducing battery switching probability and extending battery life.

Exceptional Overload Capability: Can withstand 130% load for 10 minutes, 150% for 1 minute, and >150% for 500ms, perfectly meeting requirements for sudden load increases.

Features an 8A maximum charging capability to enable rapid recharging for extended operating times.

User-Friendly Interface & Intelligent Management

Large LCD Display: Users can easily obtain real-time UPS status, including operating mode, battery capacity, load capacity, and clear fault diagnostics.

Standard interfaces include DB-9 RS-232 and Type B USB. Dry contacts enable remote shutdown.

Supports various optional management cards (SNMP, MODBUS, RS-485, Dry contact) for comprehensive remote network management and intelligent data center integration.

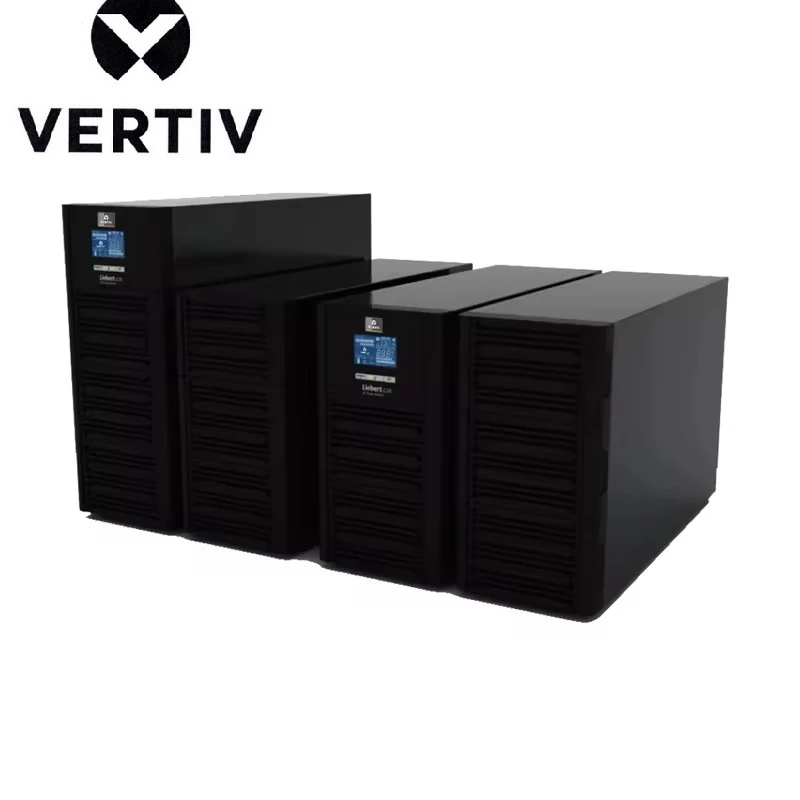

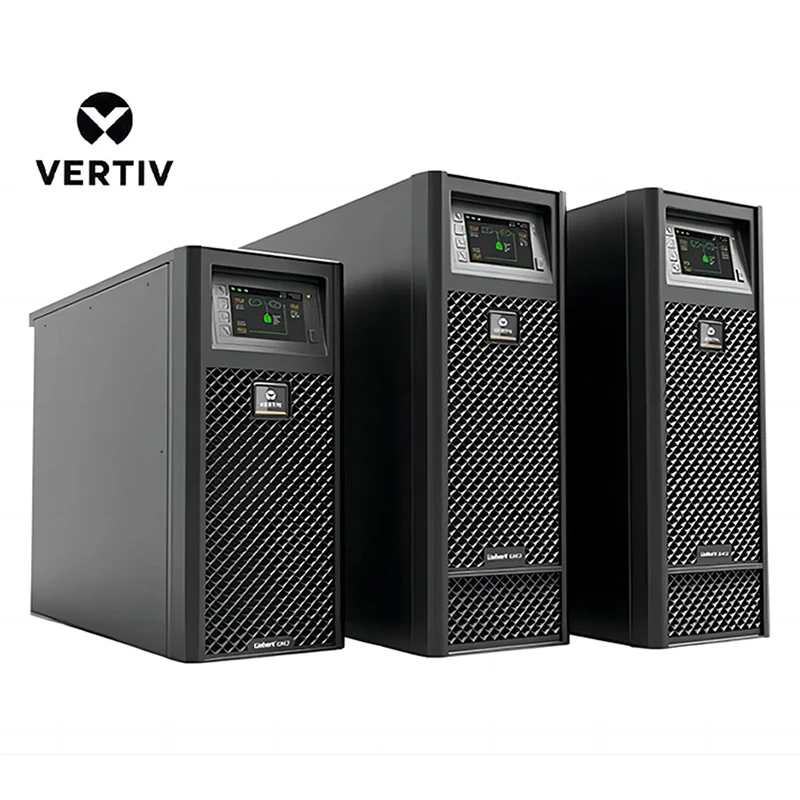

Technical Specifications (Vertiv GXE 1-3KVA Series)

Specifications	GXE 1kVA (GXE01k00TS1101C00)	GXE 2kVA (1600W)	GXE 3kVA (2400W)
Output Capacity	1000VA / 800W	2000VA / 1600W	3000VA / 2400W
Input Voltage Range	120VAC ~ 288VAC	120VAC ~ 288VAC	120VAC ~ 288VAC
Output Voltage	220VAC±1%, 230/240VAC±3%	220VAC±1%, 230/240VAC±3%	220VAC±1%, 230/240VAC±3%
Output Waveform	Pure Sine Wave	Pure Sine Wave	Pure Sine Wave
Switching Time	0 ms	0 ms	0 ms
Overall Efficiency	≥ 91%	≥ 93%	≥ 93%
Overload Capacity	130% for 10min; 150% for 1min	130% for 10min; 150% for 1min	130% for 10min; 150% for 1min
Built-in Battery (Standard)	3 × 12V × 7Ah (VRLA)	6 × 12V × 7Ah (VRLA)	6 × 12V × 9Ah (VRLA)
Backup Time (Typical)	> 4 minutes	> 4 minutes	> 4 minutes
Communication Interface	RS-232, USB Type B (Standard)	RS-232, USB Type B	RS-232, USB Type B
Operating Temperature	0ºC ~ +40ºC (No derating <2000m)	0ºC ~ +40ºC	0ºC ~ +40ºC
Noise Level	< 45 dB	< 45 dB	< 45 dB
Unit Dimensions (W×H×D)	156 × 255 × 295 mm	156 × 255 × 466 mm	156 × 255 × 466 mm
Net Weight	12 kg	22 kg	25 kg

Wide Range of Applications

The Vertiv GXE 1KVA Tower UPS is highly adaptable for various critical industries, including Telecommunications, Finance, Government, Healthcare, Education, Manufacturing, and Retail. Target equipment includes:

IT & Data: Servers, storage devices, and small computer rooms.

Networking: Network switching equipment, routers, and VoIP systems.

Precision Equipment: Automation equipment, medical diagnostic equipment, and precision laboratory instruments.

Office Environment: Critical office terminals and security systems.

Our Factory

apc back ups family bk500m ch 500va/300w standby ups with built in battery

Our Certifcate

Exhibition

Packaging & Shipping

Frequently Asked Questions (FAQ)

Q1: What is the transfer/switching time of the Vertiv GXE 1KVA UPS?

A: It features a genuine 0ms switching time, delivering a seamless transition to pure sine wave battery power without interrupting sensitive IT loads or medical equipment.

Q2: What is the physical size and weight of this UPS?

A: Thanks to its ultra-compact design, the standard 1KVA model measures only 156 × 255 × 295 mm with a net weight of 12 kg, saving 30%-70% of space compared to similar products.

Q3: Does this UPS support remote network management?

A: Yes. It comes standard with RS-232 and USB interfaces. For remote management, you can install optional cards such as the RDU-SIC (SNMP) Card, MODBUS Card, or Dry Contact cards to monitor alarms and configure settings via a web interface or building monitoring system.

Q4: Can it handle sudden load surges?

A: Absolutely. It boasts a super strong overload capacity: it can withstand 130% of the rated load for 10 minutes and 150% for 1 minute before safely shutting down.

Q5: What are the packaging dimensions for transport?

A: The UPS is packaged in a sturdy carton with dimensions of 29.50 × 15.60 × 25.50 cm and a gross package weight of 13.0 kg.
