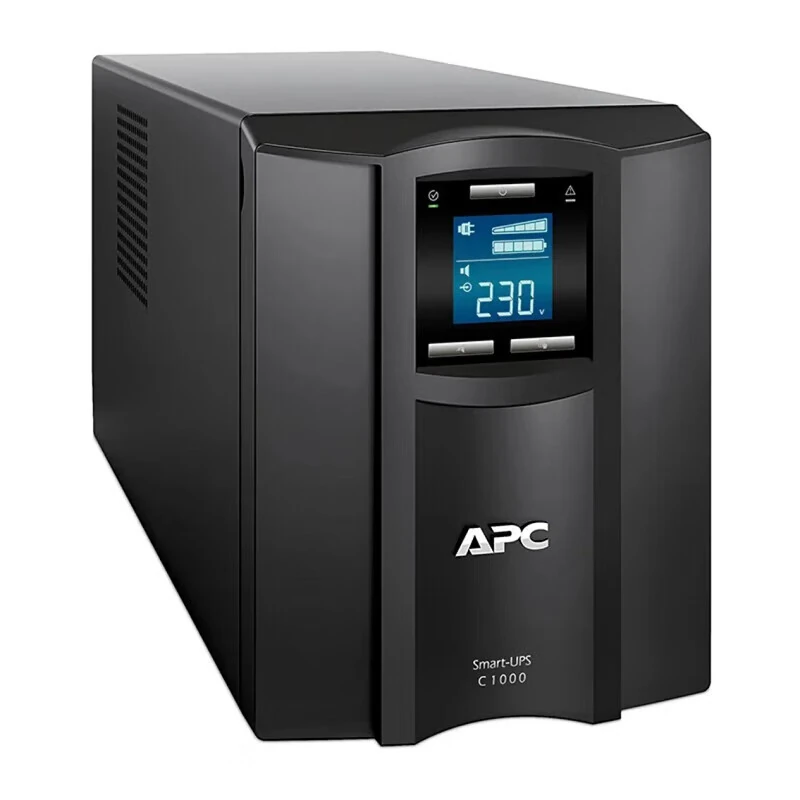

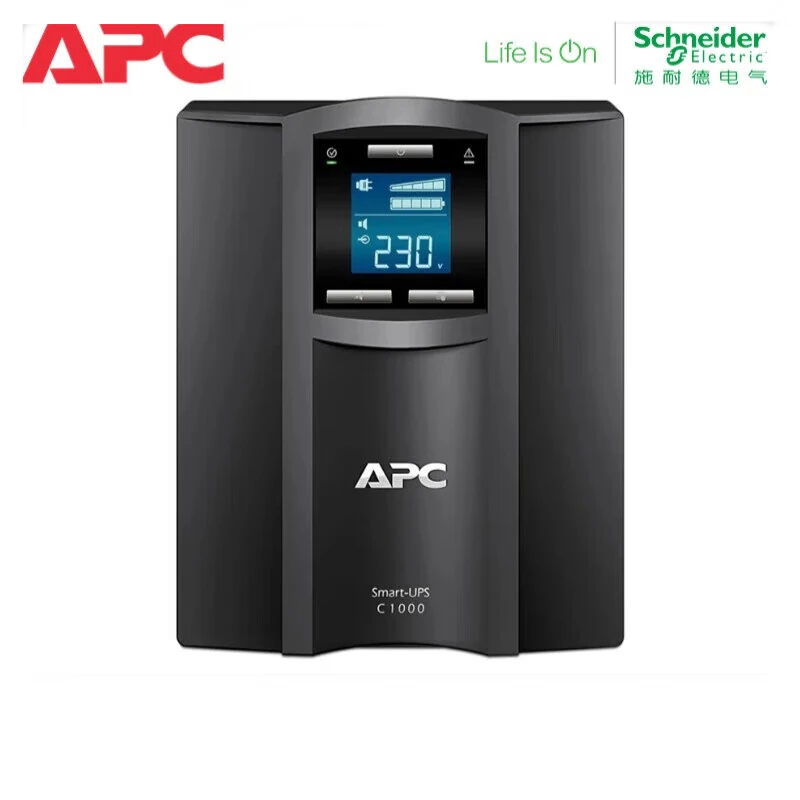

APC Smart-UPS SMC Series SMC1000I-CH 1000VA/600W Online Interactive Tower UPS with Built-in Battery

The globally renowned APC Smart-UPS SMC1000I-CH is an industry-leading 1000VA/600W Online Interactive (Line-Interactive) Tower Type Uninterruptible Power Supply. Widely trusted by tens of millions of IT administrators worldwide for over three decades, this Smart-UPS provides exceptional availability and manageability for your network. It protects critical data and equipment from power outages and delivers clean, reliable, network-grade pure sine wave power. Equipped with a built-in maintenance-free battery and an intuitive LCD display, the SMC1000I-CH is the best-selling power protection solution for servers, storage systems, and network communications.

Key Functions and Features

Network-Level Power Protection

Pure Sine Wave Output: Ensures the highest level of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Automatic Voltage Regulation (AVR): Features noise filtering and surge protection (455 Joules) to correct low and high voltage conditions without using the battery.

Advanced Battery Management

Temperature-Compensated Charging: Automatically adjusts the charge voltage according to battery temperature, extending the lifespan of the built-in valve-regulated lead-acid battery.

Battery Connector: The battery can be easily disconnected during transportation and long-term storage to ensure safety and preserve battery life.

High-Efficiency Energy Saving Mode

Boasts an outstanding 96% full load efficiency, optimizing power usage to save on utility and cooling costs while extending the lifespan of internal components.

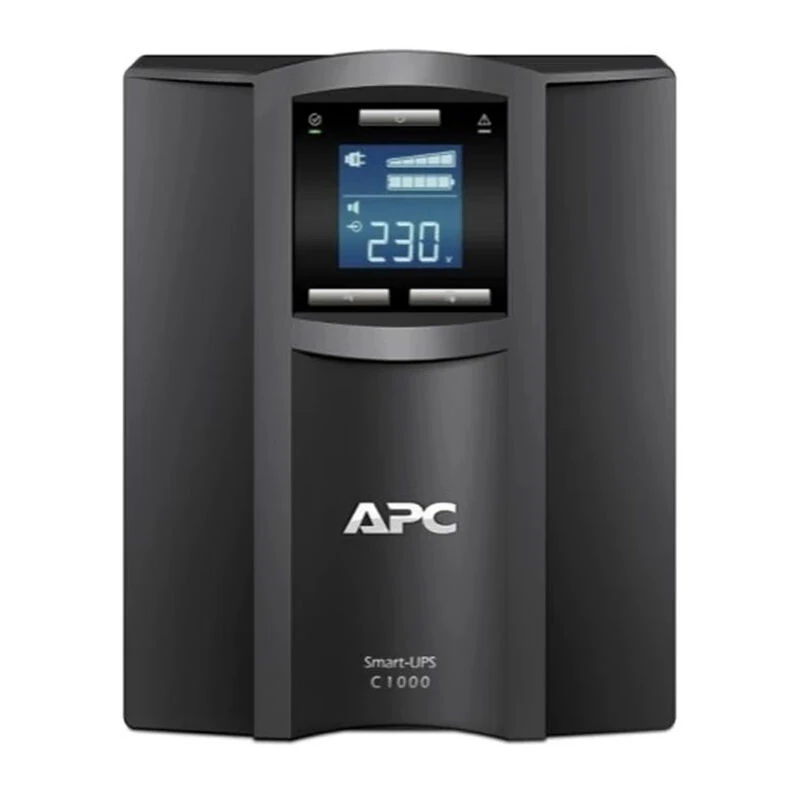

Intuitive LCD Display & Management

Smart LCD Interface: Provides accurate, real-time information on mains power, battery status, estimated runtime, output current, output frequency, and load rate (Watt/Volt), facilitating on-site diagnostics.

Communication Ports: Equipped with USB and Serial (RJ-45) ports to facilitate seamless power management and automatic shutdown.

Security Agency Certification

Fully tested and certified to meet international standards, including CE, IEC 62040-1, and VDE.

Technical Specifications

Specifications	SMC1000I-CH (Main Model)	SMC1500I-CH	SMC2000I-CH	SMC3000I-CH
Output Power Capacity	600W / 1000VA	900W / 1500VA	1300W / 2000VA	2100W / 3000VA
Topology	Online Interactive	Online Interactive	Online Interactive	Online Interactive
Rated Output Voltage	230V	230V	230V	230V
Output Waveform	Sine Wave	Sine Wave	Sine Wave	Sine Wave
Input Voltage Range	180V - 287V	180V - 287V	180V - 287V	180V - 287V

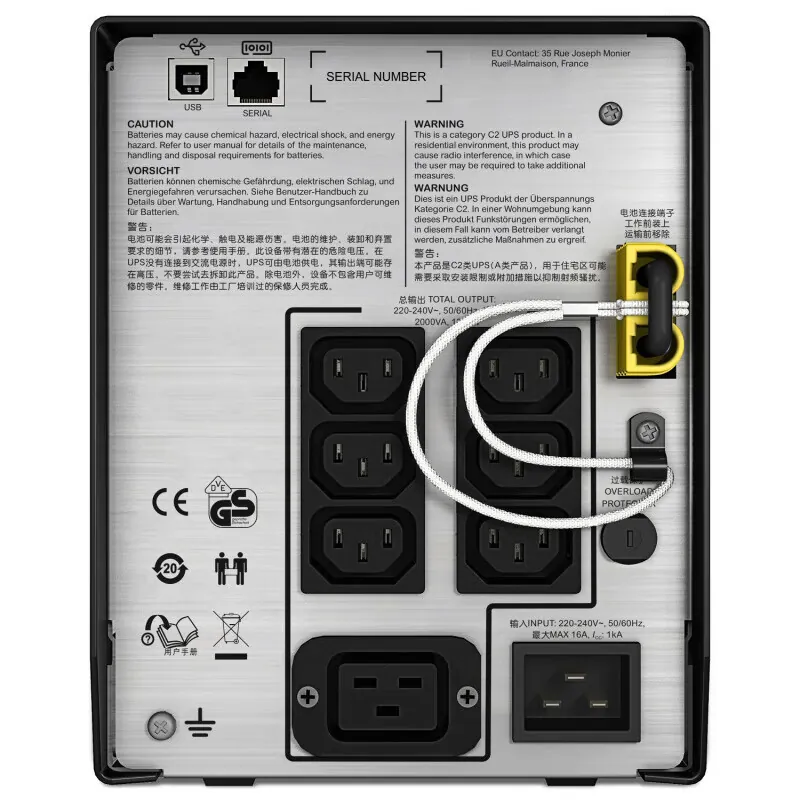

Output Interfaces	(8) IEC 320 C13	(8) IEC 320 C13	(6) IEC 320 C13, (1) C19	(8) IEC 320 C13, (1) C19
Input Interface	IEC 320 C14	IEC 320 C14	IEC 320 C20	IEC 320 C20
Full Load Efficiency	96%	96%	96%	96%
Battery Type	Sealed, maintenance-free lead-acid	Sealed lead-acid	Sealed lead-acid	Sealed lead-acid
Typical Runtime (Half/Full)	17 mins / 6 mins	14.4 mins / 4.7 mins	19 mins / 4.9 mins	18.7 mins / 5.8 mins
Surge Protection Rating	455 Joules	455 Joules	730 Joules	724 Joules
Communication Interface	Serial (RJ-45), USB	Serial (RJ-45), USB	Serial (RJ-45), USB	Serial (RJ-45), USB
Dimensions (H×W×D)	219 × 171 × 439 mm	219 × 171 × 439 mm	N/A	435 × 197 × 544 mm
Net Weight	17.24 kg	24.04 kg	27.5 kg	43.0 kg

Wide Range of Applications

The APC Smart-UPS SMC1000I-CH offers network-grade pure sine wave power, making it the globally preferred choice for:

Entry-Level Servers & Storage: Ensuring data integrity and preventing hardware damage during sudden power outages.

Network & Communication: Powering critical switches, routers, and hubs to keep enterprise networks online.

Point of Sale (POS) Systems: Protecting retail transactional data and maintaining operational continuity.

Office & Lighting: Serving as a reliable standby power source for small business offices and essential lighting classifications.

Our Factory

apc back ups family bk500m ch 500va/300w standby ups with built in battery

Our Certifcate

Exhibition

Packaging & Shipping

Frequently Asked Questions (FAQ)

Q1: What is the topology and output waveform of the SMC1000I-CH?

A: The SMC1000I-CH utilizes an Online Interactive (Line-Interactive) topology and delivers a clean pure sine wave output. This ensures zero compatibility issues with modern active PFC power supplies found in servers and high-end PCs.

Q2: How much backup runtime does this UPS provide?

A: Equipped with a built-in maintenance-free lead-acid battery, it provides approximately 17 minutes of runtime at half load, and 6 minutes at full load (600W), giving you ample time to save critical data and safely shut down your systems.

Q3: What kind of display and management features does it have?

A: The unit features an intuitive LCD display interface that provides real-time information such as input/output voltage, load rate (Watt/Volt), output frequency, estimated battery runtime, and event counters. It also includes an audible alarm and a high-efficiency energy-saving mode toggle.

Q4: What are the input and output connection types?

A: The SMC1000I-CH requires an IEC 320 C14 input connection and features eight (8) IEC 320 C13 output sockets, all of which provide both battery backup and surge protection.

Q5: What are the dimensions and weight of this model?

A: The UPS has a physical net dimension of 219 × 171 × 439 mm and a net weight of 17.24 kg. It is designed as a classic black tower type, suitable for floor or desk-side placement.
