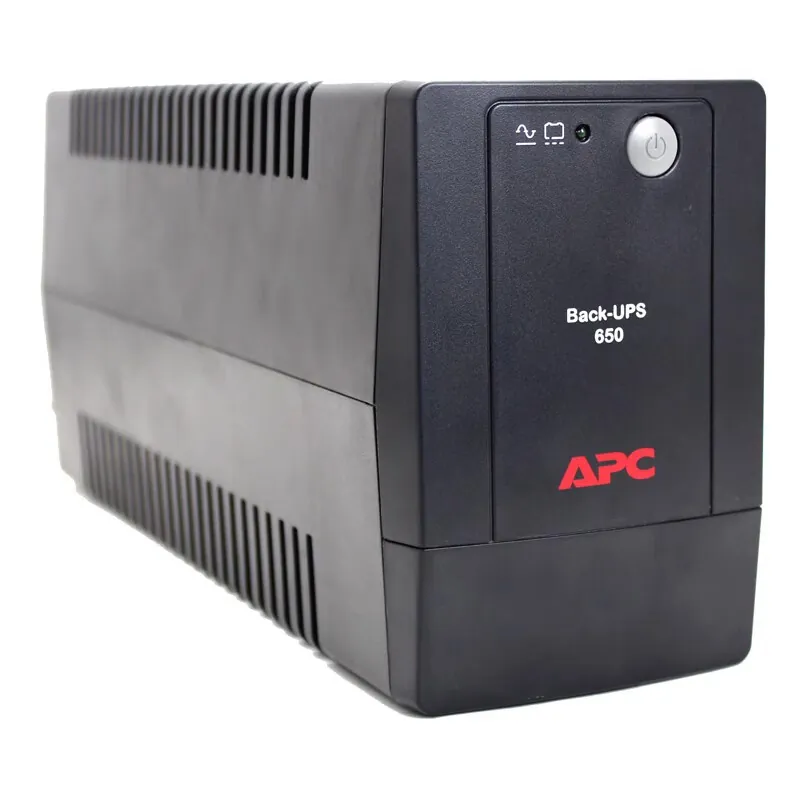

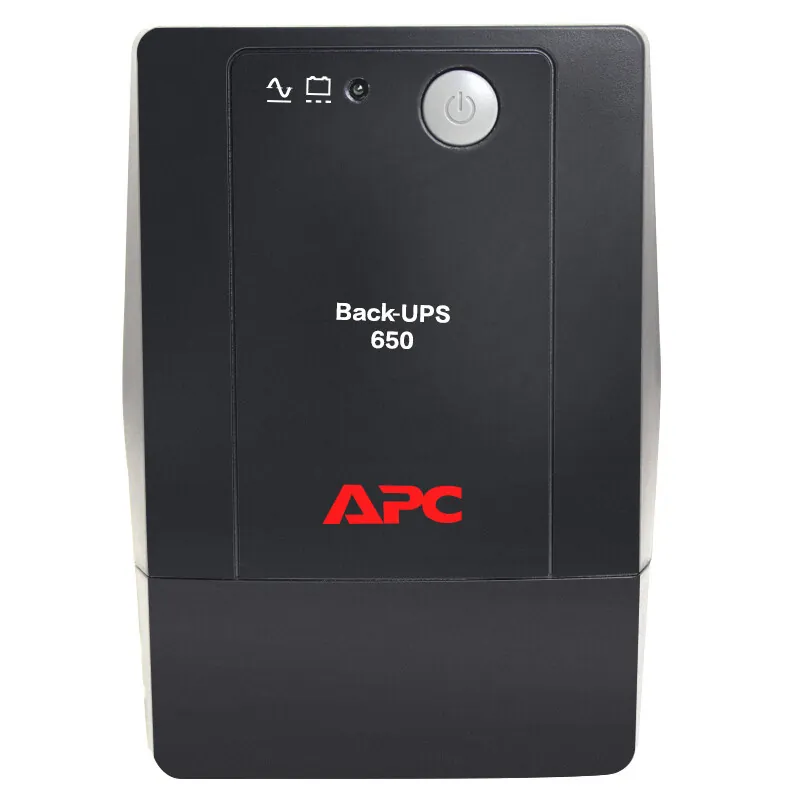

APC Back-UPS BP650CH 650VA/360W Standby UPS with Built-in Battery

The APC Back-UPS BP650CH is a highly reliable and compact Standby UPS, delivering 650VA/360W of robust power protection. Engineered with an advanced Automatic Voltage Regulation (AVR) function and a built-in heavy-duty 12V/17Ah battery, it ensures your critical devices operate safely even under unstable grid conditions. Featuring a fanless natural cooling design with ultra-high operating efficiency (over 98%), the BP650CH is the perfect uninterrupted power solution for communication networks, emergency lighting, and essential business equipment.

Key Functions and Features

High Efficiency & Robust Performance

High Efficiency: Achieves an outstanding operating efficiency of over 98%, saving energy costs.

Clean Operation: Generates zero additional input power factor or harmonic current distortion, causing no interference to the power grid.

Strong Output Capability: Features no strict limitations on load current crest factor, surge current factor, or moderate overloads, ensuring optimized electrical performance.

Comprehensive System Protection

Surge & Lightning Protection: Equipped with 156 Joules of input surge protection to safeguard against dangerous voltage spikes.

Over-temperature Protection: If the device overheats, the UPS issues a warning (LED illuminates and a continuous beep sounds). It will automatically shut down to disconnect the device if the temperature does not decrease.

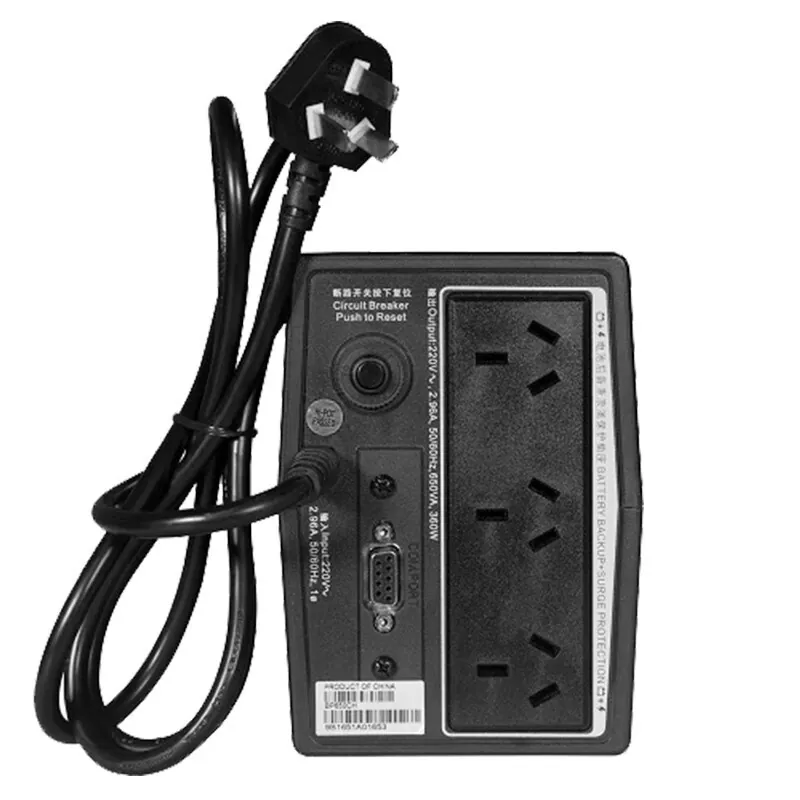

Manually Resettable Circuit Breaker: Easily restore the circuit from overload or open-circuit conditions with a simple push-button, without the hassle of searching for fuses.

Advanced AVR & Intelligent Management

Automatic Voltage Regulation (AVR): Automatically increases output voltage when the mains voltage drops below a safe level (wide range of 162-270V), preserving battery life for true outages.

Sensitivity Settings: Adjustable settings to cater to devices with varying sensitivities to mains voltage fluctuations.

Personal Software Management: RS232 communication interface supports power storage configuration and power event monitoring.

Easy to Use & Maintain

Automatic Self-Test: Regularly tests the battery to detect any needed replacements early.

Audible Alarms: Proactively informs you about battery replacement needs and power usage status.

External Battery Connector: A convenient pull-down handle facilitates safe transportation. Push it into the device to confirm successful connection during initial setup.

Fast Switching Time: Seamless transition with a 4-8ms switching time to battery power.

Technical Specifications (BP650-CH vs BP1000-CH)

Specifications	BP650-CH (Main Model)	BP1000-CH
Output Capacity	650VA / 360W (Power Factor 0.6)	1000VA / 600W (Power Factor 0.6)
Input Voltage Range	162 - 270V (220/230V Nominal)	162 - 270V (220/230V Nominal)
Frequency Range	50/60Hz Adaptive	50/60Hz Adaptive
Output Waveform	Approaching a sine wave (Stepped)	Approaching a sine wave (Stepped)
Output Interfaces	National Standard 10A × 3	National Standard 10A × 4
Switching Time	4 - 8ms	4 - 8ms
AVR Function	Yes (Built-in)	Yes (Built-in)
Input Surge Protection	156 Joules	156 Joules
Battery Capacity	12V / 17Ah × 1 (Built-in)	12V / 27Ah × 1 (Built-in)
Backup Time (100% Load)	1 minute (at full 360W)	1 minute (at full 600W)
Typical Charging Time	4 - 6 hours to 90%	4 - 6 hours to 90%
Communication Interface	RS232	RS232
Cooling & Noise	Natural cooling, fanless / <40dB	Natural cooling, fanless / <40dB
Net Weight	4.4 kg	7.8 kg

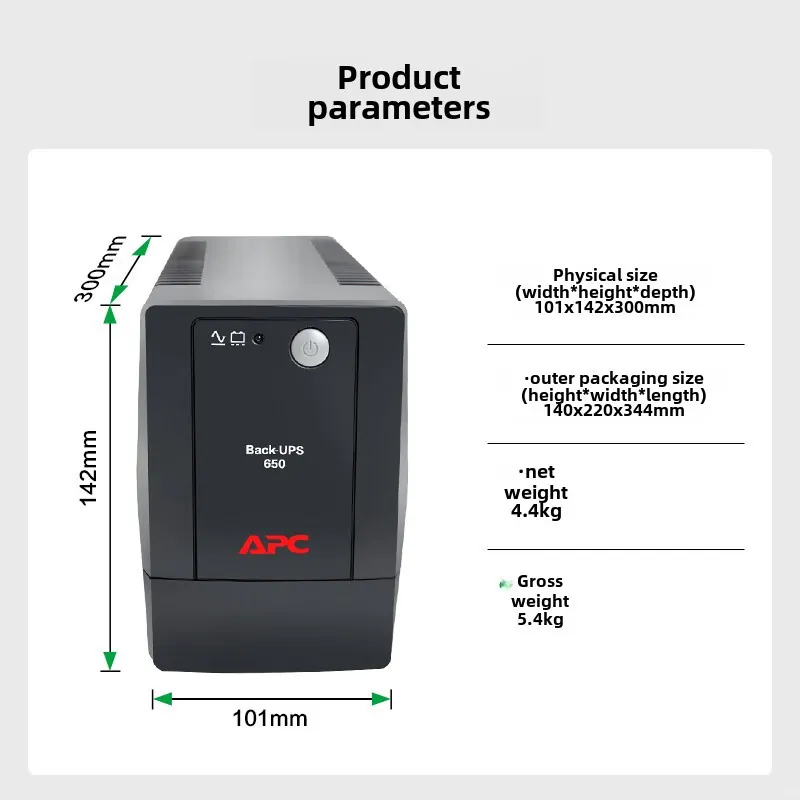

Dimensions (D×W×H)	300 × 101 × 142 mm	320 × 130 × 182 mm

Wide Range of Applications

As a highly efficient small-type Standby UPS, the BP650CH is widely applied in:

Communication Equipment: Routers, modems, switches, and network access points.

Lighting Systems: Emergency lighting and classification lighting backups.

Business & Office: Desktop PCs, monitors, and point-of-sale (POS) systems that require reliable surge protection and uninterrupted power.

Our Factory

apc back ups family bk500m ch 500va/300w standby ups with built in battery

Our Certifcate

Exhibition

Packaging & Shipping

Frequently Asked Questions (FAQ)

Q1: Does the BP650CH model feature Automatic Voltage Regulation (AVR)?

A: Yes, it is equipped with a built-in AVR function that automatically stabilizes output voltage when the input fluctuates between 162V and 270V, protecting your devices and saving battery power.

Q2: What is the internal battery specification and its charging time?

A: The BP650CH features a built-in high-quality 12V/17Ah battery. It takes approximately 4 to 6 hours to charge to 90% capacity.

Q3: Can I use this UPS in a quiet environment?

A: Absolutely. It utilizes a natural cooling, fanless design, which keeps the operating noise level below 40dB, making it perfect for office or home environments.

Q4: How do I handle battery replacement and warranty?

A: The product is covered by a standard 2-year warranty from the date of purchase. For safety, the built-in battery should not be replaced by the user; please contact authorized service centers for professional replacement.

Q5: What are the packaging weight and HS Code for export?

A: The net weight of the unit is 4.4 kg, and the gross weight with the carton package is 5.4 kg. The official HS Code is 8504402000.
