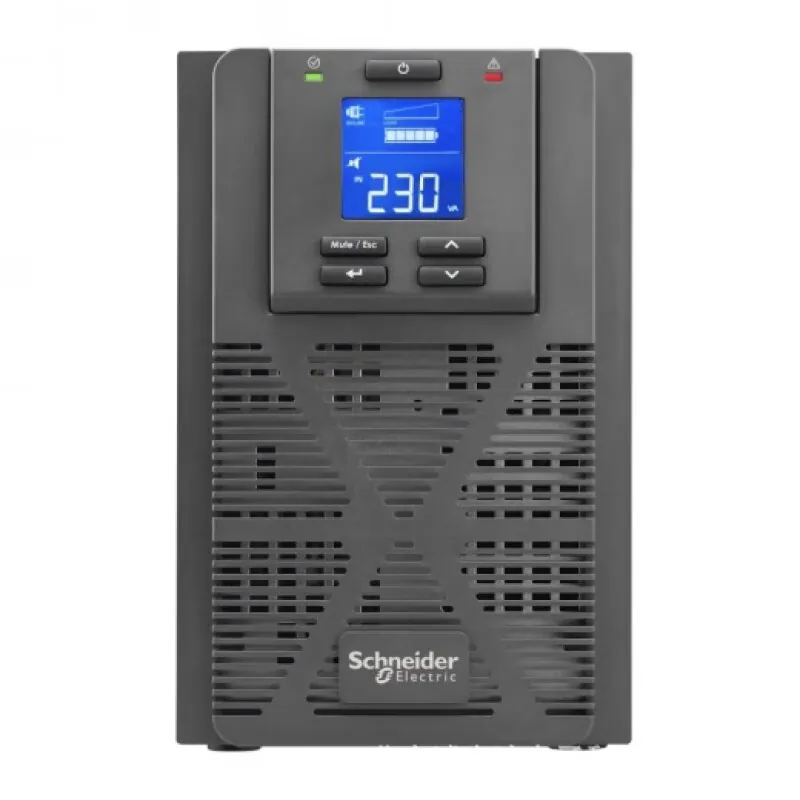

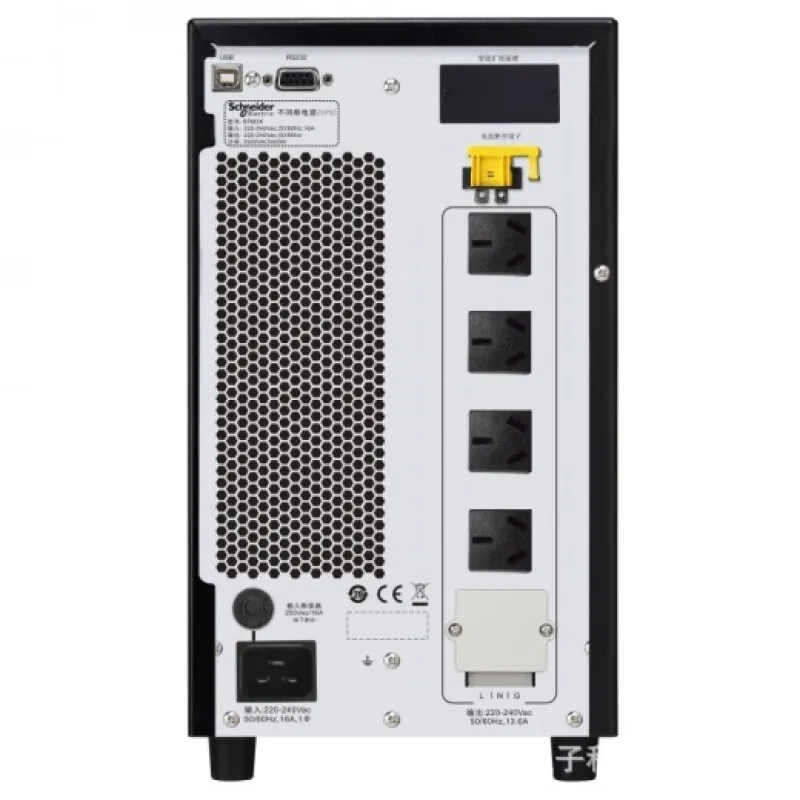

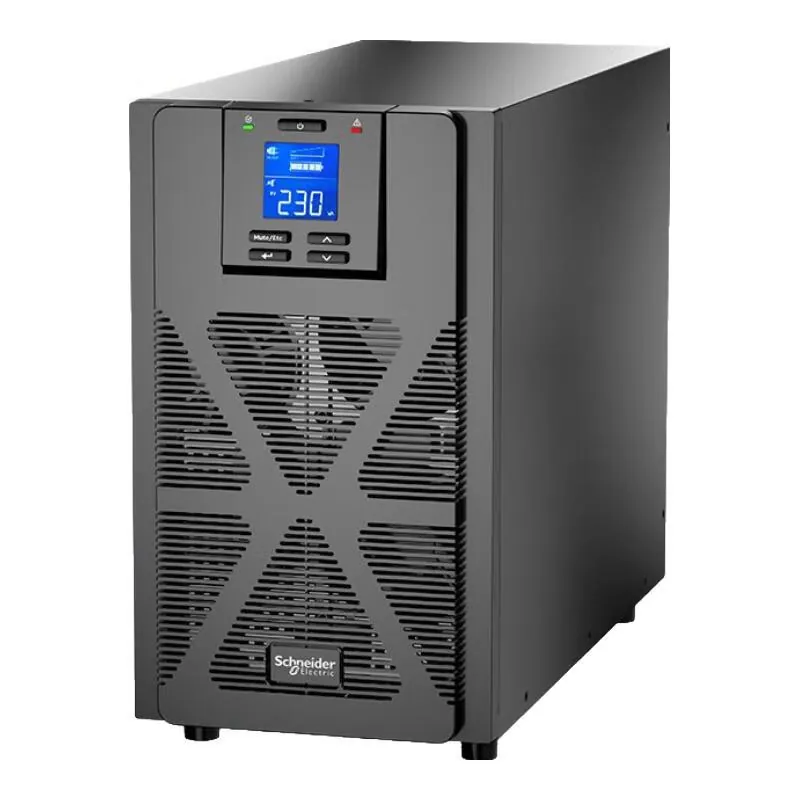

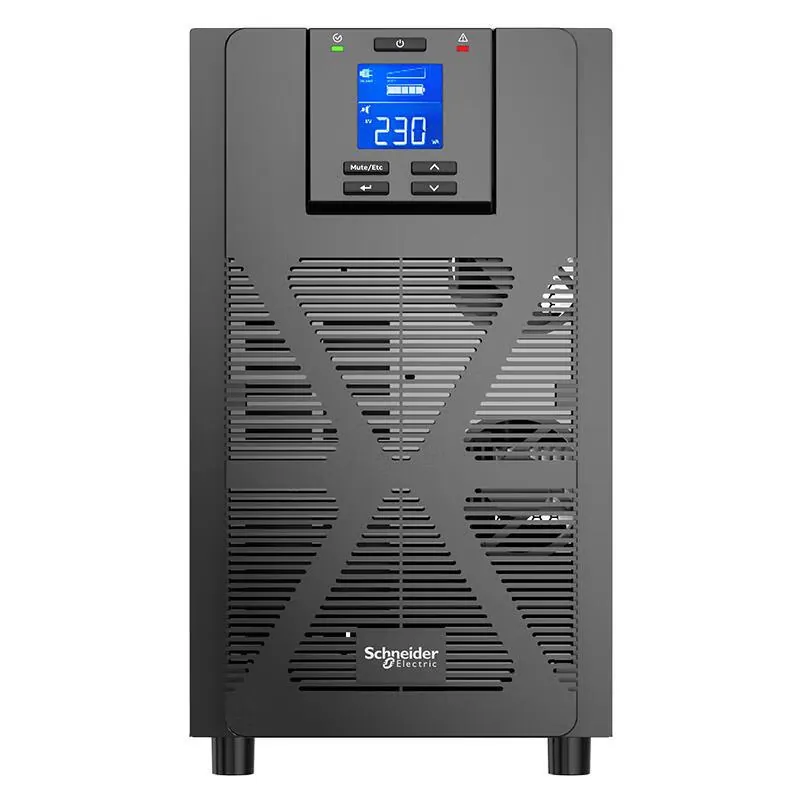

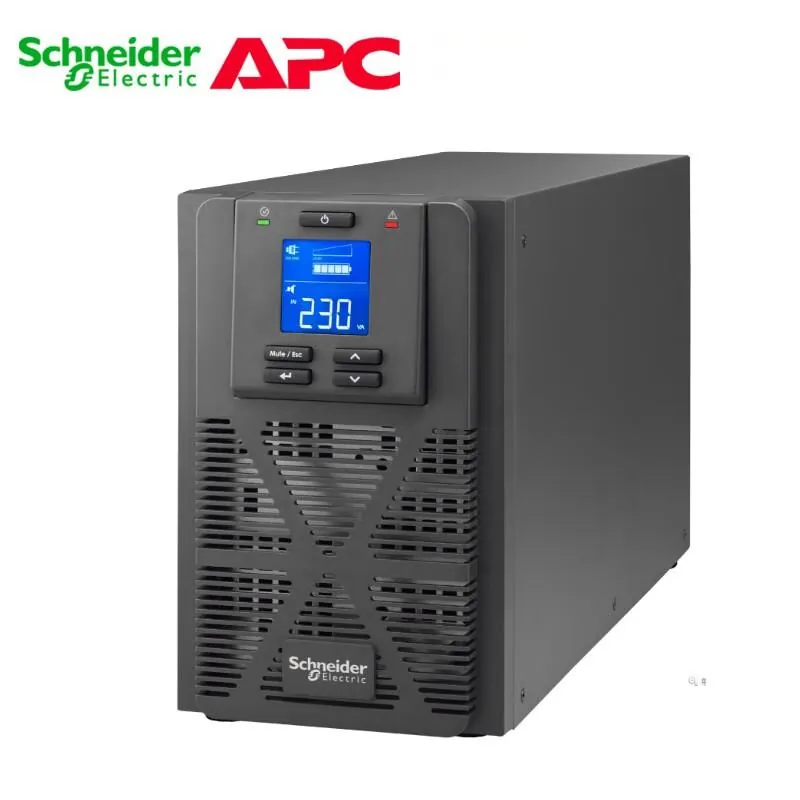

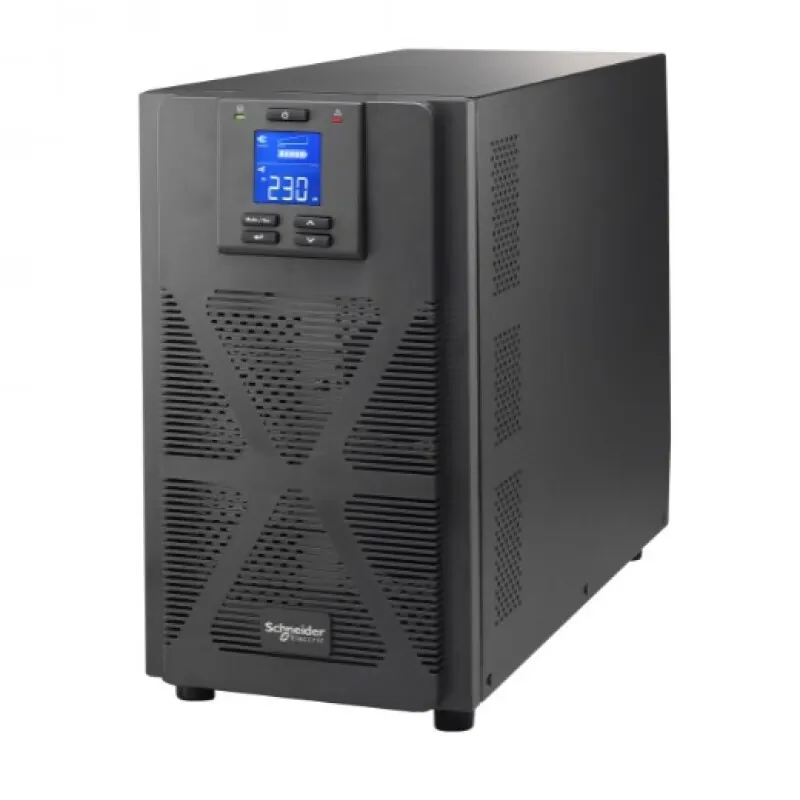

APC by Schneider Electric SP Series SPM1K 1000VA/800W Online Tower UPS with Built-in Battery

The APC SP Series SPM1K is a premium 1kVA/800W Online Tower Type Uninterruptible Power Supply (UPS) designed by Schneider Electric. Adopting an advanced online double conversion topology, it delivers a clean, pure sine wave output to protect your critical equipment from power disturbances. Equipped with a built-in battery (9Ah × 2), it ensures immediate and seamless backup power. Designed with conformal-coated circuit boards to withstand harsh environments and an ultra-wide input voltage range (110-300VAC), the SPM1K provides professional, highly reliable power protection for communication, lighting, and industrial applications.

Key Functions and Features

High Reliability & Robust Design

Online Double Conversion: Provides pure sine wave output with zero transfer time, ensuring optimal protection for sensitive IT and medical loads.

Harsh Environment Protection: The internal circuit boards are protected with conformal coating, significantly improving the UPS’s reliability in dusty or humid environments.

Wide Input Voltage: Supports an ultra-wide input range of 110-300VAC, reducing unnecessary battery usage cycles and extending battery life.

Generator Compatible: Supports operation within a frequency range of 40~70Hz in generator mode.

High Efficiency & Energy Saving

Energy Efficient: Delivers an output power factor of 0.8 and achieves an overall efficiency of 88%, reducing user operating costs.

Input Performance: Boasts an input power factor of ≥0.95, minimizing interference with the main power grid.

High Ease of Use & Intelligent Management

LCD Display: Features an intuitive LCD interface for quick and convenient parameter settings and real-time status monitoring.

Smart Connectivity: Comes standard with RS232 and USB communication interfaces.

Expandable Slot: Features a smart card slot supporting optional SNMP cards, Modbus cards, dry contact cards, and environmental monitoring cards for remote management.

Technical Specifications

Specifications	SPM1K (Main Model)	SPM1KL (Long Backup)	SPM2K (Reference)
Output Power	800 W / 1000 VA	800 W / 1000 VA	1600 W / 2000 VA
Input Voltage Range	110 - 300 VAC	110 - 300 VAC	110 - 300 VAC
Output Voltage	220(Default) / 230 / 240 VAC	220/230/240 VAC	220/230/240 VAC
Output Waveform	Online double conversion, Pure sine wave	Pure sine wave	Pure sine wave
Built-in Battery	9Ah × 2 (24V)	N/A (External)	9Ah × 4 (48V)
Backup Time (Full Load)	> 4 minutes	Depends on external battery	> 4 minutes
Charging Time	Charges to 90% in 4 hours	N/A	Charges to 90% in 4 hours
Output Terminals	National standard sockets × 4	National standard sockets × 4	National standard sockets × 4
Display & Interface	LCD / RS232 / USB / Smart Slot	LCD / RS232 / USB / Smart Slot	LCD / RS232 / USB / Smart Slot
Dimensions (W×D×H)	145 × 288 × 223 mm	145 × 288 × 223 mm	145 × 400 × 238 mm
Net Weight	9.3 kg	4.4 kg	16.8 kg

Wide Range of Applications

Schneider Electric’s SP series UPS provides professional power protection for critical loads. With its robust conformal-coated design and pure sine wave output, the SPM1K is widely applicable in:

Government & Finance: Protecting critical servers and transactional databases.

Telecommunications: Ensuring uninterrupted communication base stations and networking equipment.

Healthcare & Education: Safeguarding sensitive medical diagnostic devices and campus IT infrastructures.

Manufacturing & Industrial Control: Providing stable power for PLCs, automation equipment, and energy systems in harsh environments.

Our Factory

apc back ups family bk500m ch 500va/300w standby ups with built in battery

Our Certifcate

Exhibition

Packaging & Shipping

Frequently Asked Questions (FAQ)

Q1: Which UPS brands does your company distribute?

A: We represent top international brands such as APC by Schneider Electric, Eaton, Santak, Vertiv, and KELONG. We also offer customized UPS solutions based on specific customer requirements.

Q2: In which scenarios is the APC SPM1K UPS applicable?

A: Thanks to its online double conversion technology and harsh-environment protection, it is highly suitable for government, finance, transportation, healthcare, telecommunications, energy, education, manufacturing, and industrial control fields.

Q3: How long does it take for the products to be shipped?

A: Under normal circumstances, in-stock products like the SPM1K will be shipped within 1–3 working days after order confirmation and payment. Delivery timelines for customized or out-of-stock items will be communicated separately.

Q4: What payment methods do you accept?

A: We accept Bank Transfer (T/T), Alipay, and Credit Cards (via a secure payment gateway), etc. Available options are subject to the final order invoice and agreement.

Q5: Do you provide technical support after purchase?

A: Yes, we offer free technical consultation and remote support. You can reach our professional technical team via phone, email, or online customer service for setup, maintenance, and troubleshooting.

NEED HELP CHOOSING?

Talk to an Engineer

Not sure which model fits your load? Our team can help calculate your power requirements.
