Eaton EATS16CN ATS 16A Power Transfer Switch with Chinese Sockets (Network Card Optional)

The Eaton ATS 16A (Model: EATS16CN) is a high-performance Automatic Power Transfer Switch designed to provide dual power supply redundancy to critical devices equipped with only a single input interface. It seamlessly enables uninterrupted power switching between any two power sources—such as UPS to UPS, UPS to generator, UPS to AC mains, or AC mains to AC mains. By ensuring instantaneous input power switching during load changes, the Eaton ATS guarantees the continuous and safe operation of your highly sensitive IT and electronic equipment.

Key Functions and Features

High-Reliability Power Redundancy

While high-end servers typically feature dual power inputs, most mainstream network devices and standard servers only have a single power input. The Eaton ATS bridges this gap by enabling redundant power supply for single-input devices.

Simply connect a main and an auxiliary power supply directly to the ATS. In the event of a main power failure, it will automatically switch to the auxiliary source without causing any power outage to the connected loads.

Ultra-Fast & Safe 8ms Conversion Time

Features an industry-leading standard switching time of ≤ 8ms, ensuring absolutely no power interruption for sensitive IT loads.

Employs a highly secure “first-off-then-on” switching method. This not only provides reliable power but also guarantees equipment safety when switching between out-of-phase power sources.

Easy to Operate and Highly Cost-Effective

Significantly reduces hardware costs by providing redundancy to standard single-input devices, eliminating the need to purchase expensive dual-input IT equipment.

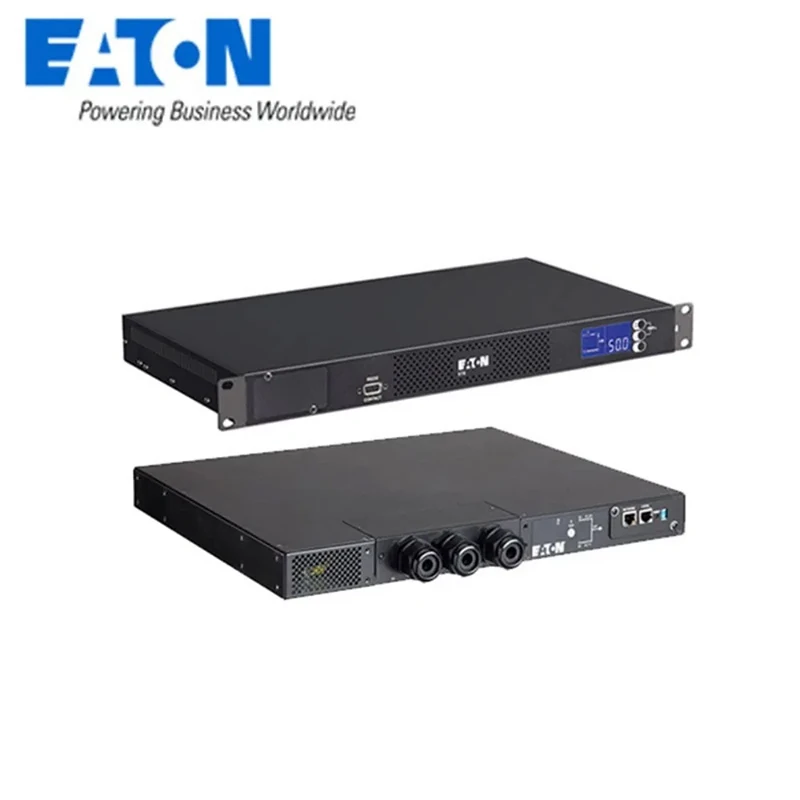

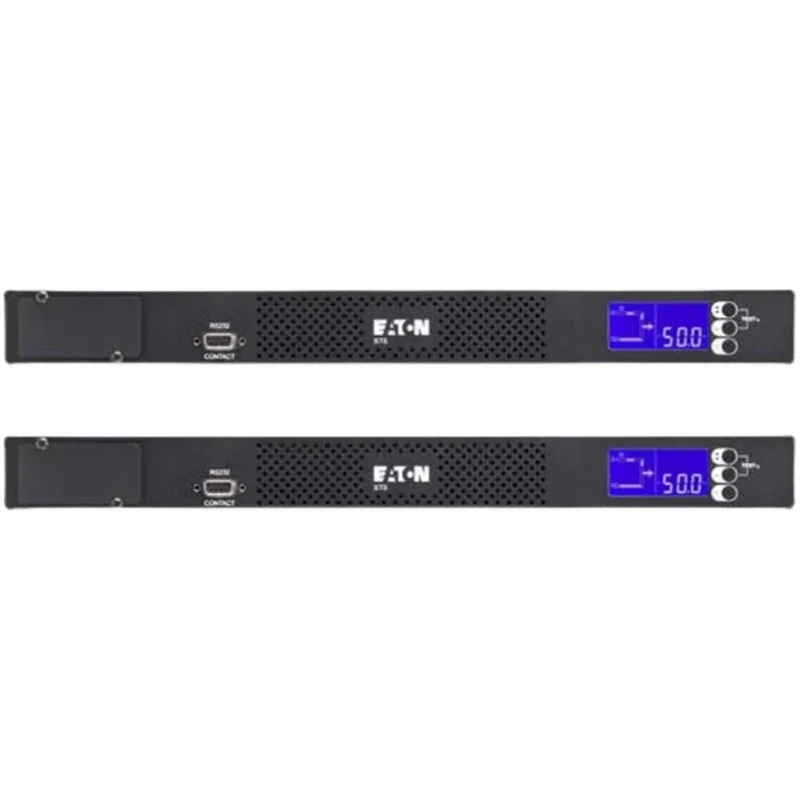

Features a compact 1U rack-mounting height, making it effortless to install in any standard server cabinet.

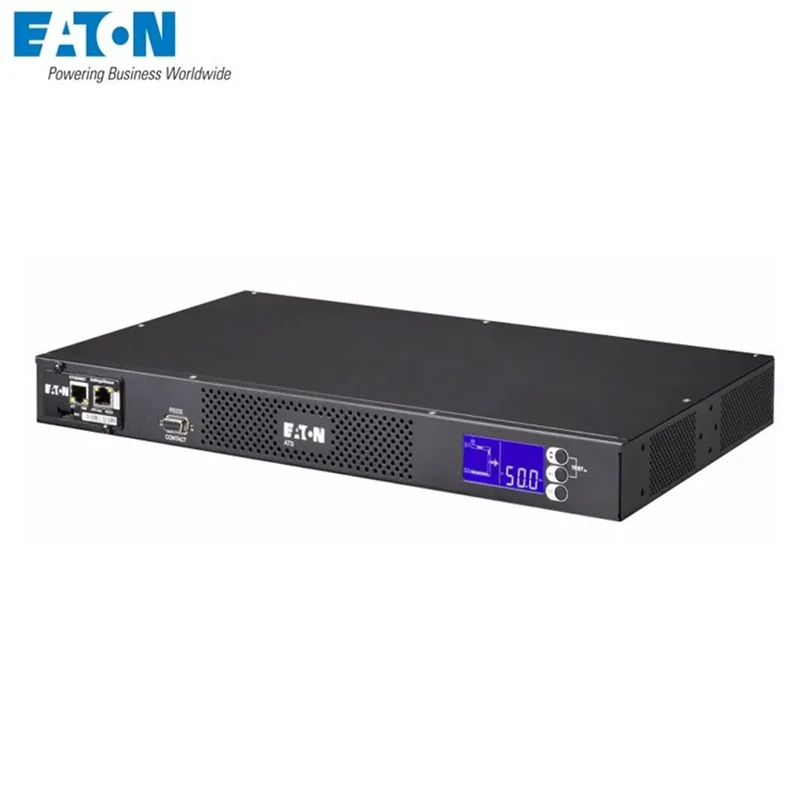

Equipped with a built-in LCD display, allowing users to perform real-time monitoring and basic configuration functions easily.

Seamless Compatibility & Network Connectivity

Pairs perfectly with Eaton UPS systems (such as 5P, 5PX, 9PX, 9E, DXRT series) to deliver clean, sine wave output power.

Supports redundant configurations for UPS systems of different capacities or models, as well as combined mains and generator setups.

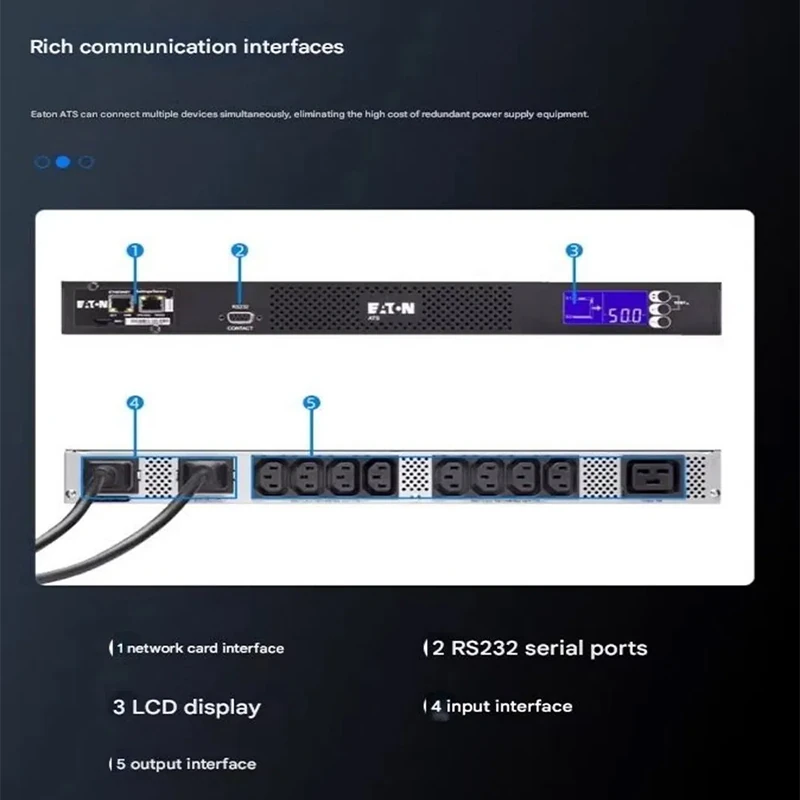

Network Optional: Standard network connectivity is available (via optional network card or the Netpack Edition), allowing remote access, configuration, and management operations.

Technical Specifications

Specifications	Eaton ATS 16A (EATS16CN)
Input Voltage / Frequency	208V / 220V / 230V / 240V ; 50/60 Hz
Output Capacity	16A Max (Large Type / Industry Level)
Transfer Time (Switching Time)	≤ 8ms (First-off-then-on mechanism)
Input Connections	2 × Terminal Blocks + 2 × Standard 16A Input Cables

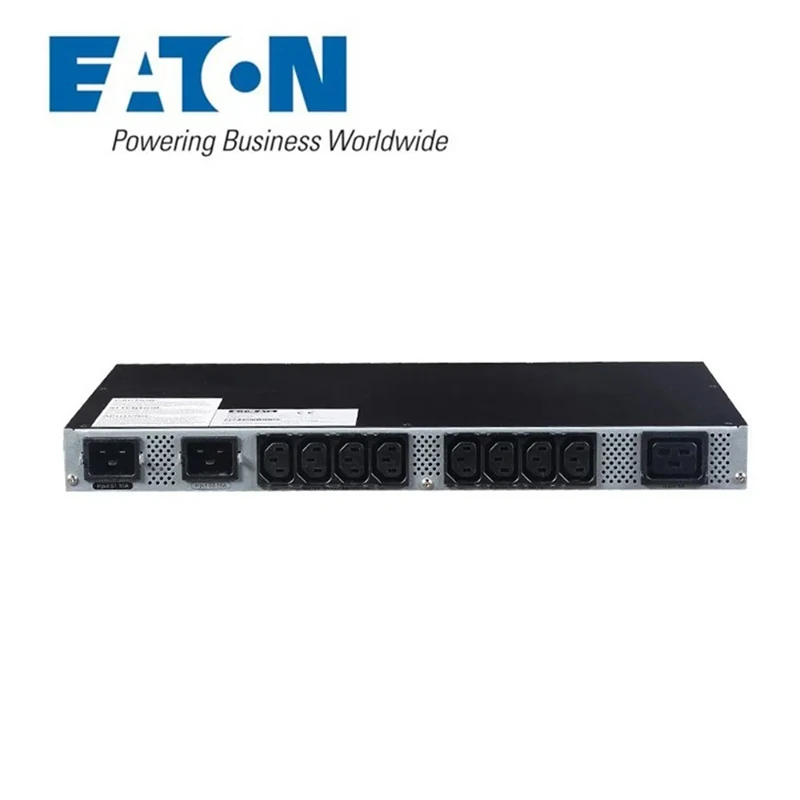

Output Connections	4 × GB (Chinese Standard) 10A + 1 × GB 16A + Terminal Block
Display & Management	LCD Display (Network Card optional for remote access)
Form Factor	1U Rackmount
Unit Dimensions (H × W × D)	43 × 430 × 250 mm
Unit Net Weight	3.5 kg
Packaging Dimensions	4.30 × 43.00 × 25.00 cm
Package Gross Weight	4.0 kg
Transport Package	Standard Carton

Wide Range of Applications

Due to its robust performance and instantaneous switching capabilities, the Eaton EATS16CN ATS is highly sensitive to power continuity and widely used in critical sectors:

Data Centers & Server Rooms: Providing redundancy for single-corded servers, switches, and routers.

Communication & Telecom Rooms: Ensuring zero downtime for broadcasting and networking hardware.

Industrial Automation: Protecting power industry automation systems and petrochemical industry power supply systems.

Smart Buildings: Safeguarding intelligent building automation, access control, and security systems.

Our Factory

apc back ups family bk500m ch 500va/300w standby ups with built in battery

Our Certifcate

Exhibition

Packaging & Shipping

Frequently Asked Questions (FAQ)

Q1: What is the transfer time of the Eaton EATS16CN ATS?

A: The standard switching time is ≤ 8ms. This ultra-fast transfer ensures that sensitive IT loads and servers will not experience power interruptions or reboots during the switchover.

Q2: What type of input and output sockets does this model feature?

A: The EATS16CN model is specifically designed with Chinese Standard (GB) connections. The input consists of 2 Terminal Blocks and 2 Standard 16A cables. The output includes four GB 10A sockets, one GB 16A socket, and a Terminal Block.

Q3: Does this Power Transfer Switch support remote monitoring?

A: Yes, users can monitor the device locally via the built-in LCD screen. For remote access, configuration, and management, a network card can be added (optional), or you can choose the ATS 16A Netpack Edition.

Q4: Will it damage my equipment if the two power sources are out of phase?

A: No. The Eaton ATS utilizes a safe “first-off-then-on” switching method, which guarantees the safety of the ATS and connected loads even when switching between different phases or out-of-sync power sources.

Q5: What is the physical size of the ATS, and is it rack-mountable?

A: Yes, it features a standard 1U rackmount design, saving valuable space in your server rack. The exact dimensions are 43 x 430 x 250 mm, with a light net weight of 3.5 kg.
