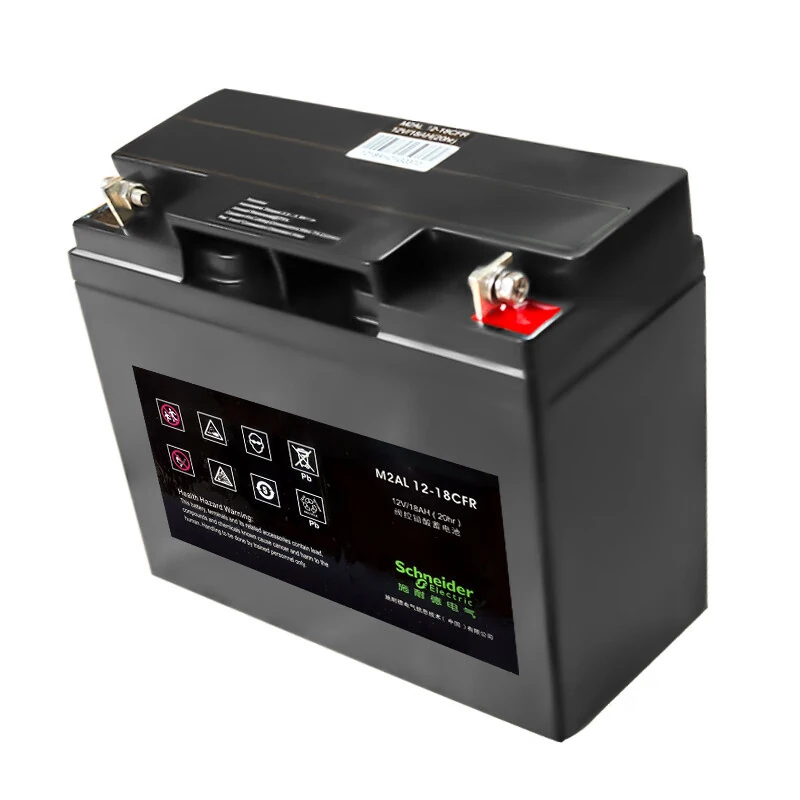

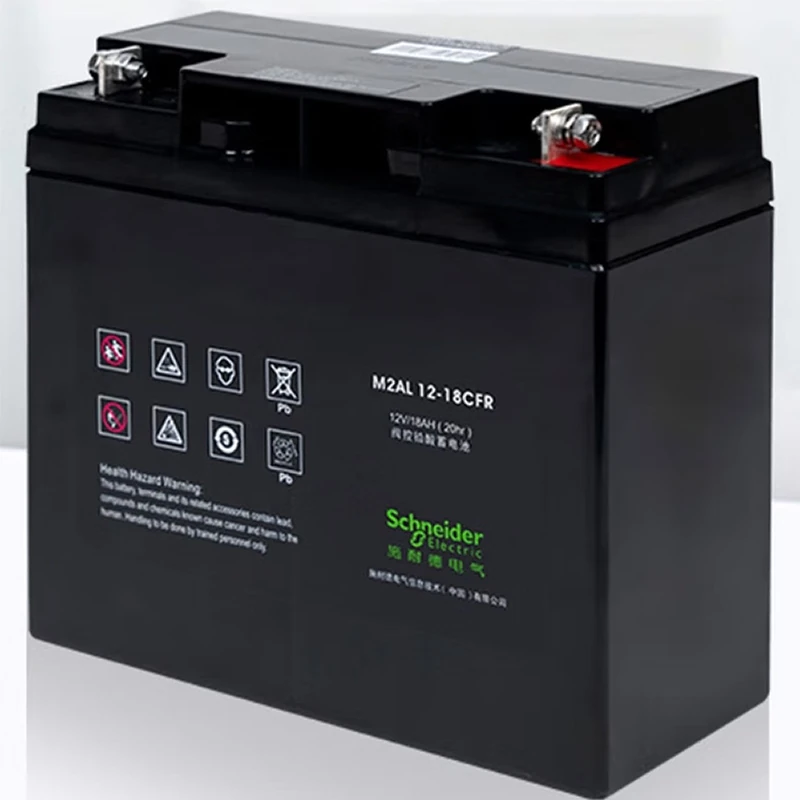

Schneider APC M2AL 12-18 CFR 12V 18Ah Lead-Acid Battery for UPS & DC Screen

Backed by Schneider Electric, a global expert in energy management and automation, the APC M2AL 12-18 CFR is a premium 12V 18Ah Valve-Regulated Sealed Lead-Acid (VRLA) Battery. Designed specifically for critical uninterruptible power supplies (UPS) and DC screens, this square-shaped fixed installation battery delivers a stable medium discharge rate. Featuring a robust 10-year design life and built with a UL94-V0 fully flame-retardant shell, the M2AL 12-18 CFR ensures maximum safety, efficiency, and sustainability for your infrastructure, data centers, and communication systems.

Key Functions and Features

High Safety & Premium Build

Flame-Retardant Casing: Adopts a UL94-V0 grade fully flame-retardant shell, providing top-tier fire resistance and operational safety in high-risk environments.

Valve-Regulated Technology: The sealed lead-acid (VRLA) design guarantees no acid leakage, ensuring safe and clean operation.

Outstanding Performance & Longevity

10-Year Design Life: Engineered for exceptional durability, delivering reliable power protection for up to a decade under optimal conditions.

Zero Maintenance: Absolutely no maintenance is required during its entire operational lifetime.

Low Self-Discharge: Retains capacity for longer periods when not in use, making it highly reliable for standby applications.

Superior Electrical Characteristics

High Current Discharge: Exhibits excellent high current discharge performance, perfect for UPS systems requiring immediate surge power.

Low Internal Resistance: The M2AL 12-18 model boasts a low internal resistance of ≤16.2mΩ, ensuring efficient energy transfer and fast recharge capabilities.

Strict Industry Compliance

Complies with GB/T 19638.2-2005 “Stationary Valve-Regulated Sealed Lead-Acid Batteries” standard.

Complies with YD/T799-2010 “Valve-regulated Lead-acid Batteries for Communication Use” standard.

Technical Specifications (M2AL CFR Series)

Specifications	M2AL 12-18 CFR	M2AL 12-26	M2AL 12-38	M2AL 12-65	M2AL 12-80	M2AL 12-100
Rated Voltage (V)	12V	12V	12V	12V	12V	12V
Capacity (AH) C20	18 Ah	26 Ah	38 Ah	65 Ah	80 Ah	100 Ah
Internal Resistance	≤ 16.2 mΩ	≤ 14 mΩ	≤ 9 mΩ	≤ 6.5 mΩ	≤ 6.6 mΩ	≤ 4.6 mΩ
Terminal Type	M5	M5	M6	M6	M6	M8
Discharge Rate	Medium	Medium	Medium	Medium	Medium	Medium
Electrolyte Type	Acid (VRLA)	Acid (VRLA)	Acid (VRLA)	Acid (VRLA)	Acid (VRLA)	Acid (VRLA)
Length (mm)	181.5	166	197	325	260	329
Width (mm)	77	175	165	167	168	174
Height (mm)	167.5	125	170	174	208	215
Net Weight (kg)	5.4	7.8	11.6	19.2	22.3	28.2

Wide Range of Applications

Thanks to its robust build and excellent discharge capabilities, the Schneider APC M2AL 12-18 CFR battery is the trusted power storage choice for:

Uninterruptible Power Supplies (UPS): Providing critical backup power for servers, data centers, and IT infrastructure.

DC Screen Systems: Ensuring reliable direct current supply for substations and power plants.

Communication Equipment: Backing up telecommunication base stations and networking hardware (Compliant with YD/T799-2010).

Industrial Automation: Supporting control systems, emergency lighting, and security alarms.

Our Factory

apc back ups family bk500m ch 500va/300w standby ups with built in battery

Our Certifcate

Exhibition

Packaging & Shipping

Frequently Asked Questions (FAQ)

Q1: Does the APC M2AL 12-18 CFR require regular maintenance or adding water?

A: No. It is a Valve-Regulated Sealed Lead-Acid (VRLA) battery, meaning absolutely no maintenance or water refilling is required during its entire operational lifetime.

Q2: How safe is the casing of this battery?

A: It is extremely safe. The battery adopts a UL94-V0 grade fully flame-retardant shell, which is the highest standard for plastic flammability, preventing fire hazards in mission-critical environments.

Q3: What is the expected lifespan of this Schneider APC battery?

A: Under optimal operating conditions and proper charging, the M2AL CFR series features a premium 10-year design life.

Q4: What are the physical dimensions, weight, and terminal type for the 18Ah model?

A: The M2AL 12-18 CFR measures 181.5 x 77 x 167.5 mm (L×W×Total Height), has a net weight of 5.4 kg, and utilizes an M5 terminal.

Q5: What is the HS code for importing this lead-acid battery?

A: The official HS Code for customs clearance and export/import is 8507200000.
